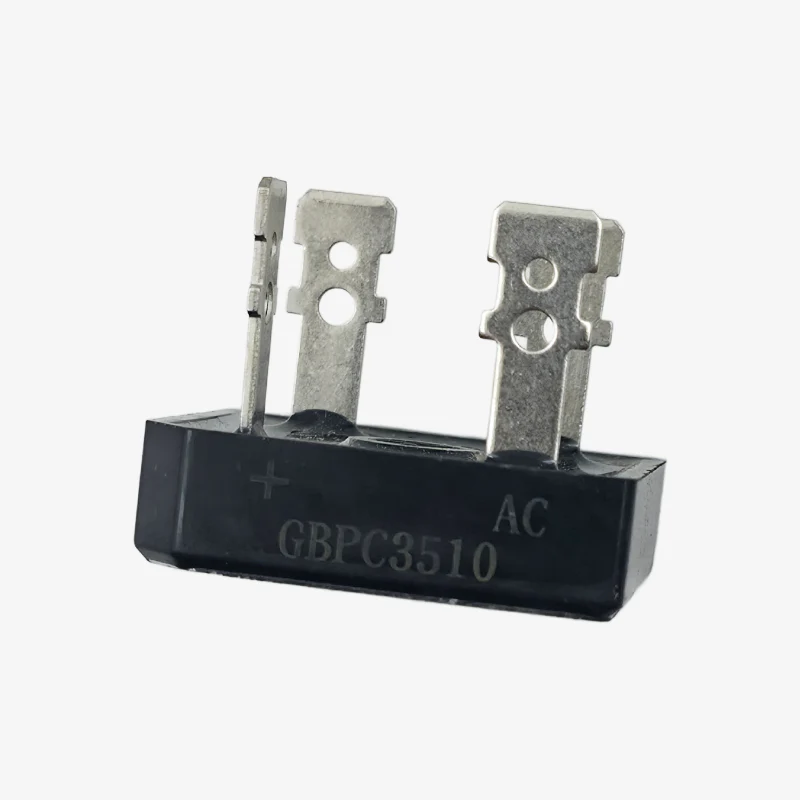

The GBPC3510 Bridge Rectifier 35A is a robust through-hole rectifier designed for high-current AC to DC conversion in industrial and power electronics. Constructed with a glass-passivated die and molded plastic body, it ensures excellent thermal stability and surge endurance. Ideal for power supplies, inverters, UPS systems, and motor control circuits.

Features:

High current handling capability up to 35A
Excellent surge tolerance of 400A
Low forward voltage drop for efficient power conversion
Glass-passivated junction with isolated epoxy case for heat dissipation
Suitable for screw mounting and high-power PCB applications

Specifications:

Average Forward Rectified Current (IF(AV)): 35A (TC = 50°C)
Peak Repetitive Reverse Voltage (VRRM): 1000V
Working Peak Reverse Voltage (VRWM): 1000V
DC Blocking Voltage (VDC): 1000V
RMS Reverse Voltage (VR(RMS)): 700V
Peak Forward Surge Current (IFSM): 400A (8.3ms half-sine wave)
Forward Voltage (VF): 1.1V at IF = 17.5A
Reverse Current (IR) at 25°C: 5µA
Reverse Current (IR) at 125°C: 500µA
Typical Junction Capacitance (Cj): 300pF
Thermal Resistance Junction-to-Case (RθJC): 1.4°C/W
Operating Junction Temperature (TJ): -65°C to +150°C
Storage Temperature (TSTG): -65°C to +150°C

Package Includes:

1 × GBPC3510 Bridge Rectifier 35A

Price

Collections

Diodes

BPW34 Silicon PIN Photodiode

SR5100 100V 5A Schottky Barrier Rectifier Diode - DO-201AD

RL107 General Purpose Silicon Rectifier Diode 1A

GBPC3510 35A 1000V Bridge Rectifier Diode Module

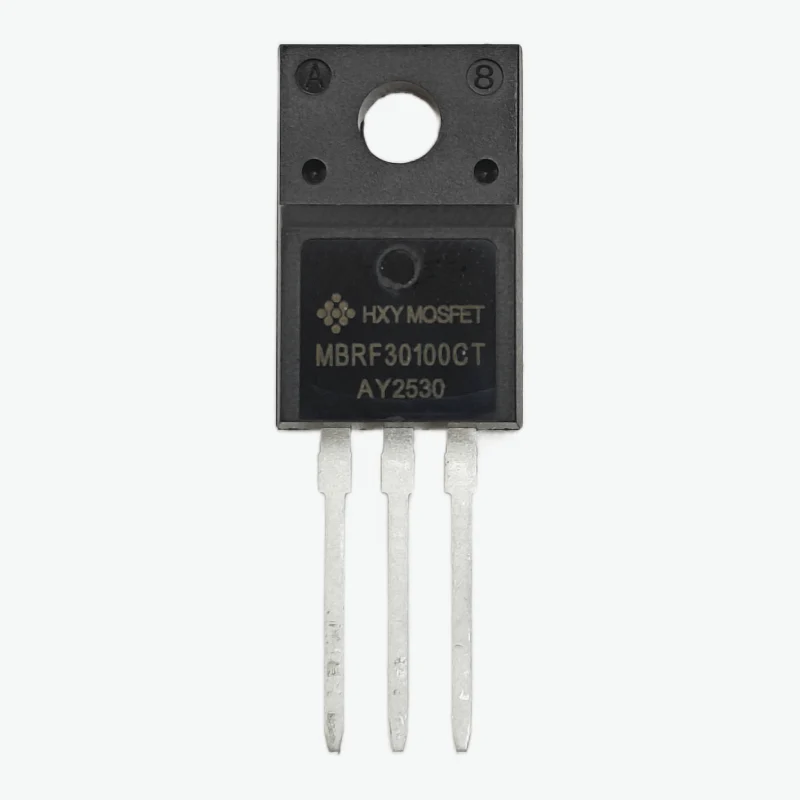

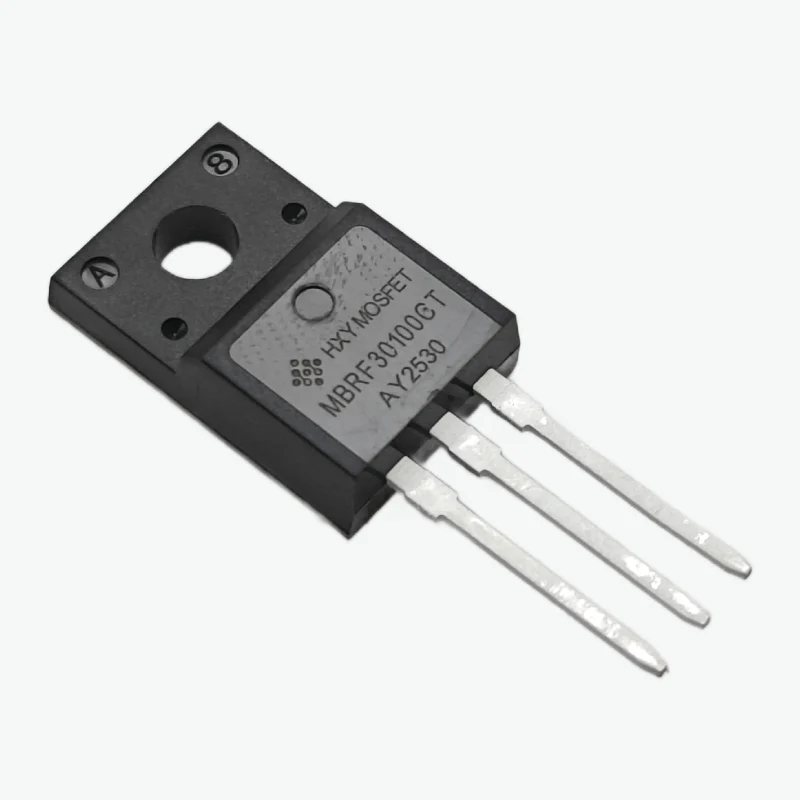

100V 30A Dual Schottky Rectifier (HMBRF30100CT-HXY) - TO-220F DIP Package
