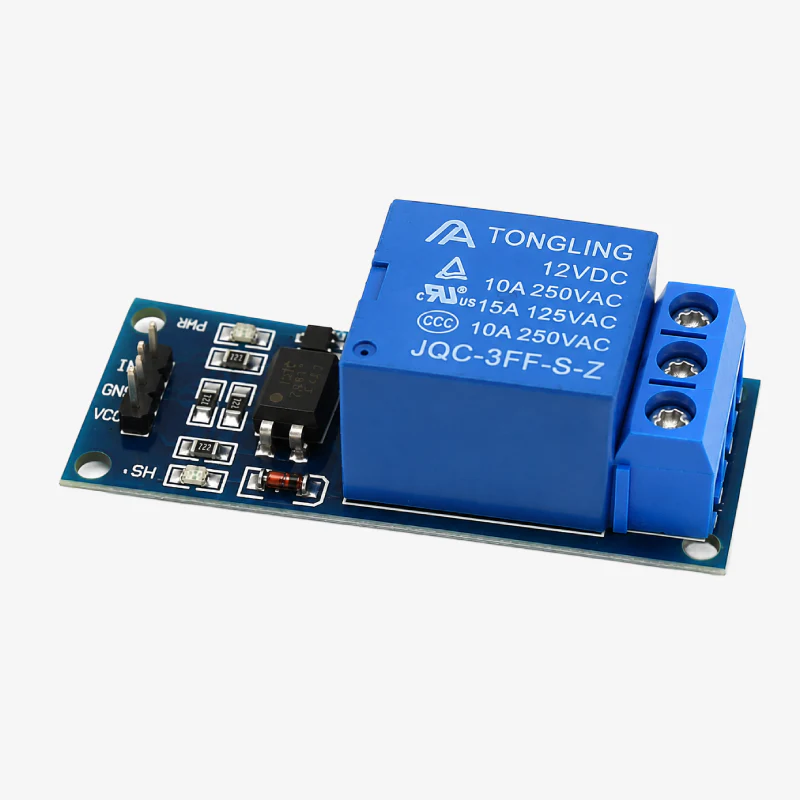

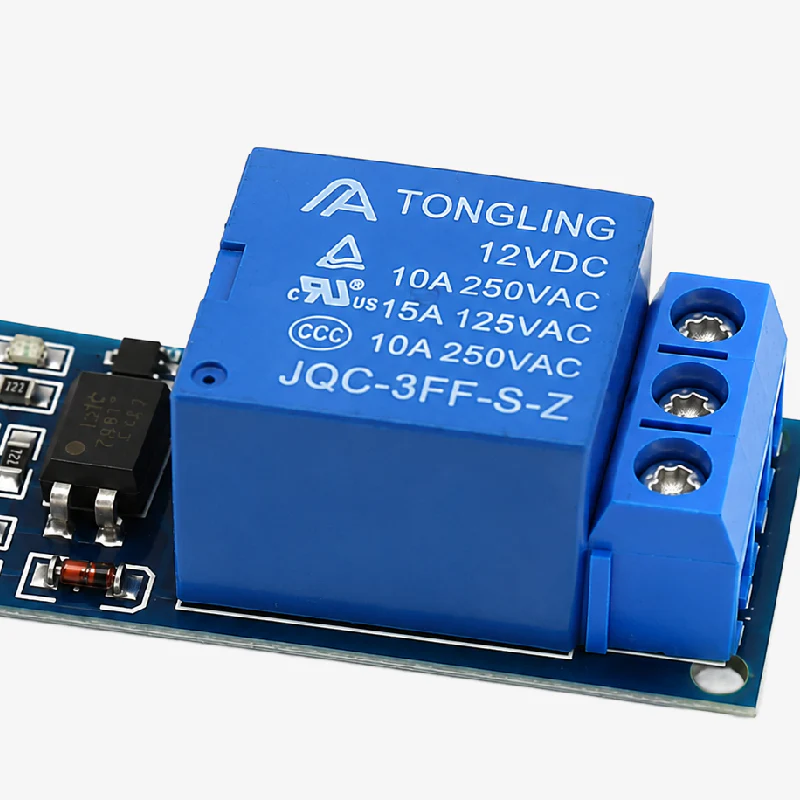

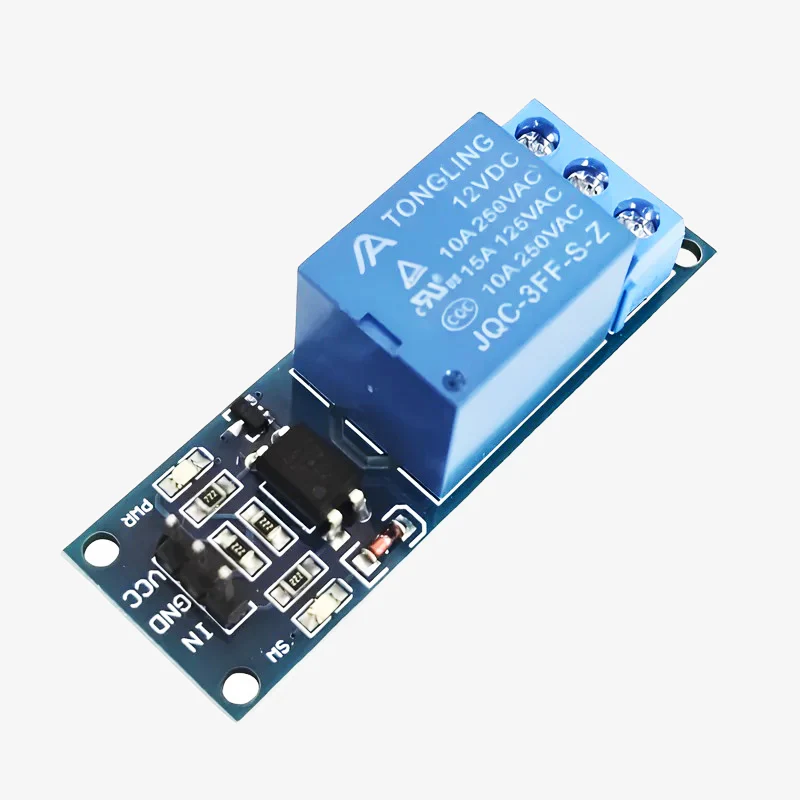

1 Channel 12V 10A Relay Module with Optocoupler

1 Channel 12V Relay Module with Optocoupler is designed for reliable switching of AC and DC loads using microcontrollers, PLCs, and embedded systems. Featuring optocoupler isolation, LED status indication, and a high-current relay, it provides safe and efficient control for automation, industrial, and DIY electronics projects.

Features:

1. Single Channel Relay Design
2. 12V DC Relay Operation
3. Optocoupler Isolation Protection
4. 10A High Current Switching Capacity
5. Compatible with Arduino, Raspberry Pi, and PLC Systems
6. LED Status Indicator
7. Low Power Control Circuit
8. Fast Switching Response
9. Compact PCB Design
10. Suitable for AC and DC Load Control

Specifications:

Parameter	Value
Product Type	Relay Module
Channels	1
Relay Voltage	12V DC
Trigger Voltage	12V DC
Contact Rating	10A @ 250V AC
Contact Rating (DC)	10A @ 30V DC
Trigger Current	15 ~ 20mA
Optocoupler Isolation	Yes
Coil Resistance	400Ω (Typical)
Switching Time	<10ms
Operating Temperature	-10°C to +60°C
Length	53 mm
Width	18 mm
Height	18.5 mm
Weight	16 g



Also Check These:-

12V 8 Channel Relay Module with Optocoupler

16 Channel Relay 12V Module

4-Channel 12V Relay Module with Optocoupler

PCB For 1 Channel Relay Module with Optocoupler Input

Package Includes:

1 x 1 Channel 12V Relay Module with Optocoupler
