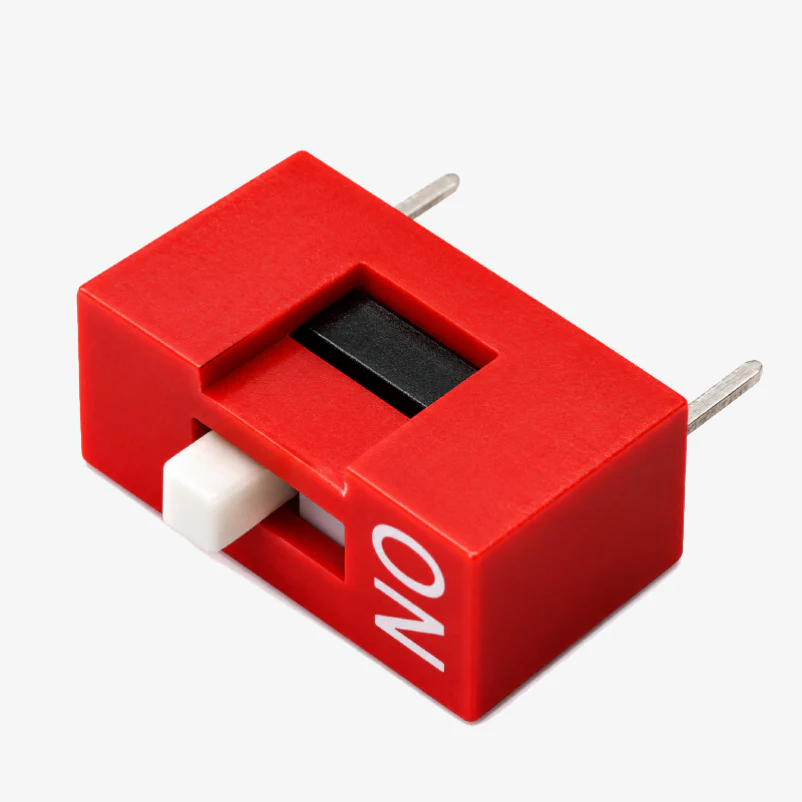

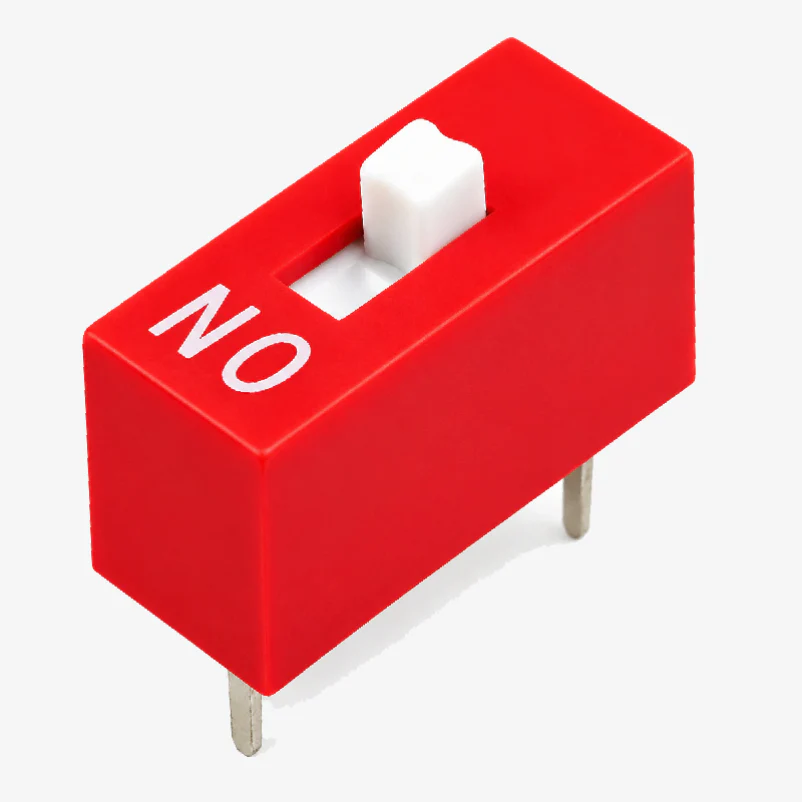

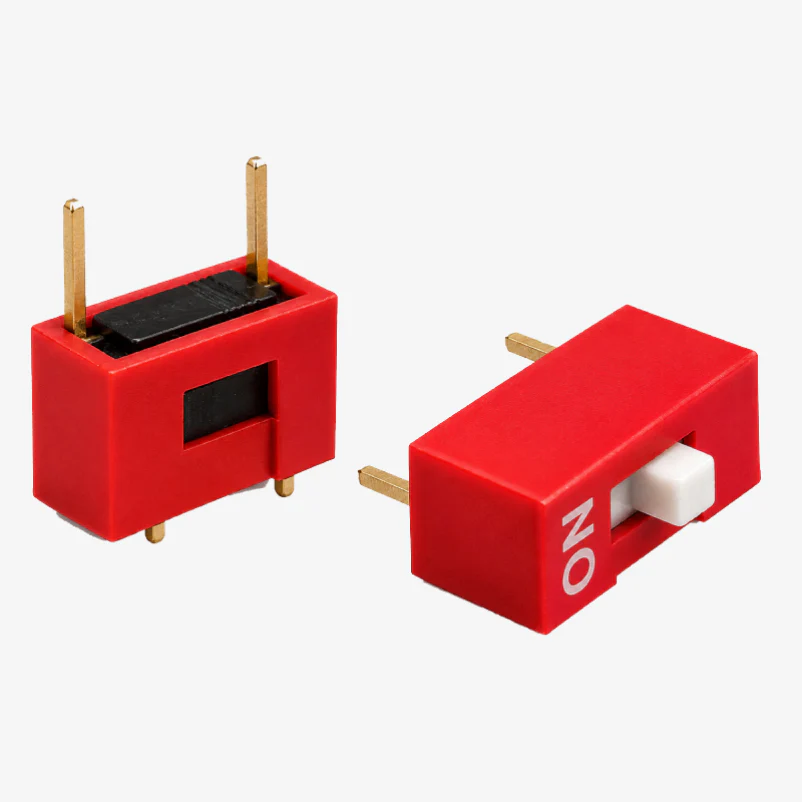

1 Position DIP Switch

1 Position DIP Switch is designed for reliable manual configuration and signal selection in electronic circuits. Ideal for PCB applications, embedded systems, and DIY electronics projects requiring compact switching solutions.

1 Position DIP Switch Datasheet

Features:

1. 1 Position DIP Switch
2. Surface Mount Design
3. Gold Plated Brass Terminals
4. Compact and Durable Construction
5. Reliable Switching Performance
6. High Mechanical Life
7. Suitable for PCB and Embedded Applications

Specifications:

Parameter	Value
Product Type	DIP Switch
Positions	1
Mount Type	Surface Mount
Terminal Material	Brass with Gold Plating
Contact Rating	100mA 50VDC
Contact Resistance	500mΩ Max
Insulation Resistance	100MΩ Min (500VDC)
Dielectric Strength	500VAC / 1 Minute
Operating Temperature	-25°C to +85°C
Mechanical Life	≥100,000 Cycles
Electrical Life	2,000 Cycles per Position
Color	Red

Also Check These Products:-

3 Position DIP Switch

5 Position DIP Switch

7 Position DIP Switch

9 Position DIP Switch

6 Position DIP Switch

4 Positions DIP Switch

Package Includes:

1 x 1 Position DIP Switch
