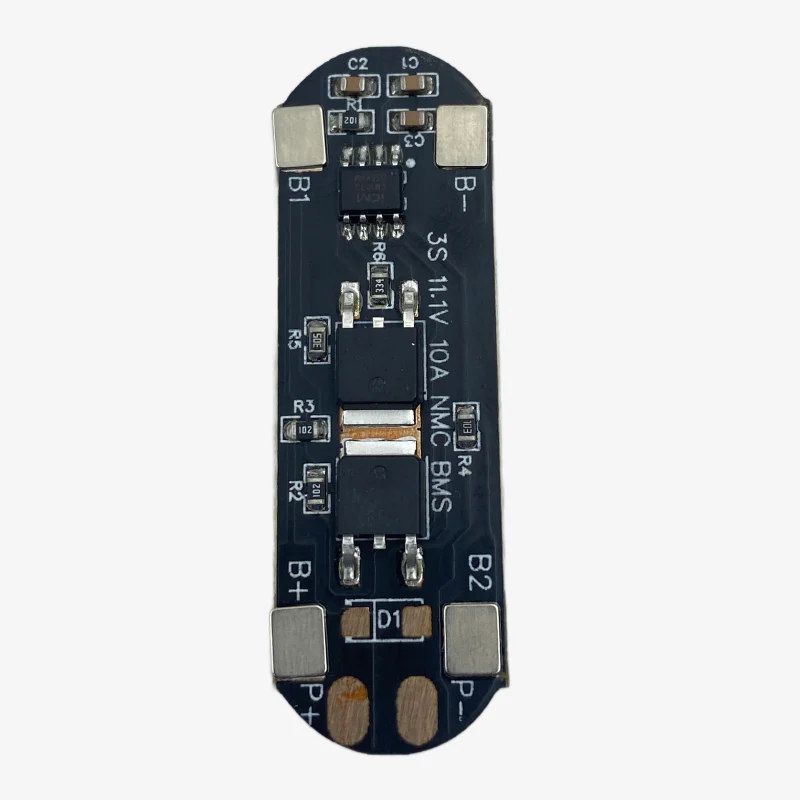

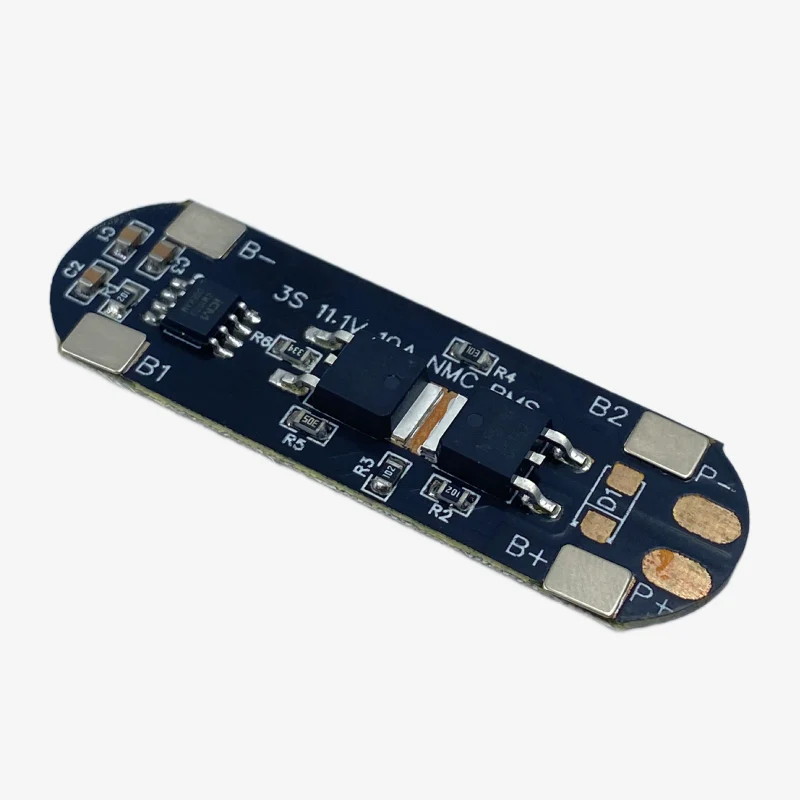

3S 10A Lithium Battery Protection BMS Module for 11.1V NMC cells

3S 10A Lithium Battery Protection BMS Module for 11.1V NMC Cells is designed to provide reliable protection and balancing for 3-series lithium battery packs. Ideal for 11.1V NMC battery applications, DIY battery packs, portable power systems, and energy storage projects.

Features:

1. 3S Lithium Battery Protection Module
2. Suitable for 11.1V NMC Battery Packs
3. Over-Charge Protection
4. Over-Discharge Protection
5. Over-Current and Short Circuit Protection
6. Compact and Lightweight Design
7. Delayed Self-Recovery Function

Specifications:

Parameter	Value
Model	HX-3S-01
Battery Type	Lithium-ion NMC
Supported Cells	3S
Full Charge Voltage	12.6V – 13V
Maximum Operating Current	6 – 8A
Maximum Transient Current	9 – 13A
Over-Voltage Protection	4.25V – 4.35V ±0.05V
Over-Current Protection	Yes
Under-Voltage Protection	Yes
Short Circuit Protection	Yes (Delayed Self-Recovery)
Internal Resistance	100mΩ
Quiescent Current	30µA
Operating Temperature	-40°C to +50°C
Storage Temperature	-40°C to +80°C
Effective Life	>30000 Hours
Dimensions	50 × 16 × 2 mm
Weight	12 g

Also Check These Products:-

2S 15A 7.4V NMC Battery Protection Board BMS Module

3S 5A Lithium Battery Protection BMS Module for 3.7V NMC cells

4S 10A Li-ion Battery Protection BMS Module for 3.7V NMC Cells

3S BMS - 20A Li-ion Battery Protection Board for 3.7V NMC cells

Package Includes:

1 x 3S 10A Lithium Battery Protection BMS Module for 11.1V NMC Cells
