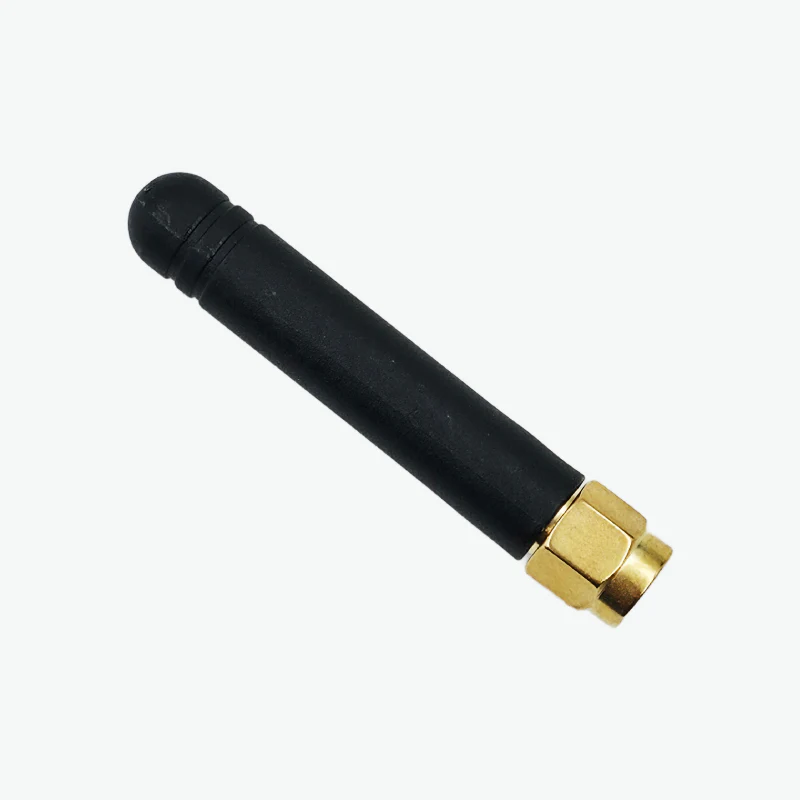

AntennaHome AH1G.101 433MHz 1.5dBi H50 Rubber Antenna SMA-J with Connector

The AntennaHome AH1G.101 433MHz 1.5dBi H50 Rubber SMA-J Antenna is a compact and durable antenna designed for ISM band communication systems. Its rubberized housing and SMA-J connector ensure stable performance and easy installation, making it ideal for LoRa modules, remote control systems, and wireless data transmission applications.

Features:

1. Durable rubber antenna design for long-lasting performance

2. Optimized for 433MHz ISM band communication

3. Provides stable and reliable signal transmission

4. Vertical omni-directional radiation pattern for wide coverage

5. SMA-J connector for easy and secure mounting

Specifications:

• Model: AH1G.101
• Frequency: 433 MHz

• Impedance: 50Ω

• VSWR: ≤2.5

• Gain: 1.5 dBi

• Polarization: Vertical / Omni

• Mounting Type: SMA Connector

• Connector Type: SMA-J

• Material: Copper / ABS

• Color: Black

• Size: 8 × 50 mm

• Weight: 5 g

• Operating Temperature: -40°C to +85°C


Package Includes:

1 × 433MHz 1.5dBi H50 Rubber SMA-J Antenna
