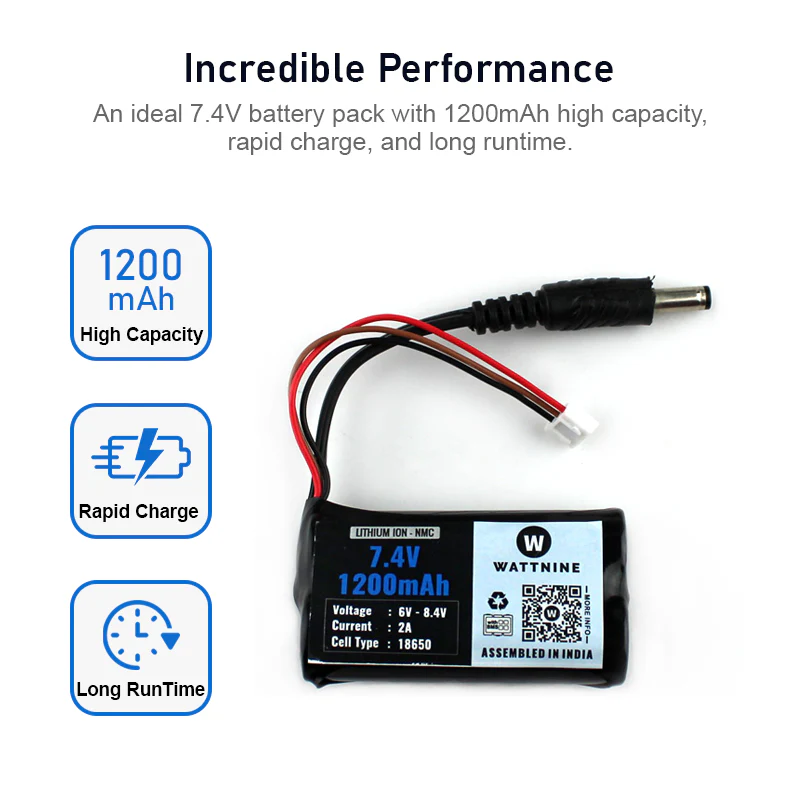

7.4V 1200mAh Rechargeable Lithium Battery Pack with Warranty (Includes BMS & Balance Pin) - 2S 1P

This is a 2S 7.4V 1200mAh Lithium Battery Pack built using 1200mAh 18650 cells. All the cells are connected in series and thus provide a nominal output voltage of 7.4 V volts. The battery pack consists of an in-built BMS which ensures safe operation of the cells during charging and discharging.

  Datasheet / Specification

1. B3 Pro Charger for Li-ion - 1Hr 30Min.



Specification

• Charging Voltage- 8.4V
• Charging Current- 600mA
• Nominal Pack Voltage- 7.4V
• Discharge Current- Tested for 500mA, 1A
• Max. Discharge Current - 1.2A

Protection (Included BMS)

• Upper charge cut-off threshold : 8.4V
• Lower cutoff threshold : 5.5V
• Short Circuit Protection

 Applications:

• Small scale UPS Battery
• Battery for GPS Tracking - Vehicle Tracking - Asset Tracking
• Wifi Modem or Router Battery for backup
• PSP
• Industrial Machines
• Emergency Lights
• Robotics and RC cars
• Music Players and Audio Systems
