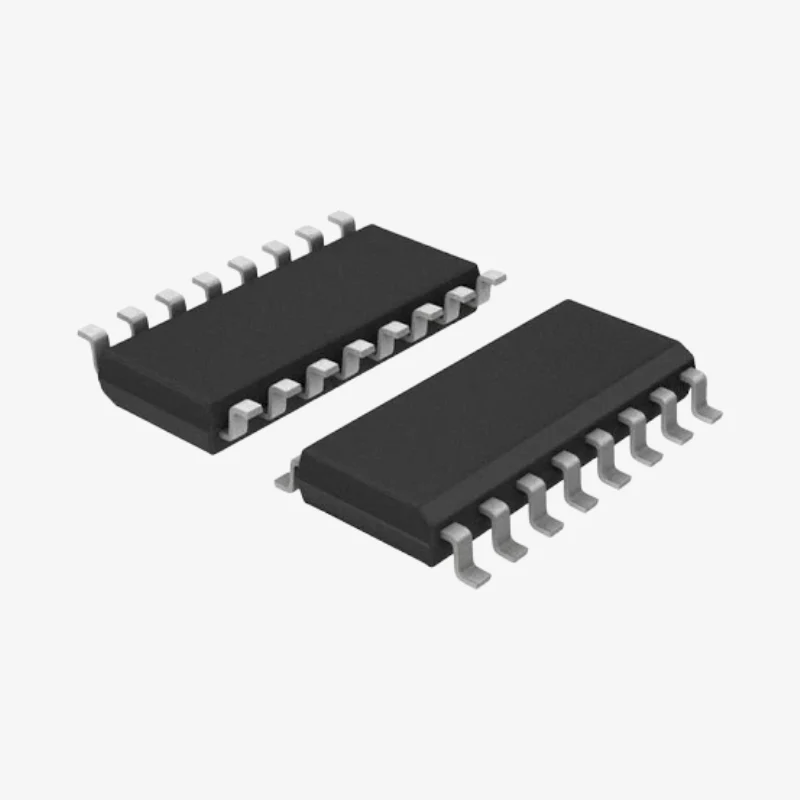

74HC595 8-Bit Shift Register IC(NXP) - SOIC-16 SMD Package
The 74HC595 is an 8-bit serial-in, serial or parallel-out shift register with a storage register and 3-state outputs. It is used to expand the number of output pins of a microcontroller or microprocessor in digital circuits. This IC allows cascading multiple 74HC595 chips to control large sets of outputs, such as LEDs or displays, with only a few I/O pins. The SOIC-16 surface-mount package makes it suitable for compact and automated PCB assemblies.
Features of 74HC595 8-Bit Shift Register IC:
- 8-bit serial-in, parallel-out shift register
- Integrated 8-bit storage register with 3-state outputs
- Supports cascading for multiple ICs
- Fast switching speed for high-frequency operations
- Compatible with TTL and CMOS logic levels
- Low power consumption design
- SOIC-16 SMD package for compact applications
Specifications of 74HC595 IC:
- Model: 74HC595
- Function: 8-bit serial-in, serial/parallel-out shift register
- Output Type: 3-state
- Supply Voltage Range: 2V to 6V
- Maximum Clock Frequency: 100 MHz
- Package: SOIC-16 – SMD
- Operating Temperature Range: -40°C to +125°C
- Manufacturer: NXP
Package Includes:
1 × 74HC595 8-Bit Shift Register IC – SOIC-16 – SMD Package
