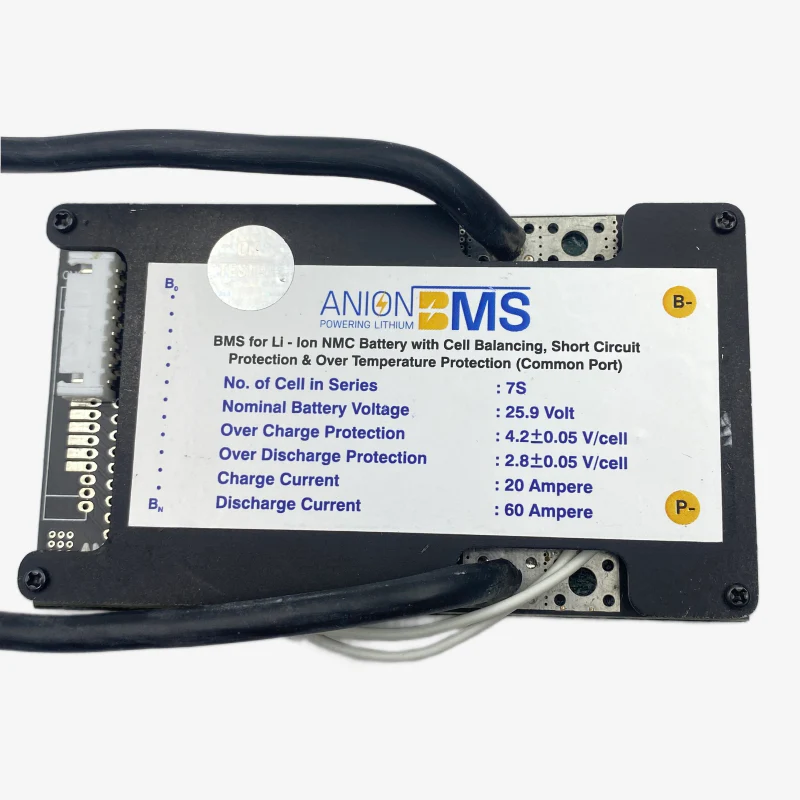

7S 24V/25.9V 60A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)
7S 24V/25.9V 60A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port) is a high-performance battery management system designed to protect and optimize 7 series lithium-ion battery packs. It provides essential protection functions such as overcharge, over-discharge, overcurrent, and short circuit protection. With built-in cell balancing and common port design, it ensures uniform charging and discharging of cells, improving battery life and performance. This BMS is ideal for electric vehicles, energy storage systems, and high-power battery applications.
(Common Port) = Same terminal used for BOTH charging and discharging
Features:
- Designed for 7S lithium ion NMC battery packs
- Supports high current up to 60A for demanding applications
- Built in cell balancing for improved battery lifespan
- Common port design for charge and discharge
- Provides overcharge, over discharge and short circuit protection
- Overcurrent protection for safe battery operation
- High efficiency and stable performance
- Compact design for easy integration
Specifications:
- Product Type: Battery Management System
- Battery Type: Lithium Ion NMC
- Series Configuration: 7S
- Nominal Voltage: 24V
- Max Continuous Current: 60A
- Balancing Function: Yes
- Balancing Current: 40mA to 60mA
- Overcharge Protection Voltage: 4.25V ±0.05V per cell
- Over Discharge Protection Voltage: 2.7V ±0.1V per cell
- Overcurrent Protection: Yes
- Short Circuit Protection: Yes
- Port Type: Common Port
Applications:
- Lithium ion battery pack protection systems
- Electric vehicles and e bikes battery management
- Solar energy storage and backup systems
- Power tools and high current battery packs
- DIY battery pack building and repair
- Industrial battery management systems
Also Check This Out:-
13S 48V 20A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)
10S 36V 80A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)
10S 36V 60A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)
7S 24V 80A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)
Package Includes:
1 × 7S 24V 60A BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)
