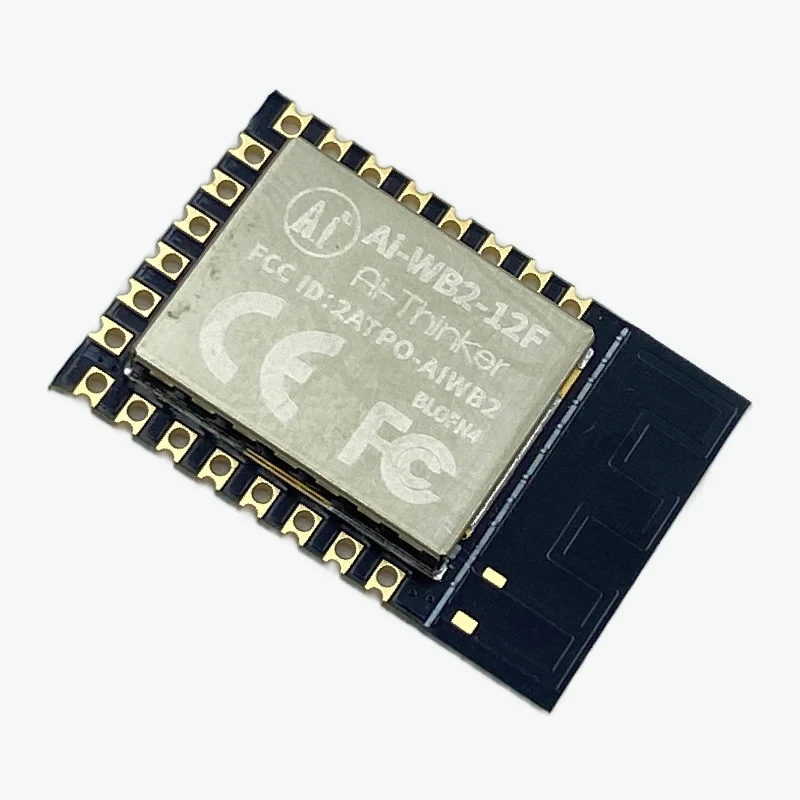

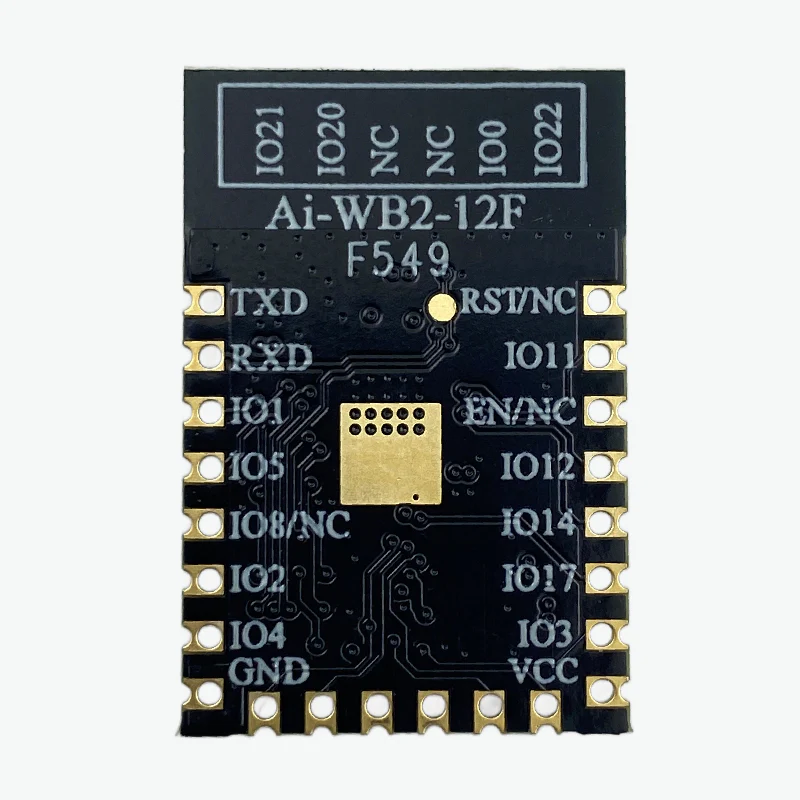

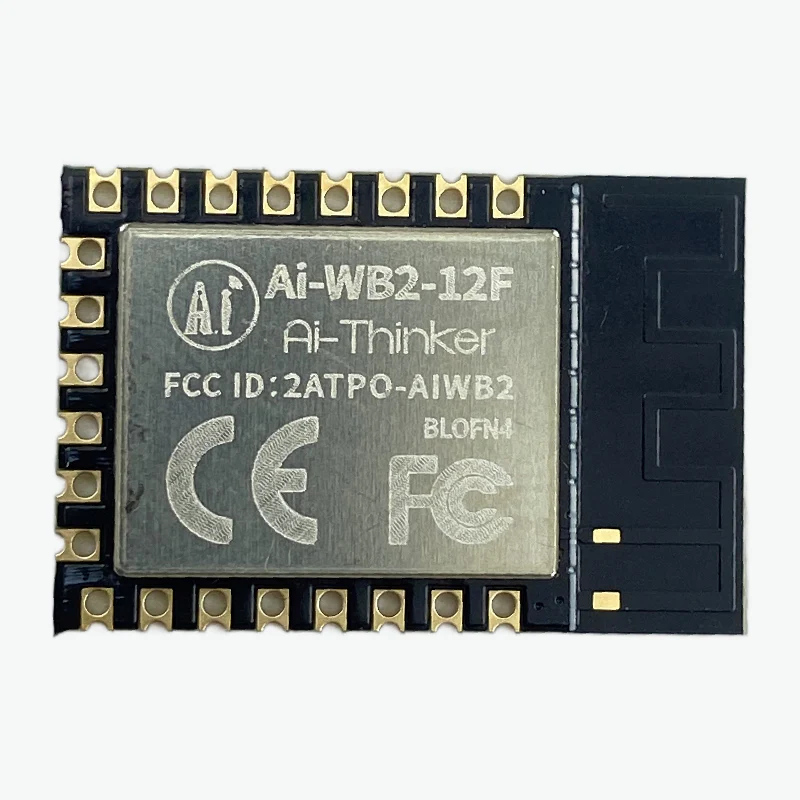

Ai-Thinker Ai-WB2-12F WiFi + BLE Module

Ai-Thinker Ai-WB2-12F WiFi + BLE Module is designed for compact and low-power wireless connectivity with integrated WiFi and Bluetooth 5.0. Ideal for IoT devices, smart home systems, and embedded communication applications.

Ai-Thinker Ai-WB2-12F WiFi + BLE Module Datasheet

Features:

1. Supports WiFi 802.11 b/g/n
2. Bluetooth 5.0 BLE and Mesh Support
3. High Security with AES, SHA, TRNG, and PKA
4. Supports Multiple Interfaces (UART, SPI, I2C, PWM, ADC, GPIO)
5. Low Power Consumption with Deep Sleep Mode
6. Onboard PCB Antenna
7. Supports AT Commands and Secondary Development
8. Compatible with Windows and Linux Development

Specifications:

Parameter	Value
Model	Ai-WB2-12F
Package	SMD-22
Dimensions	24.0 × 16.0 × 3.1 mm
Wireless	WiFi + Bluetooth 5.0
WiFi Standard	802.11 b/g/n
WiFi Frequency	2400 – 2483.5 MHz
WiFi Speed	Up to 72.2 Mbps
Bluetooth	BLE 5.0 + Mesh
Operating Voltage	2.7 – 3.6V
Flash	4MB (Default), up to 16MB
RAM	276KB
Interfaces	UART, GPIO, ADC, PWM, I2C, SPI
IO Pins	15
UART Default Baud Rate	115200 bps
Deep Sleep Current	12µA
Security	WPS/WEP/WPA/WPA2/WPA3
Antenna	PCB Onboard
Operating Temperature	-40°C to +85°C



Explore AI Thinker Modules featuring ESP8266 and ESP32 chipsets with WiFi, Bluetooth, and RF capabilities, perfect for IoT development, wireless communication, automation systems, and embedded engineering projects.

Package Includes:

1 x Ai-Thinker Ai-WB2-12F WiFi + BLE Module
