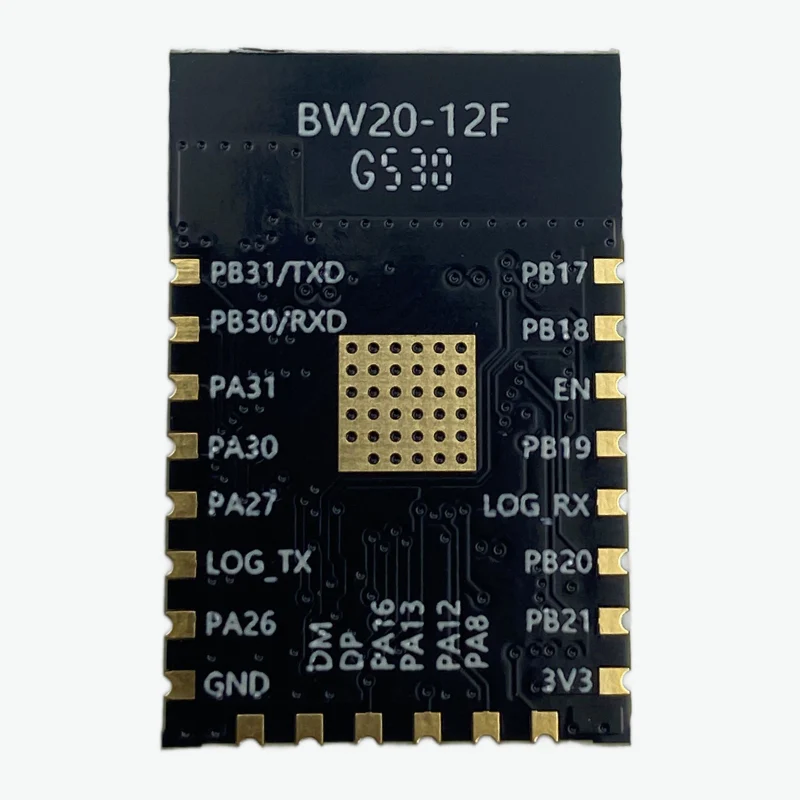

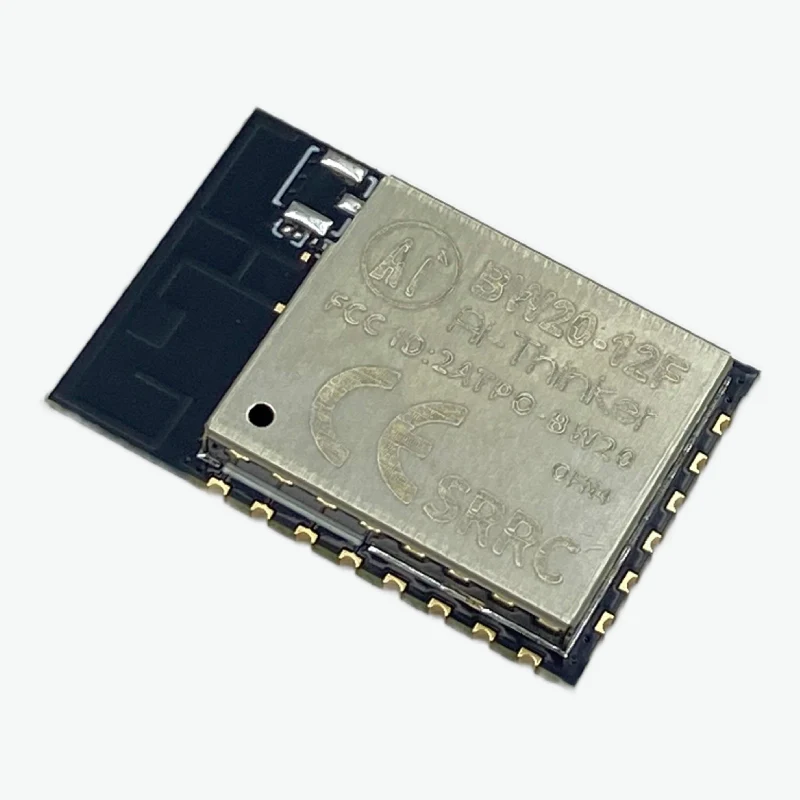

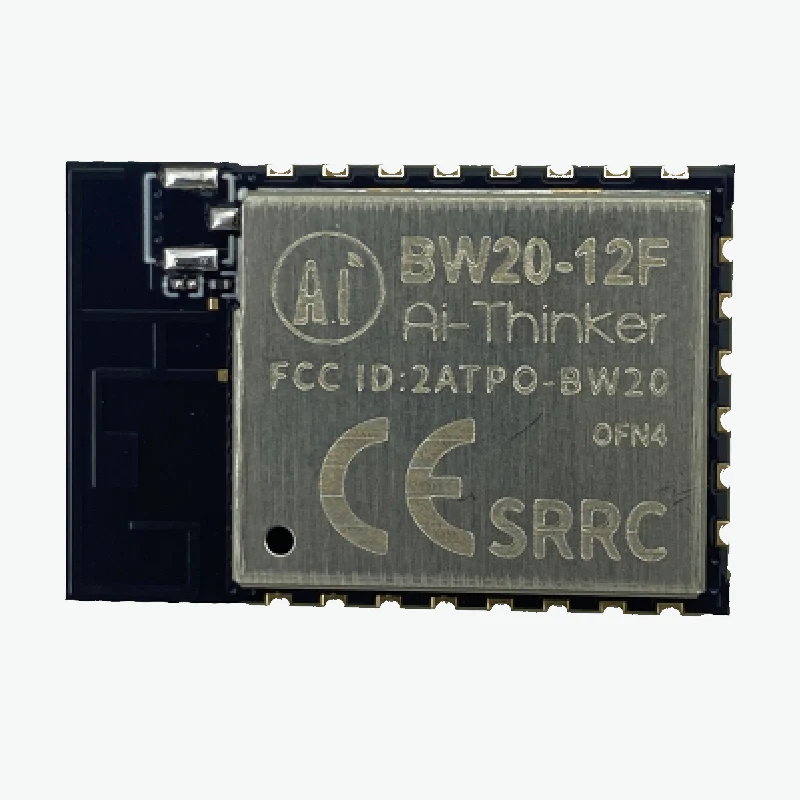

Ai-Thinker BW20-12F WiFi + BLE Module

Ai-Thinker (BW20-12F) WiFi + BLE Module is designed for high-performance wireless connectivity with dual-band WiFi and Bluetooth 5.0 support. Ideal for IoT devices, smart home systems, and advanced embedded networking applications.

Ai-Thinker PB-03F WiFi + BLE Module Datasheet

Features:

1. Supports Dual-Band WiFi (2.4GHz & 5GHz)
2. Bluetooth 5.0 with Long Range Support
3. Integrated Dual-Core MCU up to 330MHz
4. Supports 802.11 a/b/g/n Protocols
5. HT20 / HT40 Mode Support
6. High Power Bluetooth Mode
7. Hardware Encryption Engine
8. 17 Flexible GPIO Interfaces
9. Shared Antenna for WiFi and Bluetooth
10. Supports Linux-Based Development

Specifications:

Parameter	Value
Model	BW20-12F
Wireless	WiFi + BLE 5.0
WiFi Standard	802.11 a/b/g/n
WiFi Bands	2.4GHz / 5GHz
Bluetooth	BLE 5.0
Processor	Dual-Core MCU
Max Frequency	Up to 330 MHz
IO Pins	17
Encryption	Hardware Encryption Engine
Antenna	Shared PCB Antenna
Development Support	Linux



Explore AI Thinker Modules featuring ESP8266 and ESP32 chipsets with WiFi, Bluetooth, and RF capabilities, perfect for IoT development, wireless communication, automation systems, and embedded engineering projects.

Package Includes:

1 x Ai-Thinker (BW20-12F) WiFi + BLE Module
