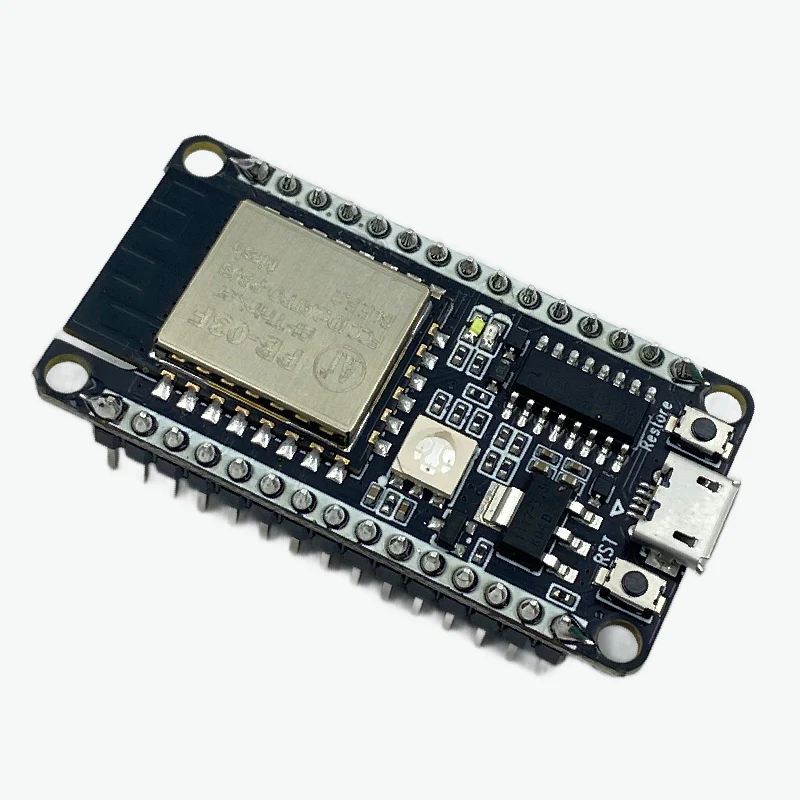

Ai-Thinker PB-03F Wi-Fi + Bluetooth 5.0 IoT Development Board Kit

Ai-Thinker PB-03F Wi-Fi + Bluetooth 5.0 IoT Development Board is designed for compact and low-power wireless applications with integrated WiFi and BLE support. Ideal for IoT devices, smart modules, and embedded communication projects.

Ai-Thinker PB-03F Wi-Fi + Bluetooth 5.0 IoT Development Board Kit Datasheet

Features:

1. Compact SMD-22 Package
2. Supports Bluetooth 5.2 with Multiple Data Rates
3. Low Power Design with Deep Sleep <1µA
4. Multiple Communication Interfaces
5. Supports FOTA and Serial Firmware Upgrade
6. Easy Development with AT Commands
7. Suitable for Embedded and IoT Applications

Specifications:

Parameter	Value
Model	PB-03F
Package	SMD-22
Dimensions	24.0 × 16.0 × 3.1 mm
Bluetooth	BLE 5.2
Data Rates	125Kbps / 500Kbps / 1Mbps / 2Mbps
SRAM	64KB
Flash	256KB
ROM	96KB
Interfaces	UART, GPIO, ADC, PWM, I2C, SPI, PDM, DMA
Sleep Current	<1µA
Firmware Upgrade	FOTA  Serial Upgrade
Development Support	Windows Environment

Explore AI Thinker Modules featuring ESP8266 and ESP32 chipsets with WiFi, Bluetooth, and RF capabilities, perfect for IoT development, wireless communication, automation systems, and embedded engineering projects.

Package Includes:

1 x Ai-Thinker (PB-03F) Wi-Fi + Bluetooth 5.0 IoT Development Board
