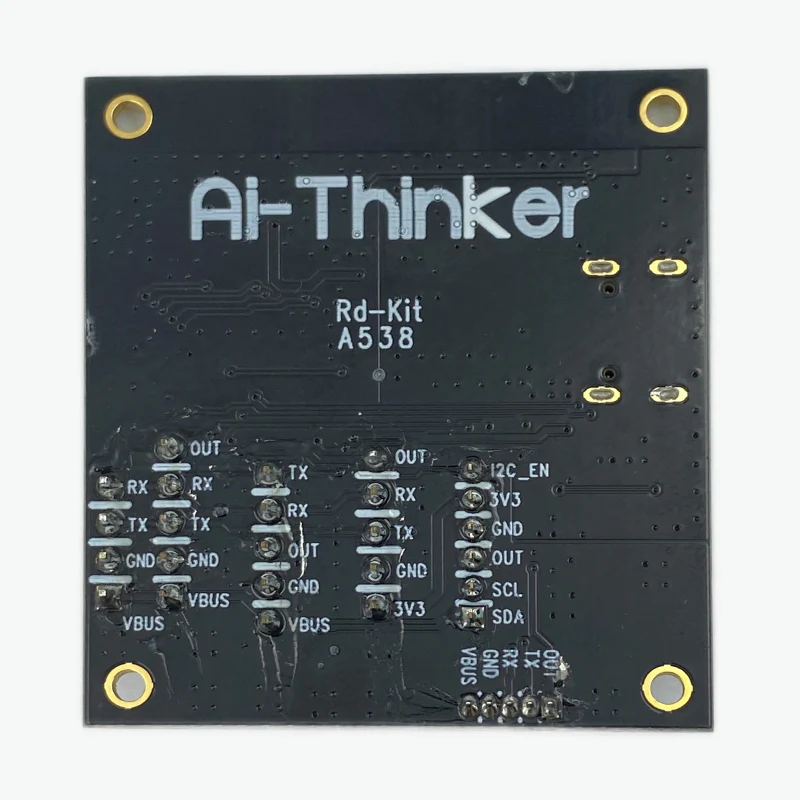

AI-Thinker RD-Kit Radar Test Board

AI-Thinker RD-Kit Radar Test Board is designed for testing and developing radar-based applications with support for multiple Ai-Thinker radar modules. Ideal for motion detection, smart sensing, and embedded radar-based IoT projects.

AI-Thinker RD-Kit Radar Test Board Datasheet

Features:

1. Supports Multiple Radar Modules (RD-02B, RD-02C, RD-03 Series)
2. BLE 5.2 Connectivity with Multiple Data Rates
3. Compatible with Ai-Thinker App for Monitoring and Configuration
4. Supports FOTA and Serial Firmware Upgrade
5. 6 Status Indicator LEDs (1 Red, 5 Blue)
6. Onboard Antenna Design
7. Supports Secondary Development (Windows & Linux)

Specifications:

Parameter	Value
Model	RD-Kit
Supported Radar Modules	RD-02B, RD-02C, RD-03, RD-03D, RD-03E, RD-04
Bluetooth	BLE 5.2
Data Rates	125Kbps / 500Kbps / 1Mbps / 2Mbps
SRAM	64KB
Flash	256KB
ROM	96KB
Frequency Range	2400 – 2483.5 MHz
Power Supply	5V (Type-C)
Supply Current	≥500mA
UART Default Rate	115200 bps
Security	AES-128
Indicator LEDs	6 (1 Red, 5 Blue)
Antenna	Onboard
Dimensions	40 × 45 mm
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +125°C



Explore AI Thinker Modules featuring ESP8266 and ESP32 chipsets with WiFi, Bluetooth, and RF capabilities, perfect for IoT development, wireless communication, automation systems, and embedded engineering projects.

Package Includes:

1 x AI-Thinker RD-Kit Radar Test Board
