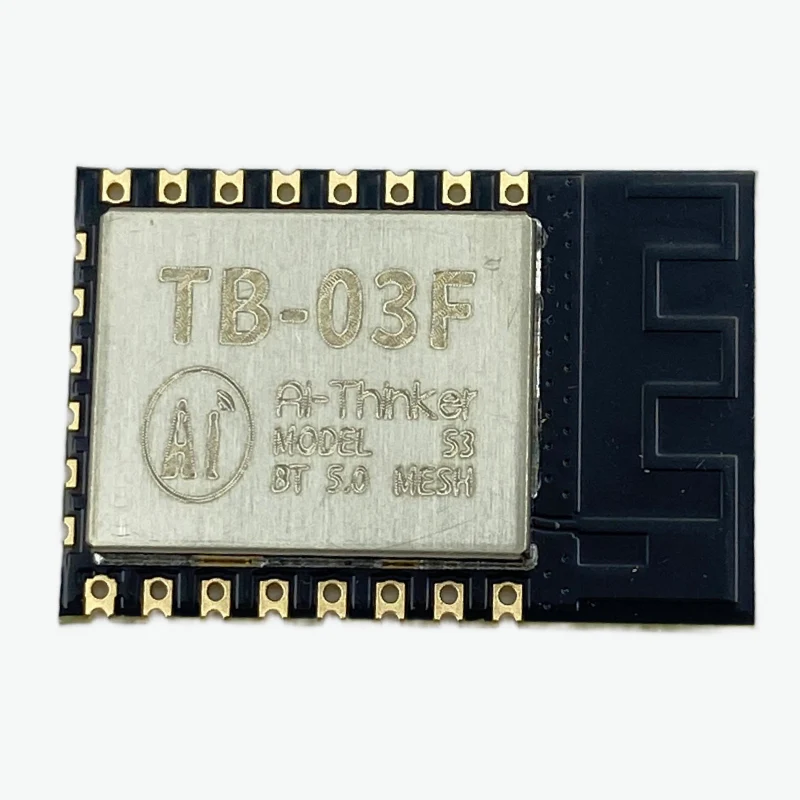

Ai-Thinker TB-03F WiFi + BLE 5.0 Module

Ai-Thinker (TB-03F) WiFi + BLE 5.0 Module is designed for smart wireless control applications with integrated WiFi and Bluetooth 5.0, making it suitable for lighting and IoT devices. Ideal for smart home systems, LED controllers, and embedded automation projects.

Ai-Thinker TB-03F WiFi + BLE 5.0 Module Datasheet

Features:

1. WiFi + Bluetooth 5.0 Combo Module
2. Direct Control with Smart Assistants (e.g., Tmall Genie)
3. 6 PWM Outputs for Lighting Control
4. Adjustable Brightness (5% – 100% Duty Cycle)
5. Onboard Antenna (No External Design Required)
6. Low Power Consumption with Deep Sleep (0.4µA)
7. 1KHz PWM Frequency
8. Supports Secondary Development

Specifications:

Parameter	Value
Model	TB-03F
Wireless	WiFi + BLE 5.0
Frequency Range	2400 – 2483.5 MHz
Transmit Power	Up to 10 dBm
Receive Sensitivity	-93 dBm ±2
Operating Voltage	2.7 – 3.6V
Supply Current	≥50mA
Interfaces	GPIO, PWM, SPI, ADC, I2S
PWM Channels	6
PWM Frequency	1 kHz
Brightness Control	5% – 100%
Antenna	PCB Onboard
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +125°C

Explore AI Thinker Modules featuring ESP8266 and ESP32 chipsets with WiFi, Bluetooth, and RF capabilities, perfect for IoT development, wireless communication, automation systems, and embedded engineering projects.

Package Includes:

1 x Ai-Thinker (TB-03F) WiFi + BLE 5.0 Module
