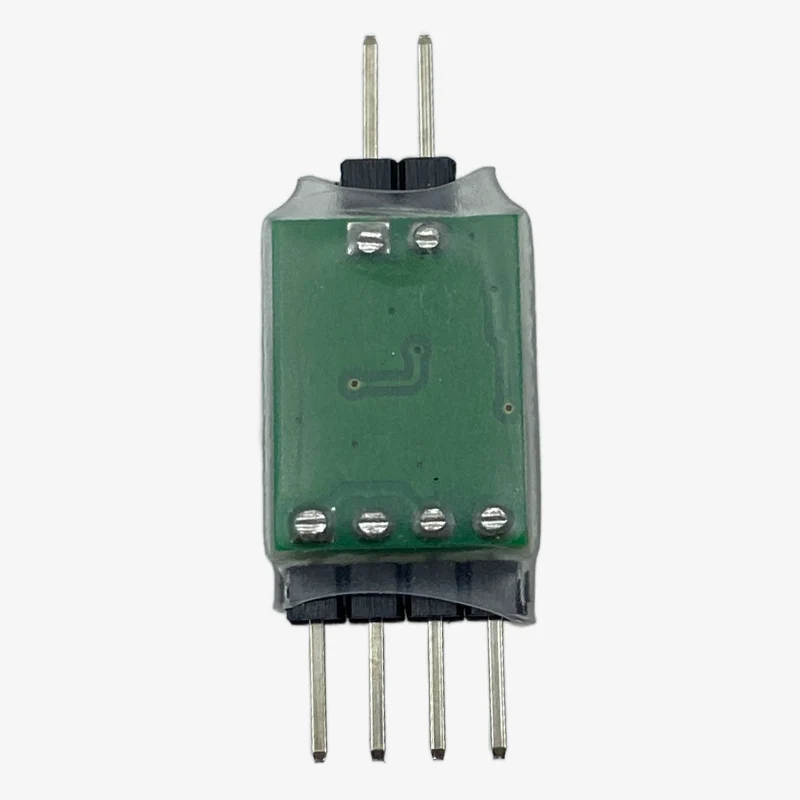

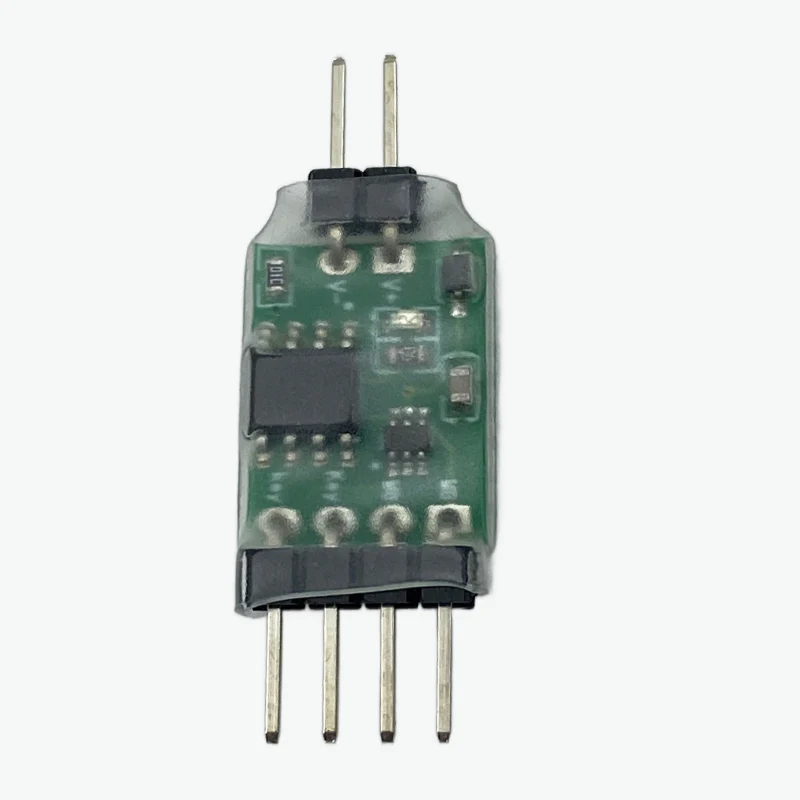

Auto-Power-On Module for Desktop PCs and Servers

Auto Power-On Module for Desktop PCs & Servers (ATX PWR_SW Trigger, 5V Standby Detection) is a hardware-based solution designed to automatically start a computer system when AC power is restored. The module interfaces directly with the motherboard’s power switch (PWR_SW) header and simulates a momentary button press using the 5V standby (5VSB) rail, ensuring reliable boot without BIOS dependency.

Features:

1. Automatic Power-On via 5V Standby (5VSB) Detection
2. Simulates ATX Power Button (PWR_SW) Signal
3. Works Independently of BIOS Settings (No AC Recovery Required)
4. Microcontroller-Based Timing for Stable Trigger Pulse
5. Inline Installation with Existing Power Switch Cable
6. Ultra-Low Power Consumption (<20mA)
7. Compact PCB Design for Easy Integration Inside Cabinet
8. Reliable Operation for Servers, IoT, and Industrial Systems

Specifications:

Parameter	Value
Product Type	Auto Power-On / ATX Trigger Module
Compatibility	ATX / Micro-ATX / Mini-ITX Motherboards
Input Voltage	5V DC (ATX 5VSB Standby Line)
Trigger Mechanism	Standby Voltage Detection (Power Restore)
Output Function	Momentary Switch (PWR_SW Simulation)
Trigger Delay	~1–3 Seconds (Typical)
Connection Type	2-Pin ATX Power Switch Header (Inline)
Control Circuit	Embedded Timing IC + Switching Circuit
Power Consumption	< 20mA
Installation	Inline with Cabinet Power Button
Dimensions	32mm × 12mm

Package Includes:

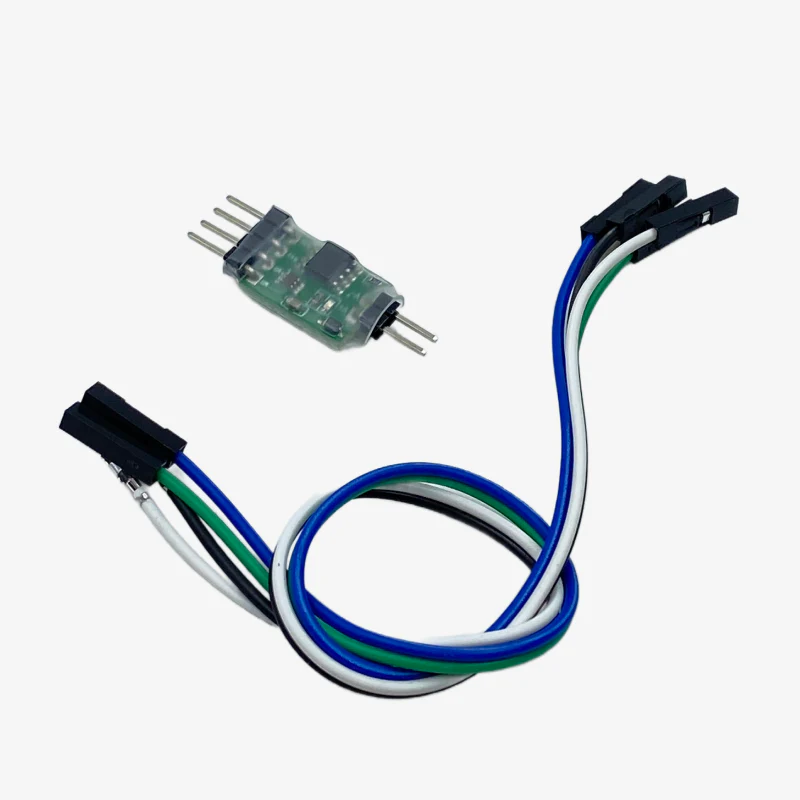

1 x Auto Power-On Module for Desktop PCs & Servers (ATX PWR_SW Controller)
