CrowPanel 4.3"- HMI ESP32 Display 480x272 RGB TFT LCD Touch Screen Compatible with Arduino

CrowPanel 4.3" HMI ESP32 Display 480×272 RGB TFT LCD Touch Screen is designed for interactive HMI and embedded display applications with integrated ESP32-S3 processing and touch control. Ideal for smart control panels, IoT interfaces, automation systems, and GUI-based projects.

Features:

1. Integrated ESP32-S3 Processor
2. 4.3" RGB TFT LCD Display
3. 480 × 272 Resolution
4. Resistive Touch Screen Support
5. Compatible with Arduino Development
6. TF Card Slot for Storage Expansion
7. Multiple UART and GPIO Interfaces
8. Compact HMI Solution for IoT Projects

Specifications:

Parameter	Value
Brand	Elecrow
Model	4.3" CrowPanel ESP32 Display
Main Processor	ESP32-S3-WROOM-1-N4R2
Display Size	4.3 inch
Resolution	480 × 272
Display Type	TN TFT-LCD
Touch Type	Resistive Touch
Display Driver	NV3047
Power Supply	DC 5V / 2A
Battery Voltage	3.7 – 4.2V
Interfaces	TF Card, GPIO, Speaker, UART0, UART1
Buttons	BOOT, Reset
Active Area	95.04 × 53.86 mm
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C



Package Includes:

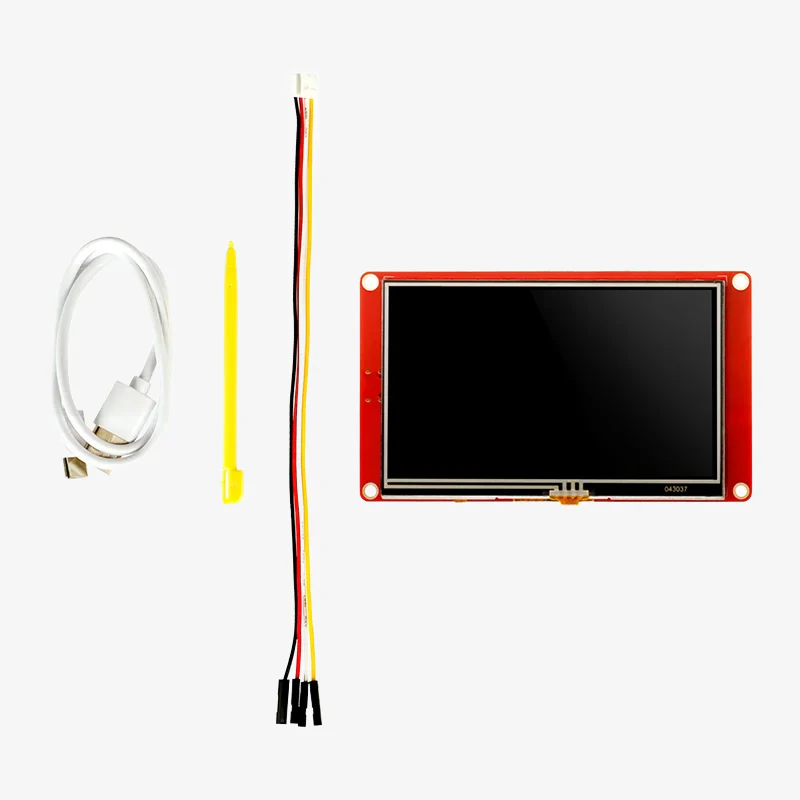

1 x CrowPanel 4.3" HMI ESP32 Display 480×272 RGB TFT LCD Touch Screen Compatible with Arduino
