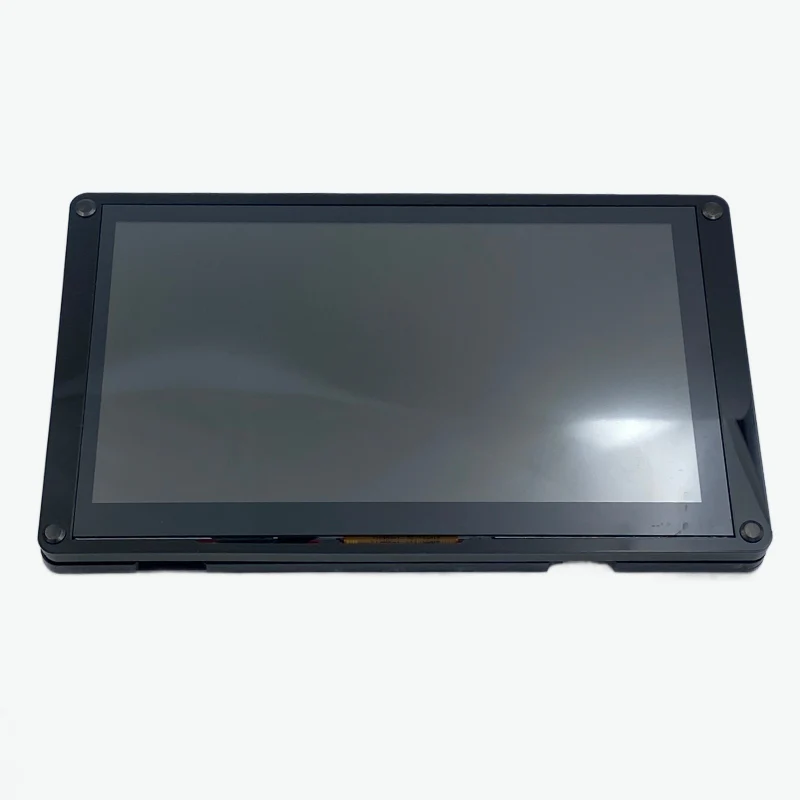

CrowPanel Advanced 10.1 inch ESP32-P4 HMI AI Display 1024x600 IPS Touch Screen with WiFi 6 Support Compatible with Arduino

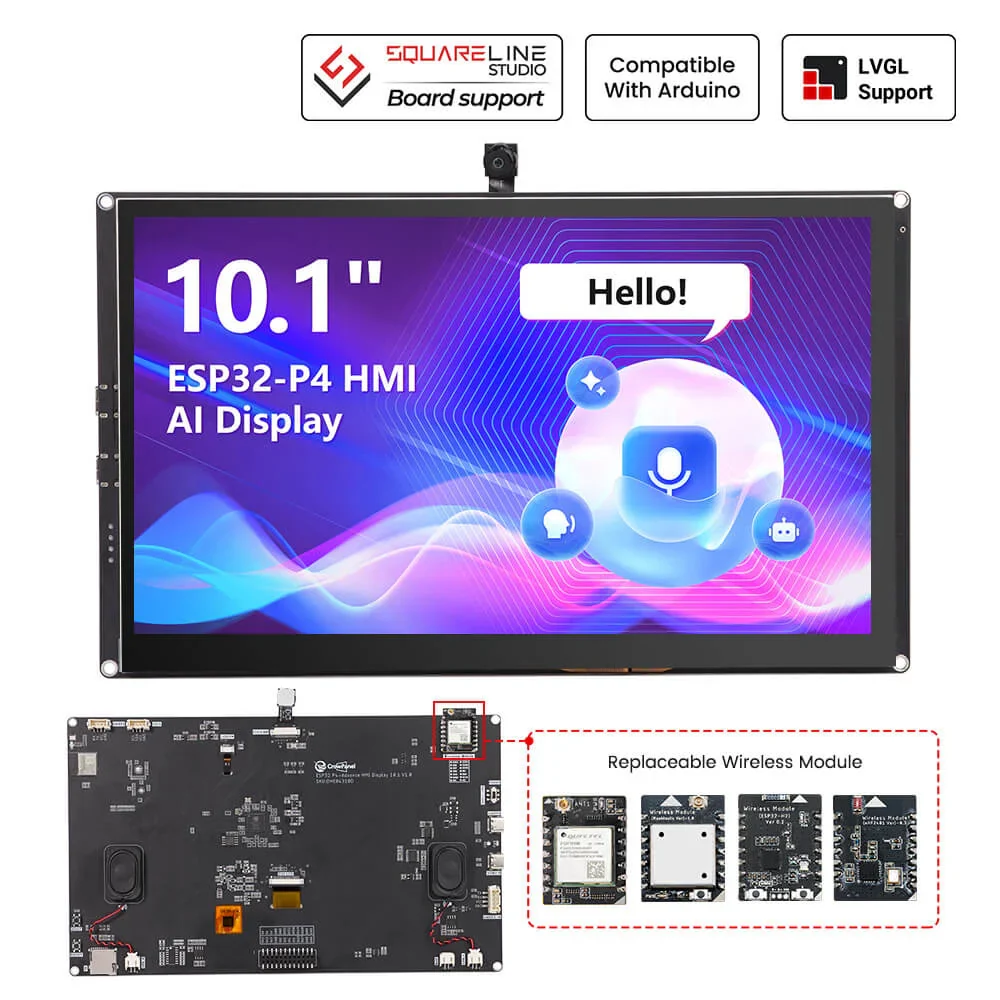

CrowPanel Advanced 10.1 Inch ESP32-P4 HMI AI Display 1024×600 IPS Touch Screen with WiFi 6 Support is designed for advanced HMI, AI, and embedded applications with a high-performance ESP32-P4 processor, large IPS touch display, and rich connectivity options. Ideal for smart dashboards, industrial control systems, AI interfaces, and IoT projects.

Features:

1. High-Performance ESP32-P4 Processor
2. 10.1" IPS Capacitive Touch Display
3. 1024 × 600 High Resolution Screen
4. Supports WiFi 6 and Bluetooth 5.3
5. Compatible with Arduino IDE and ESP-IDF
6. Built-in Audio Amplifier and Dual Speakers
7. Supports Camera, SD Card, and Battery Expansion
8. Suitable for AI and HMI Applications

Specifications:

Parameter	Value
Brand	Elecrow
Model	CrowPanel Advanced 10.1" ESP32-P4
Main Chip	ESP32-P4NRW32
Processor	RISC-V Dual-Core + Low Power Core
HP Core Frequency	Up to 400 MHz
LP Core Frequency	Up to 40 MHz
L2 Memory	768KB
LP SRAM	32KB
TCM	8KB
PSRAM	32MB
Flash	16MB
ROM	128KB (HP) + 16KB (LP)
Development Environment	ESP-IDF, Arduino IDE
Display Size	10.1 inch
Display Type	IPS
Resolution	1024 × 600
Touch Type	Capacitive Touch (Single / 5-Point)
Viewing Angle	178°
Brightness	400 cd/m²
Color Depth	16.7M (8-bit)
WiFi	2.4GHz WiFi 6 (802.11 a/b/g/n)
Bluetooth	Bluetooth 5.3 + BLE
Optional Wireless	Zigbee, LoRa, nRF2401, Matter, Thread, WiFi HaLow
Interfaces	USB2.0, UART, I2C, GPIO, SD Card, Battery, Camera
Functions	Audio Amplifier, USB-UART, Microphones, Dual Speakers
Power Input	5V / 2A
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C
Dimensions	248 × 147 mm

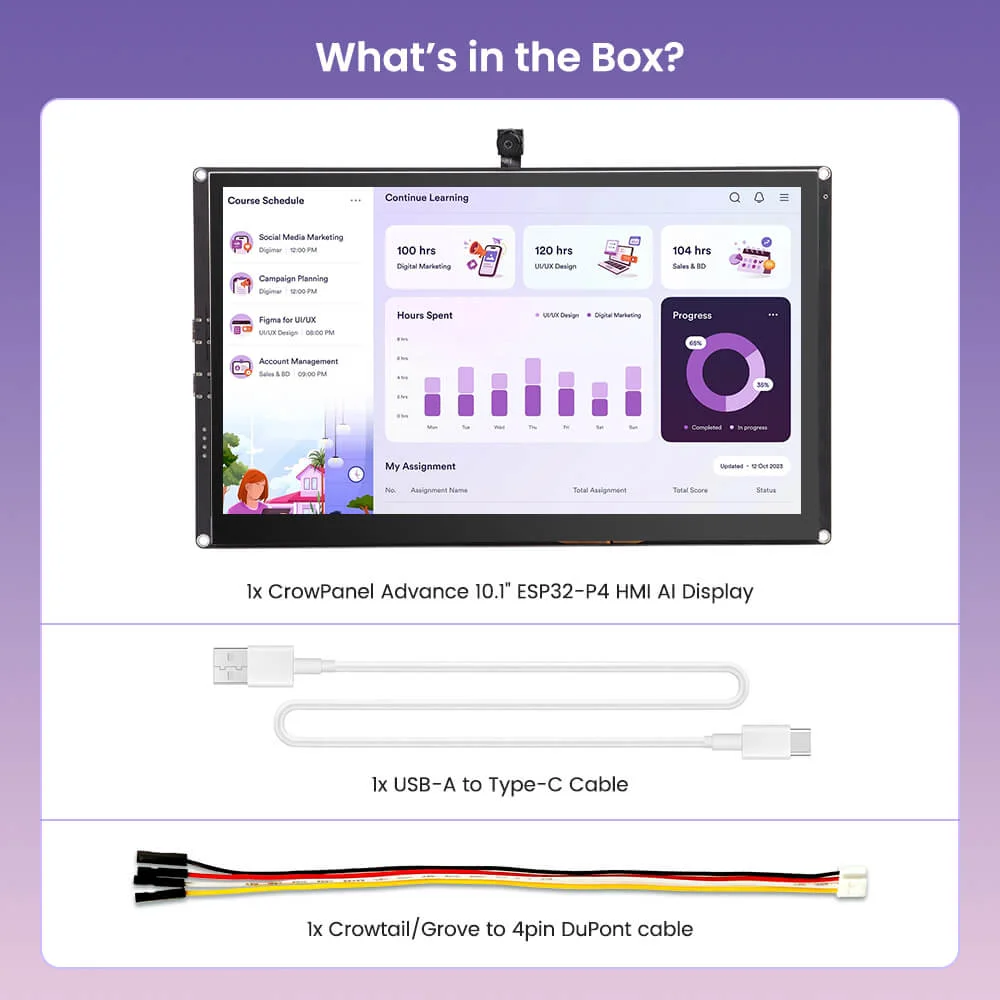

Package Includes:

1 x CrowPanel Advanced 10.1 Inch ESP32-P4 HMI AI Display 1024×600 IPS Touch Screen with WiFi 6 Support Compatible with Arduino
