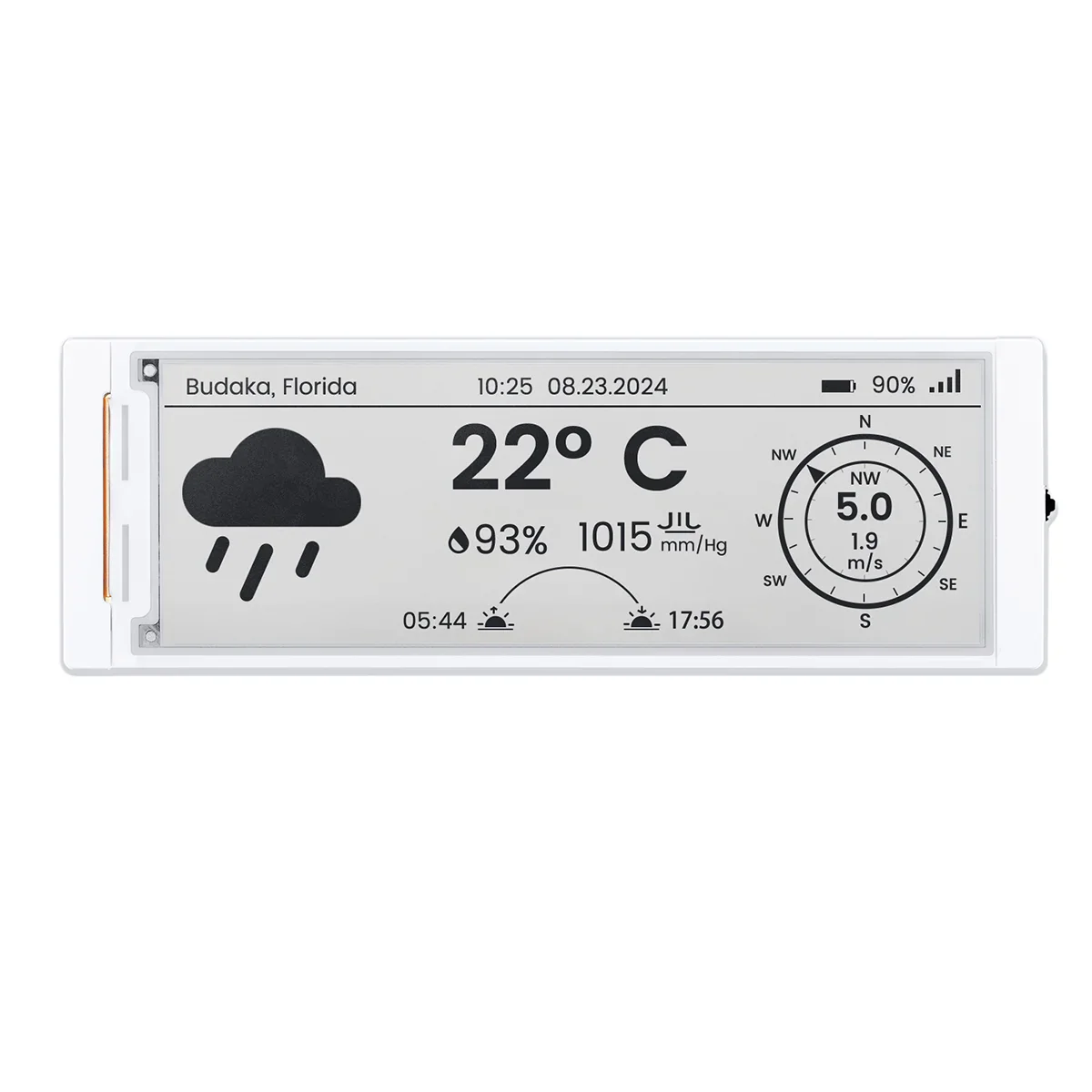

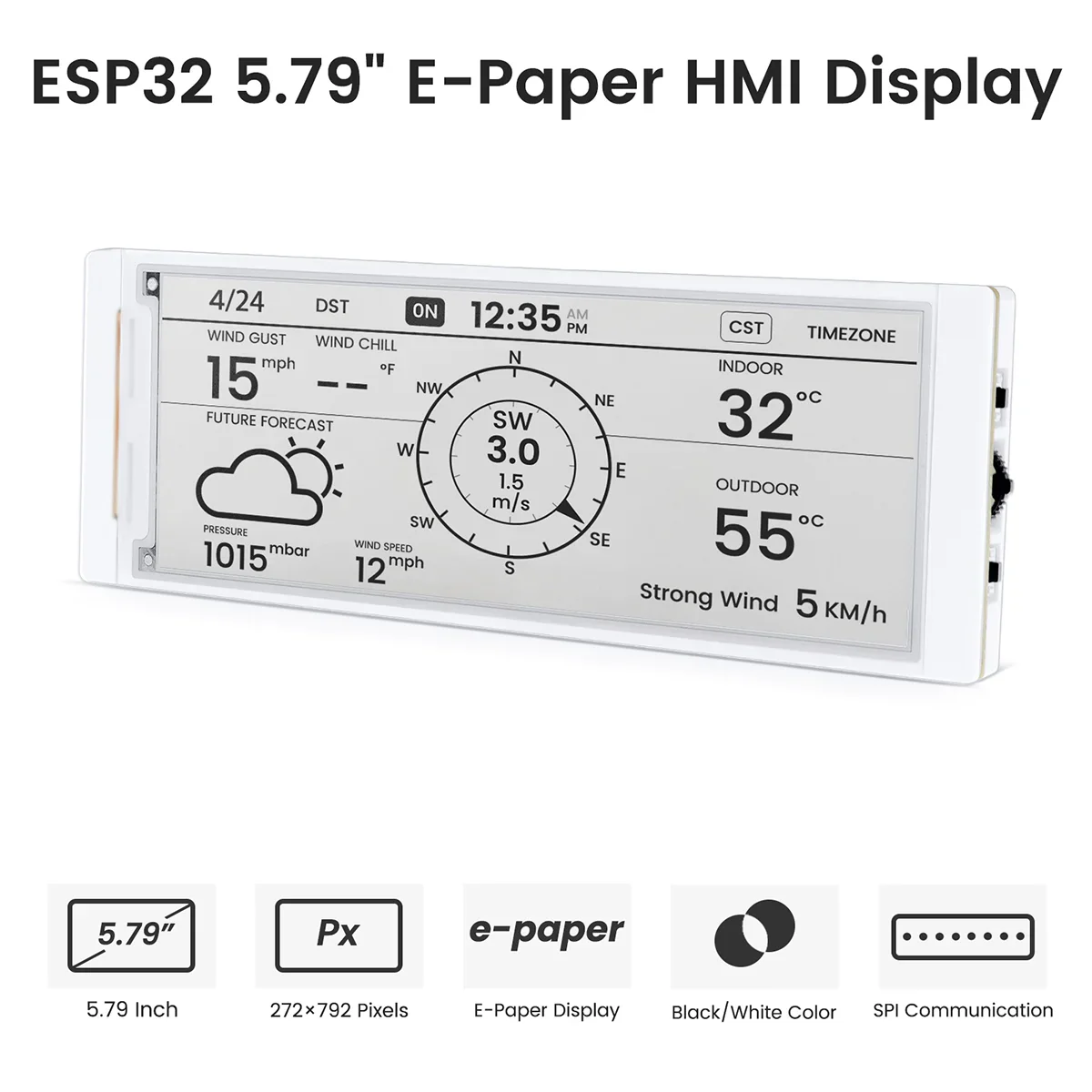

CrowPanel ESP32 5.79inch E-paper HMI Display with 272*792 Resolution Black/White Color Driven By SPI Interface

CrowPanel ESP32 5.79 Inch E-Paper HMI Display with 272×792 Resolution Black/White Color Driven by SPI Interface is designed for ultra-low-power HMI and IoT display applications with a large E-paper screen and integrated ESP32-S3 processor. Ideal for smart labels, dashboards, status displays, and battery-powered embedded systems.

Features:

1. Integrated ESP32-S3 Dual-Core Processor
2. 5.79" Black & White E-Paper Display
3. 272 × 792 High Resolution
4. Ultra Low Power Partial Refresh Mode
5. WiFi Connectivity Support
6. Wide Viewing Angle Display
7. SPI Interface Communication
8. Supports Arduino IDE Development

Specifications:

Parameter	Value
Brand	Elecrow
Model	CrowPanel ESP32 5.79" E-Paper HMI Display
MCU	ESP32-S3-WROOM-1-N8R8
Clock Frequency	Up to 240 MHz
Flash	8MB
PSRAM	8MB
Display Size	5.79 inch
Display Type	AM EPD (E-Paper)
Display Color	Black & White
Resolution	272 × 792 Pixels
Driver Chip	SSD1683 ×2
Viewing Angle	Full Viewing Angle
Communication Interface	3/4-Wire SPI
Default Interface	4-Wire SPI
WiFi	Supported

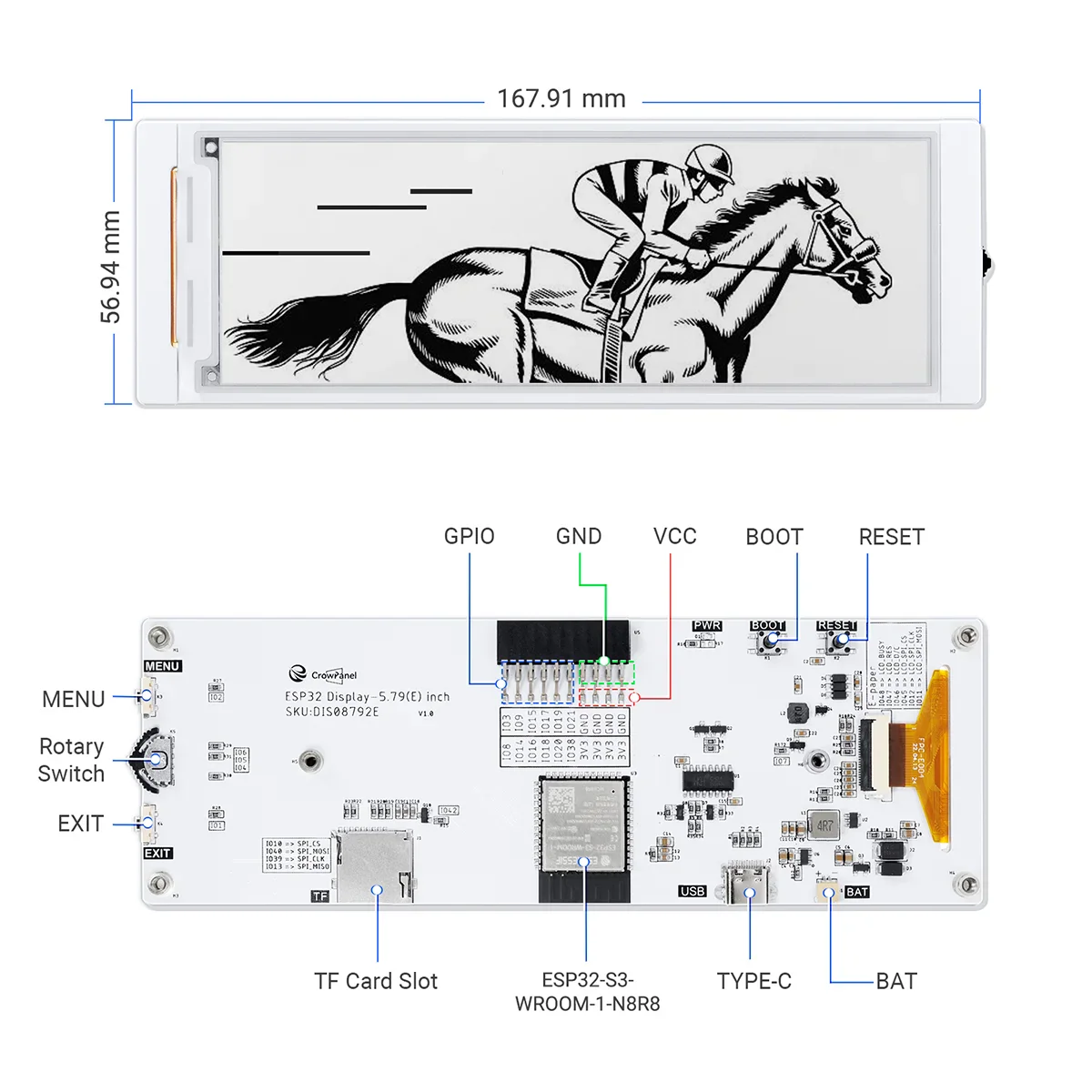

Interfaces	UART, GPIO, TF Card Slot, Battery
Buttons	Dial Switch, Menu, Back, Reset, Boot
Development Environment	Arduino IDE
Display Voltage	2.2V – 3.7V
Operating Temperature	0°C to +50°C
Storage Temperature	-25°C to +70°C
Active Area	47.74 × 139.00 mm



Package Includes:

1 x CrowPanel ESP32 5.79 Inch E-Paper HMI Display with 272×792 Resolution Black/White Color Driven by SPI Interface
