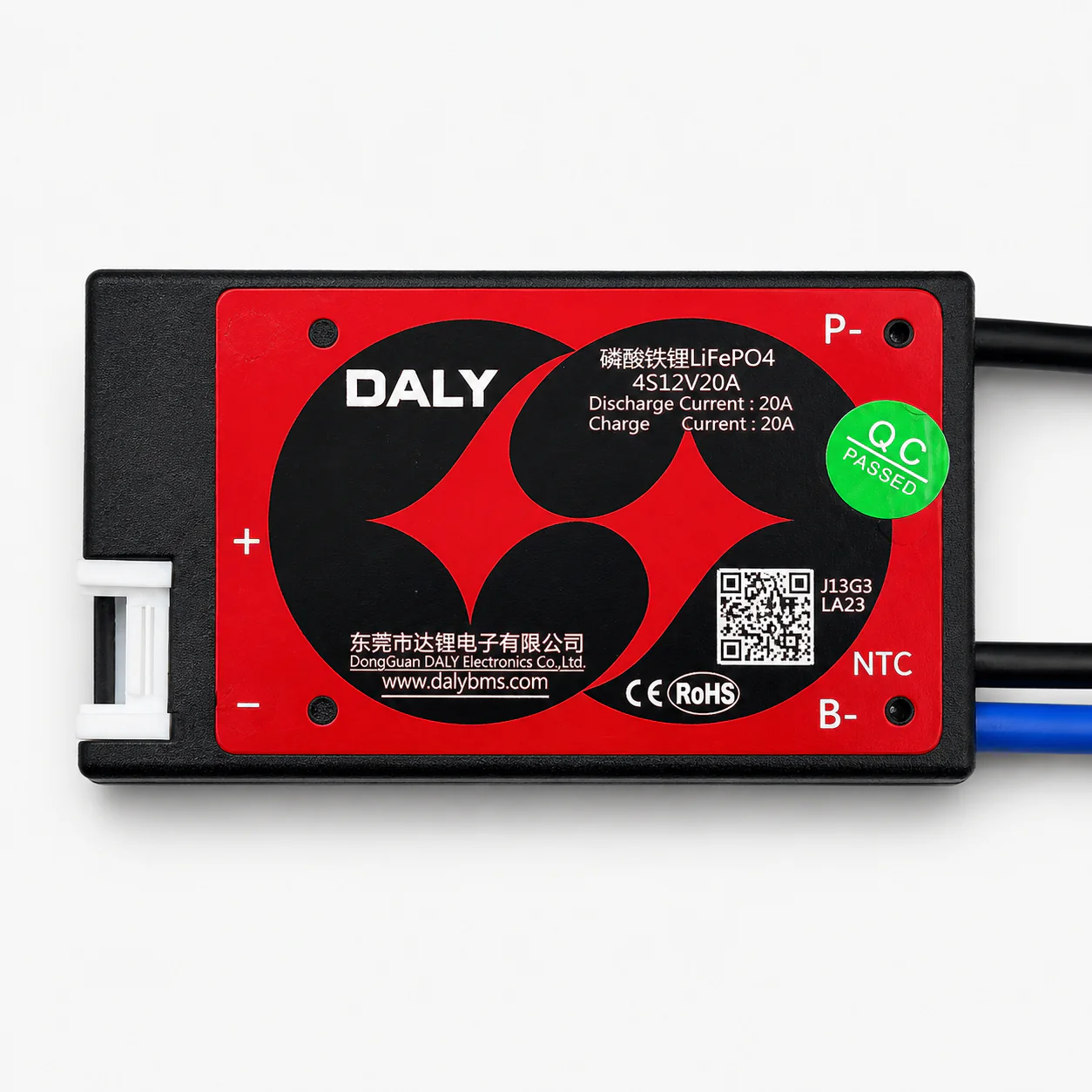

DALY LiFePO4 4S 12V 20A Waterproof Battery Management System - BMS Protection Board

DALY LiFePO4 4S 12V 20A Waterproof Battery Management System - BMS Protection Board is designed to provide comprehensive protection and cell balancing for 4S LiFePO4 battery packs. Featuring waterproof construction, active balancing, and multiple protection functions, it helps improve battery safety, performance, and lifespan in energy storage and battery pack applications.

DALY LiFePO4 4S 12V 20A Waterproof Battery Management System Datasheet

Features:

1. Designed for 4S LiFePO4 Battery Packs
2. Waterproof Design
3. 20A Continuous Charge Current
4. 20A Continuous Discharge Current
5. Built-In Cell Balancing Function
6. Overcharge Protection
7. Over-Discharge Protection
8. Overcurrent Protection
9. Low Power Consumption
10. 5-Pin Connector Interface
11. Reliable Battery Pack Protection

Specifications:

Parameter	Value
Brand	DALY
Product Type	Battery Management System (BMS)
Battery Type	LiFePO4 (LFP)
Battery Configuration	4S
Nominal Battery Voltage	12.8V
Charge Voltage	14.6V
Charge Current	20A
Discharge Current	20A
Balance Current	30 ± 5mA
Balance Detect Voltage	3.50V
Working Current	100uA
Overcharge Detect Voltage	3.75 ± 0.05V
Overcharge Release Voltage	3.55 ± 0.05V
Over-Discharge Detect Voltage	2.2 ± 0.1V
Over-Discharge Release Voltage	2.7 ± 0.1V
Connector Type	5-Pin Connector
Waterproof	Yes



Explore wide range of DALY Smart BMS >

Also Check These Prodcuts:-

DALY LiFePo4 4S 12V 40A Waterproof Battery Management System

DALY LiFePo4 4S 12V 100A Waterproof Battery Management System

DALY LiFePO4 4S 12V 50A Waterproof Battery Management System

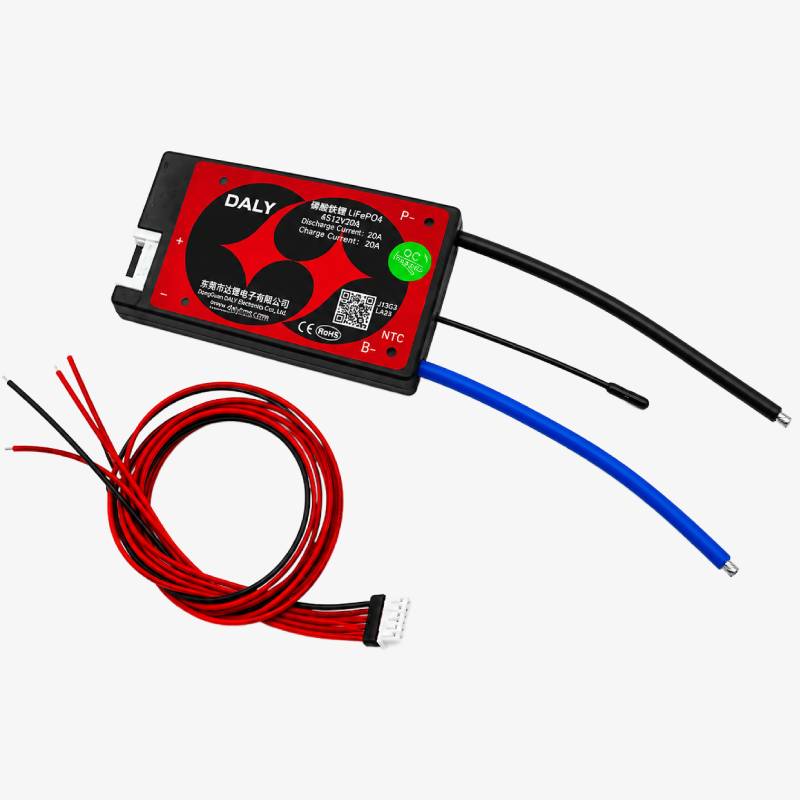

Package Includes:

1 x DALY LiFePO4 4S 12V 20A Waterproof Battery Management System - BMS Protection Board
