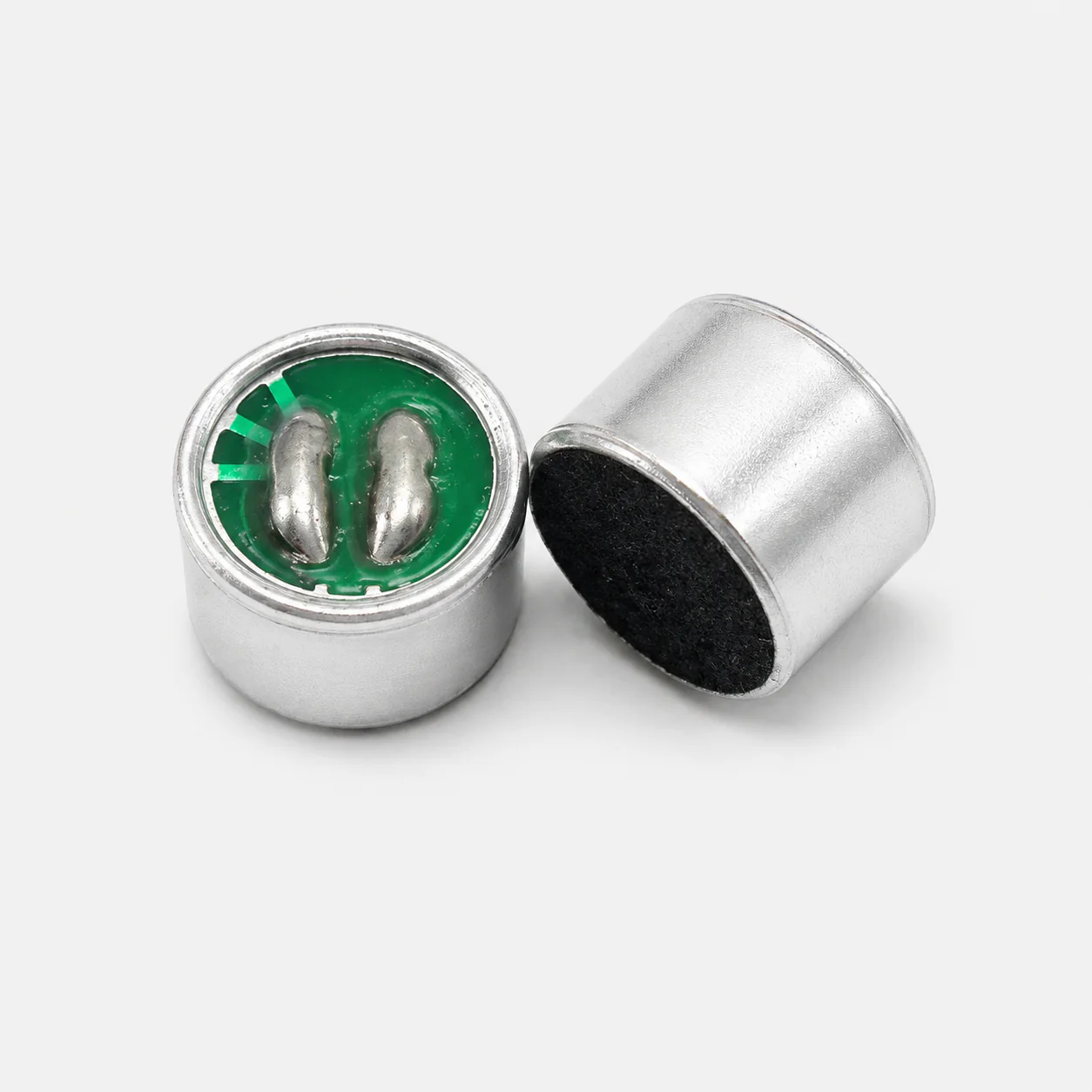

Electret Condenser Microphone - 7 x 9 mm

Electret Condenser Microphone is a compact, high-sensitivity audio sensor designed for capturing clear voice and sound signals in a wide range of electronic applications. Utilizing electret condenser technology, it provides stable analog audio output with low power consumption, making it ideal for voice recording, communication devices, audio amplifiers, security systems, IoT projects, and DIY electronics.

Features:

1. High Sensitivity Electret Condenser Microphone
2. Compact and Lightweight Design
3. Low Power Consumption
4. Clear Analog Audio Output
5. Wide Frequency Response
6. Omnidirectional Sound Pickup
7. Stable and Reliable Performance
8. Easy PCB Mounting
9. Suitable for Low Voltage Operation
10. Ideal for Audio Recording, Voice Recognition, Intercoms, Security Systems, and DIY Electronics

Specifications:

Parameter	Value
Product Type	Electret Condenser Microphone
Microphone Type	Electret Condenser
Output Type	Analog
Operating Voltage	1.5V–10V DC
Frequency Response	20Hz–20kHz
Sensitivity	-44dB ±3dB
Output Impedance	≤2.2kΩ
Directivity	Omnidirectional
Diameter	Approx. 7mm
Mounting Type	Through Hole



Also Check These Out:

Analog Sound Sensor Microphone Module

USB Plug and Play Desktop Microphone

INMP441 MEMS High Precision Omnidirectional Microphone Module I2S

Package Includes:

1 x Electret Condenser Microphone
