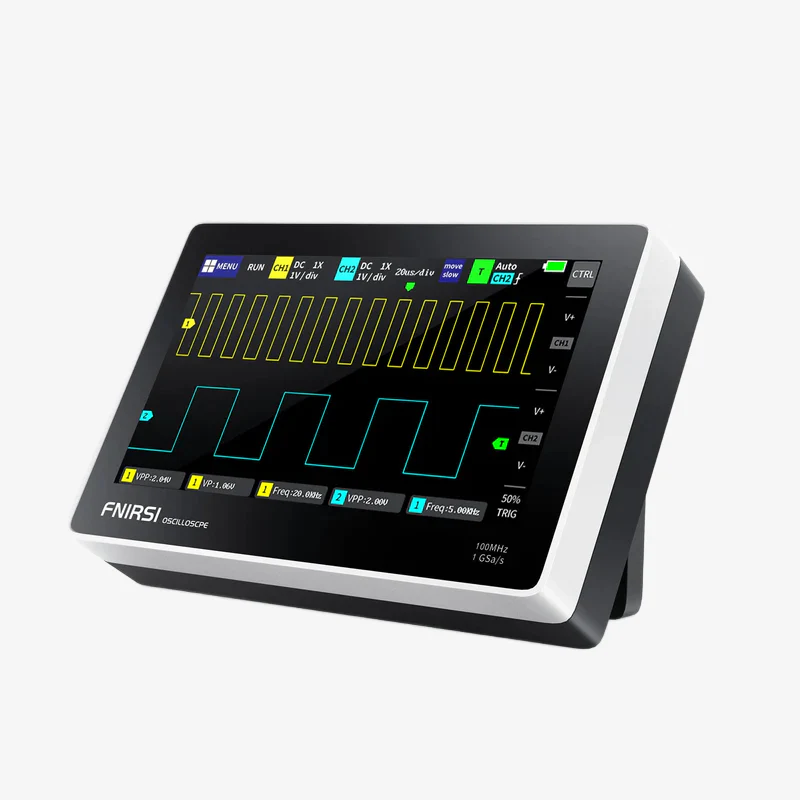

FNIRSI® 1013D Tablet Dual Channel 100MHz 1GS/s Touchable Panel Oscilloscope

FNIRSI® 1013D Tablet Dual Channel 100MHz 1GS/s Touchable Panel Oscilloscope is a professional portable oscilloscope designed for electronics troubleshooting, signal analysis, circuit debugging, and R&D applications. Featuring dual-channel input, 100MHz bandwidth, a 7-inch touch screen, FFT analysis, waveform storage, and a built-in rechargeable battery, it provides powerful measurement capabilities in a compact handheld design.

FNIRSI® 1013D Tablet Dual Channel Touchable Panel Oscilloscope Datasheet

Features:

1. Dual Channel Oscilloscope Design
2. 100MHz Analog Bandwidth per Channel
3. 1GSa/s Real-Time Sampling Rate
4. 7-Inch TFT LCD Touch Screen
5. Complete Trigger Functions (Auto, Normal, Single)
6. Lissajous Graphic Display Support
7. FFT Spectrum Analysis Function
8. Waveform Storage and Screenshot Capture
9. Cursor Measurement Function
10. USB Waveform and Image Export
11. Built-in 6000mAh Rechargeable Battery
12. Portable Tablet-Style Design

Specifications:

Parameter	Value
Brand	FNIRSI®
Model	1013D
Product Type	Tablet Oscilloscope
Channels	2
Display Size	7 Inch
Display Resolution	800 × 480 Pixels
Analog Bandwidth	100MHz × 2
Sampling Rate	1GSa/s
Rise Time	< 3ns
Storage Depth	240 Kbit
Time Base Range	50s ~ 10ns
Vertical Sensitivity	50mV ~ 500V
Input Resistance	1MΩ
Coupling Mode	AC / DC
Trigger Mode	Single / Normal / Auto
Trigger Edge	Rising / Falling
Voltage Accuracy	±2%
Frequency Accuracy	±0.01%
Waveform Parameters	12 Types
Waveform Storage	1000 Screenshots + 1000 Waveforms
Cursor Measurement	Supported
Roll Mode	Supported
One-Button AUTO	Supported
FFT Analysis	Supported
Lissajous Display	Supported
USB Export	Supported
Input Voltage (1X Probe)	0 ~ 40V
Input Voltage (10X Probe)	0 ~ 400V
Input Voltage (100X Probe)	0 ~ 4000V
Battery Capacity	6000mAh Lithium Battery
Operating Time	Up to 4 Hours
Charging Interface	USB Type-C
Charging Input	5V 2A / 3A / 4A
