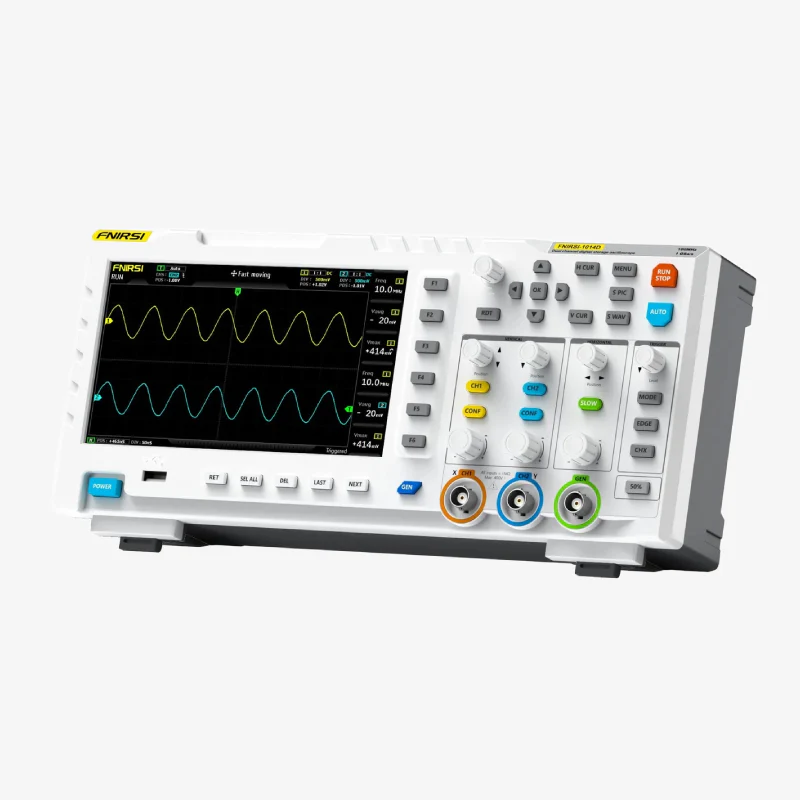

FNIRSI® 1014D 2-IN-1 Dual Channel 100MHz 1GS/s Digital Oscilloscope Signal Generator

FNIRSI® 1014D 2-IN-1 Dual Channel 100MHz 1GS/s Digital Oscilloscope Signal Generator is a professional desktop test instrument that combines a dual-channel digital oscilloscope and DDS signal generator in a single device. Featuring a 1GSa/s sampling rate, 100MHz bandwidth, 7-inch HD display, FFT analysis, waveform storage, and customizable signal generation, it is ideal for electronics development, circuit debugging, laboratory testing, maintenance, and educational applications.3

FNIRSI® 1014D 2-IN-1 100MHz  Digital Oscilloscope Signal Generator Datasheet

Features:

1. 2-in-1 Oscilloscope and DDS Signal Generator
2. Dual Channel Input Design
3. 100MHz Analog Bandwidth per Channel
4. 1GSa/s Real-Time Sampling Rate
5. 7-Inch High-Resolution TFT LCD Display
6. 14 Built-In Signal Generator Waveforms
7. Custom Signal Generation Support
8. Lissajous Graphic Display Function
9. FFT Spectrum Analysis Function
10. One-Button AUTO Measurement
11. Waveform Screenshot and Storage Support
12. USB Export Function
13. High Voltage Protection Design



Specifications:

Parameter	Value
Brand	FNIRSI®
Model	1014D
Product Type	Digital Oscilloscope & Signal Generator
Channels	2
Display Size	7 Inch
Display Resolution	800 × 480 Pixels
Material	ABS
Power Supply	5V 2A / 3A / 4A
Dimensions	310 × 145 × 70 mm

Oscilloscope Specifications:

Parameter	Value
Analog Bandwidth	100MHz × 2
Sampling Rate	1GSa/s
Vertical Sensitivity	50mV/div ~ 500V/div
Horizontal Time Base	50s/div ~ 10ns/div
Storage Depth	240Kbit
Input Resistance	1MΩ
ADC Resolution	8-bit
Rise Time	< 3ns
Coupling Mode	AC / DC
Trigger Modes	Auto / Normal / Single
Trigger Edge	Rising Edge / Falling Edge
External Trigger Voltage	0 ~ 40V
Maximum Input Voltage (1X Probe)	40V
Maximum Input Voltage (10X Probe)	400V
Frequency Accuracy	±0.01%
Roll Mode	Supported
One-Button AUTO	Supported
Waveform Storage	1000 Screenshots + 1000 Waveforms
USB Export	Supported
Screenshot Capture	Supported
FFT Analysis	Supported
Lissajous Display	Supported
Measurement Parameters	12 Types

Signal Generator Specifications:

Parameter	Value
Output Channels	1
Output Waveforms	14 Standard + 1 Custom Waveform
Output Amplitude	2.5Vpp
Sine Wave Maximum Frequency	10MHz
Other Waveforms Maximum Frequency	2MHz
Custom Waveform Maximum Frequency	1MHz
Frequency Resolution	1Hz
Custom Signal Storage	Up to 1000 Signals
Capture Output	Supported
