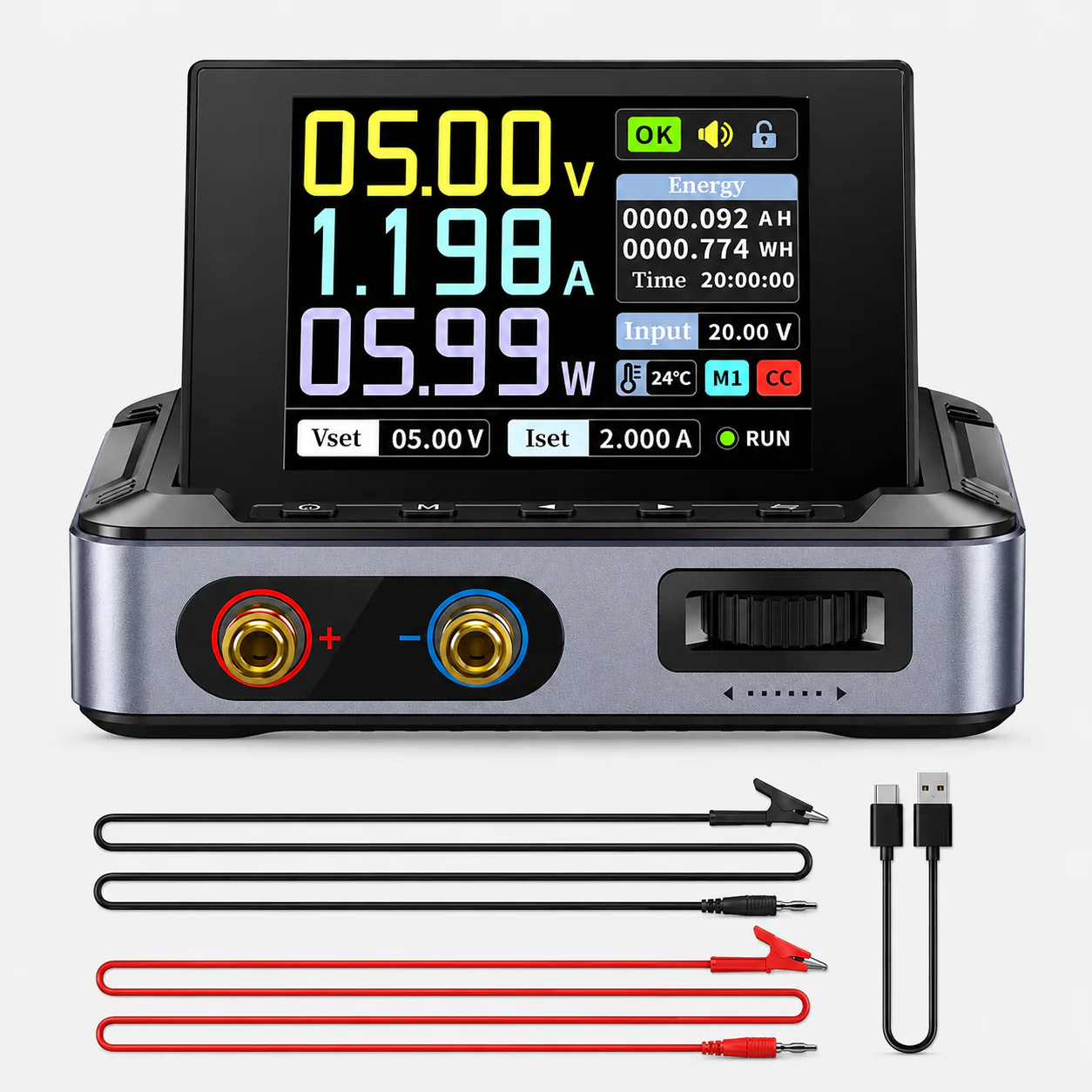

FNIRSI® DPS-150 Mini DC Adjustable CNC Programmable Regulated Switching Power Supply

 FNIRSI® DPS-150 Mini DC Adjustable CNC Programmable Regulated Switching Power Supply is a compact, high-performance programmable DC power supply designed for electronics development, laboratory testing, battery charging, repair work, and DIY applications. Supporting multiple input methods including USB Type-C PD, QC fast charging, power banks, and DC adapters, it delivers an adjustable output of 0–30V and 0–5A with up to 150W output power. Featuring high-precision CC/CV output, a 2.8-inch IPS display, programmable presets, PC software support, firmware upgrades, and eight comprehensive protection mechanisms, the DPS-150 offers professional-grade performance in a portable form factor.

FNIRSI® DPS-150 Mini DC Adjustable CNC Switching Power Supply Datasheet

⚠ Precautions

• The product operates in step-down mode, so ensure that the input voltage is higher than the output voltage
• The power supply range for this product is Dc 5V~30v. Output will be disabled if the input voltage is lower than 5.0V due to undervoltage lockout, and the device may be damaged if the input voltage exceeds 30V. lt is recommended to use a power supply ranging from 5V to 30V.
• When supplying power to inductive and capacitive loads, it is recommended to connect the load before turning on the device output.
• When outputting high power, some heat generation is normal. lt is recommended to use the device in a well-ventilated environment.
• Please remember not to connect power to both power ports of the device simultaneously, as simultaneous power supply may potentially damage the input source with lower voltage.
• When charging batteries, it is strongly recommended to add a reverse current protection module (such as a Schottky diode) to the output end to protect the device from damage.

Features:

1. 0–30V Adjustable Output Voltage
2. 0–5A Adjustable Output Current
3. 150W Maximum Output Power
4. Constant Voltage (CV) & Constant Current (CC) Modes
5. High Precision Output (0.01V / 0.001A Resolution)
6. Supports USB Type-C PD Fast Charging Input
7. Supports QC Fast Charging Input
8. Supports DC Adapter & Power Bank Input
9. 2.8-inch IPS Color Display
10. 90° Auto-Rotating Display
11. 6 Programmable Voltage & Current Presets
12. Real-Time Numerical & Curve Display
13. PC Software Support
14. Firmware Upgrade Support
15. Low Ripple Output (<20mV)
16. Compatible with Banana Plugs, U-Terminals & Copper Wire
17. Compact & Portable Design

Basic Specifications

Parameter	Value
Brand	FNIRSI®
Model	DPS-150
Product Type	Programmable DC Switching Power Supply
Display	2.8-inch IPS Color Screen
Display Resolution	320 × 240 Pixels
Weight	Approx. 178g
Dimensions	106 × 76 × 28mm



Input Specifications

Parameter	Value
Input Voltage	DC 5V – 32V
Input Current	100mA – 5A
Input Methods	USB Type-C PD
	QC Fast Charger
	DC Power Adapter
	Power Bank



Output Specifications

Parameter	Value
Output Voltage	0 – 30V DC
Output Current	0 – 5A
Maximum Output Power	150W
Output Mode	Constant Voltage (CV) / Constant Current (CC)
Voltage Resolution	0.01V
Current Resolution	0.001A
Output Ripple	<20mV
Load Regulation	0.49%
Full Load Efficiency	96.30%



Display & User Interface

Parameter	Value
Display Size	2.8 Inches
Display Type	IPS Color LCD
Screen Resolution	320 × 240 Pixels
Screen Rotation	90° Auto Rotation
Display Mode	Numerical & Graphical Curve
Voltage & Current Presets	6 Groups
Real-Time Monitoring	Supported



Protection Features

Protection	Support
Over Voltage Protection (OVP)	Yes
Over Current Protection (OCP)	Yes
Under Voltage Protection (UVP)	Yes
Over Power Protection (OPP)	Yes
Over Temperature Protection (OTP)	Yes
Reverse Input Protection	Yes
Reverse Output Protection	Yes
Short Circuit Protection (SCP)	Yes



Connectivity & Software

Parameter	Value
PC Software	Supported
Firmware Upgrade	Supported
Output Connectors	4mm Banana Plug
	U-Type Terminal
	Copper Wire



Performance Specifications

Parameter	Value
Operating Temperature	0°C – 40°C
Working Mode	Step-Down (Buck Converter)
Recommended Input Voltage	5V – 30V DC
High Power Cooling	Passive Heat Dissipation



Important Precautions

Precaution	Description
Input Voltage	Input voltage must always be higher than the desired output voltage.
Maximum Input	Do not exceed 30V DC input.
Minimum Input	Output is disabled below 5V due to undervoltage protection.
Inductive/Capacitive Loads	Connect the load before enabling the output.
Battery Charging	Use a reverse current protection module (Schottky diode recommended).
Cooling	Ensure adequate ventilation during high-power operation.
Dual Power Input	Do not connect two input power sources simultaneously.



Explore the FNIRSI Collection featuring advanced digital multimeters, oscilloscopes, signal generators, laser rangefinders, thermal cameras, USB testers, and precision electronic test equipment. Ideal for electronics engineers, technicians, makers, DIY enthusiasts, troubleshooting, circuit analysis, industrial maintenance, and professional measurement applications.

Also Check These Products:-

FNIRSI HRM-10 Battery Voltage Internal Resistance Tester

FNIRSI LCR-P1 Multifunction Transistor Capacitor Tester

FNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester

FNIRSI DMC-100 DC AC Current Voltage Digital Clamp Multimeter

FNIRSI DMT-99 Intelligent Color Screen Digital MultiMeter

Package Includes:

1 x FNIRSI® DPS-150 Mini DC Adjustable CNC Programmable Regulated Switching Power Supply
