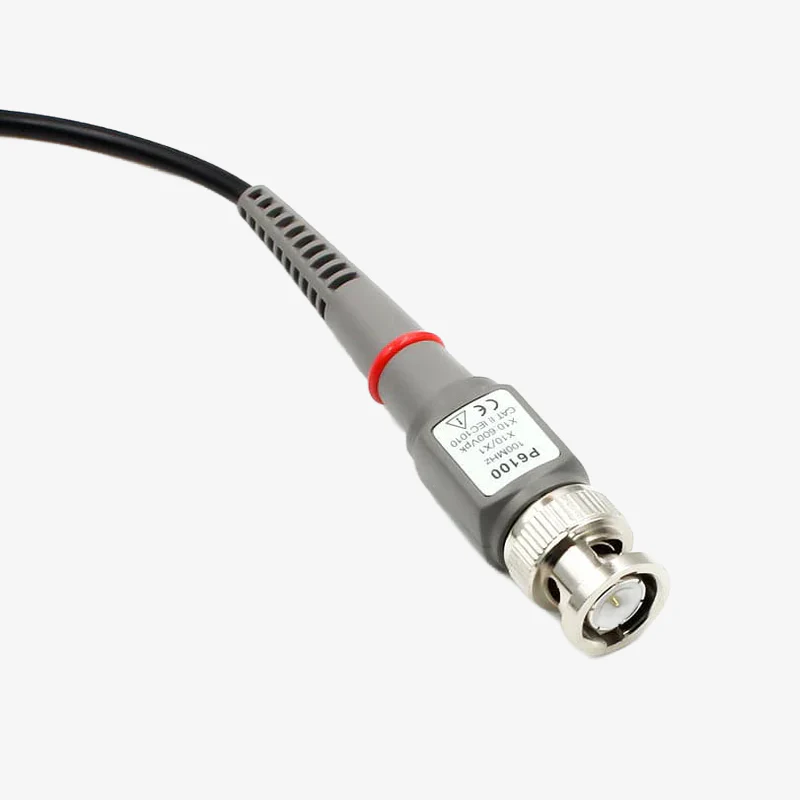

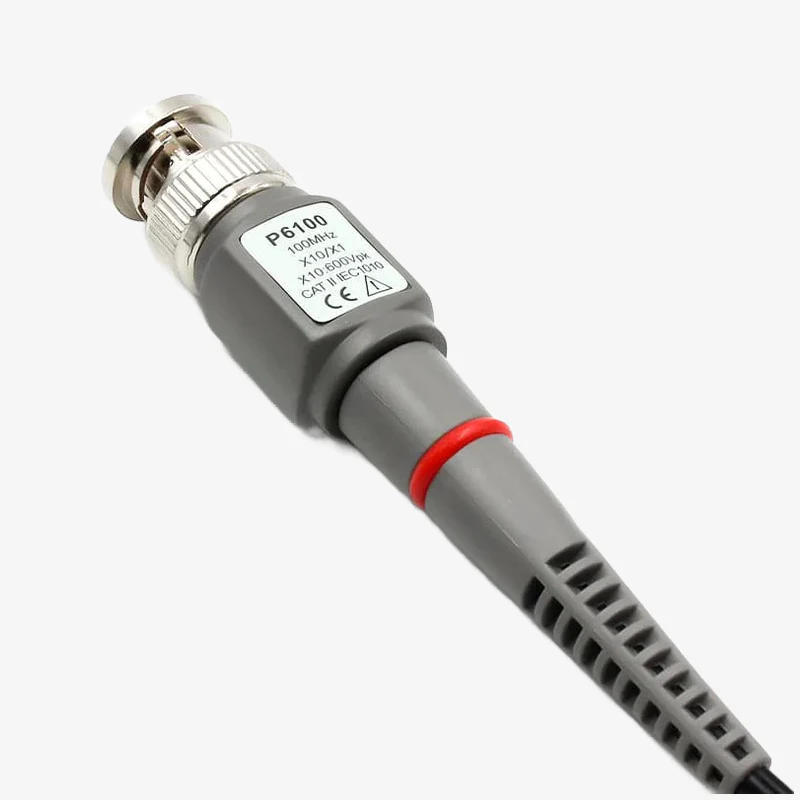

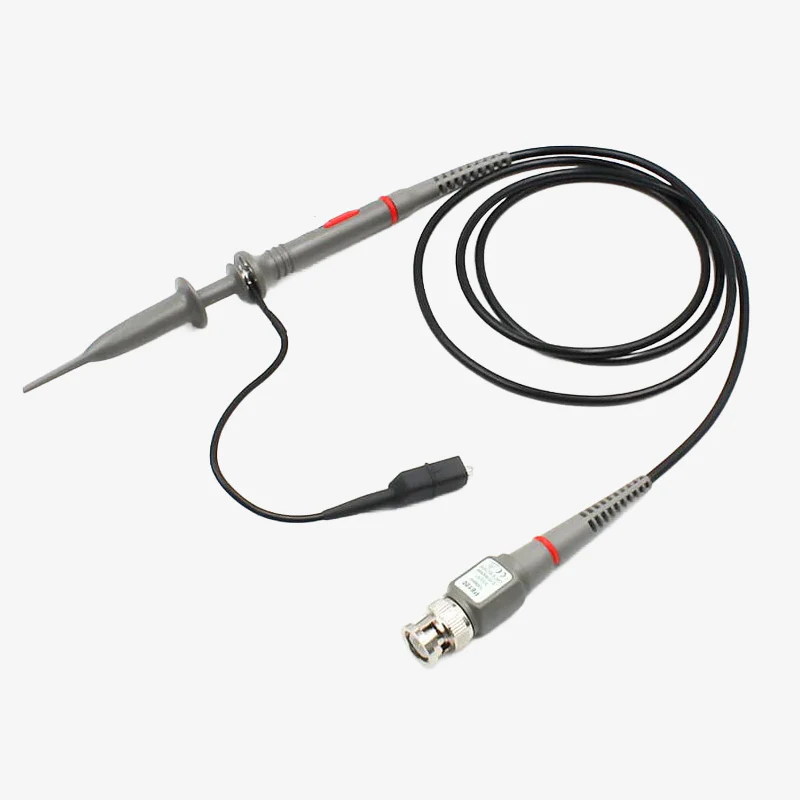

FNIRSI® P6100 Oscilloscope Probe

FNIRSI® P6100 Oscilloscope Probe is designed for accurate signal measurement and waveform analysis in oscilloscopes and electronic testing applications. Featuring switchable 1X/10X attenuation, high bandwidth performance, and adjustable compensation, it is ideal for laboratories, electronics repair, circuit debugging, and educational use.

Features:

1. Switchable 1X and 10X Attenuation Modes
2. Up to 100MHz Bandwidth Support
3. Fast Signal Response Time
4. Adjustable Compensation Range
5. High Input Resistance Design
6. Durable and Flexible Cable
7. Suitable for Most Oscilloscopes
8. Reliable Signal Measurement Performance

Specifications:

Parameter	Value
Brand	FNIRSI®
Model	P6100
Product Type	Oscilloscope Probe
Bandwidth (1X)	DC – 6MHz
Bandwidth (10X)	DC – 100MHz
Attenuation Ratio	1X / 10X
Input Resistance	1MΩ / 10MΩ
Input Capacitance (1X)	85pF – 120pF
Input Capacitance (10X)	18.5pF – 22.5pF
Compensation Range	10pF – 30pF
Rise Time	< 3.5ns
Working Voltage (1X)	< 200V DC + AC Peak
Working Voltage (10X)	< 600V DC + AC Peak
Cable Length	120 cm
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +75°C
Humidity	≤ 85% RH
Color	Grey + Black
Weight	80 g



Explore the FNIRSI Collection featuring advanced digital multimeters, oscilloscopes, signal generators, laser rangefinders, thermal cameras, USB testers, and precision electronic test equipment. Ideal for electronics engineers, technicians, makers, DIY enthusiasts, troubleshooting, circuit analysis, industrial maintenance, and professional measurement applications.

Also Check These Products:-

FNIRSI HRM-10 Battery Voltage Internal Resistance Tester

FNIRSI LCR-P1 Multifunction Transistor Capacitor Tester

FNIRSI LCR-ST1 Mini Smart Tweezer LCR SMD ESR Tester

FNIRSI DMC-100 DC AC Current Voltage Digital Clamp Multimeter

FNIRSI DMT-99 Intelligent Color Screen Digital MultiMeter

Package Includes:

1 x FNIRSI® P6100 Oscilloscope Probe
