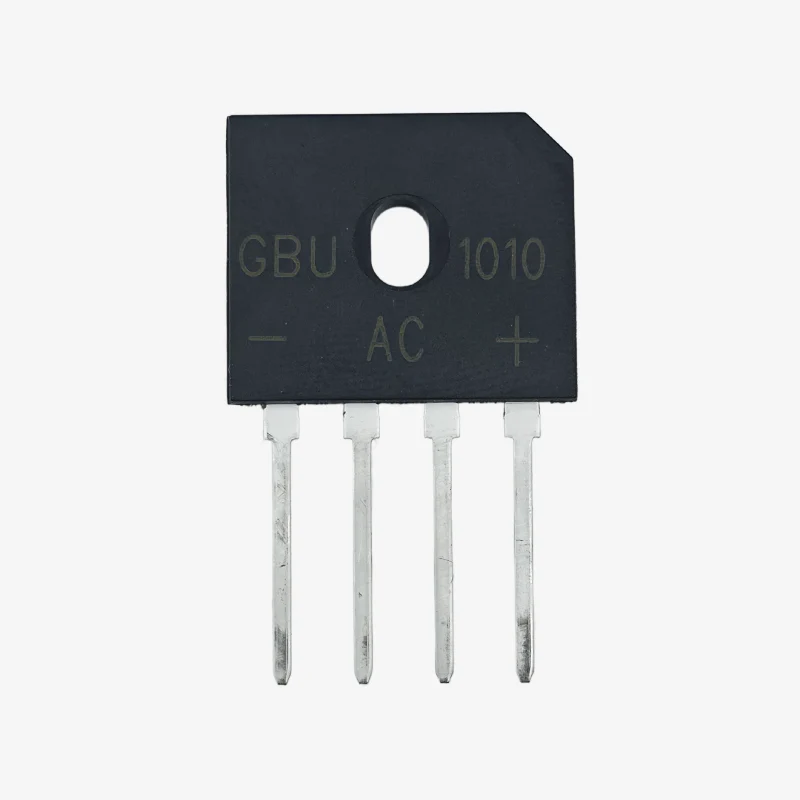

GBU1010 10A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package

The GBU1010 Bridge Rectifier is a robust through-hole rectifier designed for AC to DC conversion in medium to high-power circuits. Its glass-passivated die and solid molded case ensure strong surge handling and thermal durability. Perfect for power supplies, converters, and motor control circuits needing reliable rectification.

CLICK HERE FOR DATASHEET

Features:

1. Low forward voltage drop for better efficiency

2. High surge current capability up to 220A

3. Glass-passivated die for long-term reliability

4. UL94V-0 flame-retardant molded plastic body

5. Leaded design suitable for any mounting position

Specifications:

• Average Forward Current (IF(AV)): 10A

• Peak Repetitive Reverse Voltage (VRRM): 1000V

• Working Peak Reverse Voltage (VRWM): 1000V

• DC Blocking Voltage (VR): 1000V

• RMS Reverse Voltage (VR(RMS)): 700V

• Peak Forward Surge Current (IFSM): 220A (8.3ms half-sine wave)

• Forward Voltage (VF): 1.1V at IF = 1.0A

• Reverse Current (IR)at 25°C: 10µA

• Reverse Current (IR)at 125°C: 500µA
• Typical Junction Capacitance (Cj): 70pF

• Thermal Resistance (RθJA / RθJL): 20°C/W / 4°C/W

• Operating Junction Temperature (TJ): -65°C to +150°C

• Storage Temperature (TSTG): -65°C to +150°C

Package Includes:

1 × GBU1010 10A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package
