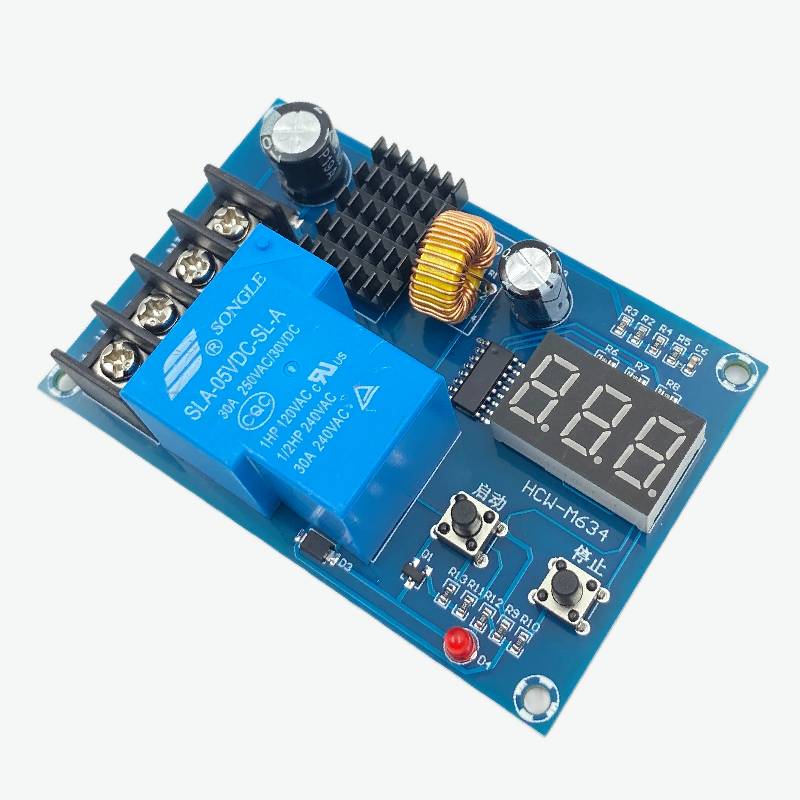

HCW-M634 6V-60V Battery Charging Control Module

HCW-M634 6V-60V Battery Charging Control Module is an intelligent battery charging control module designed to automatically manage charging for lithium-ion and lead-acid batteries. It allows users to set custom start and stop charging voltages, making it ideal for battery chargers, solar power systems, wind energy systems, UPS applications, and battery maintenance projects.

Features:

1. Supports 6V to 60V Battery Systems
2. Adjustable Start & Stop Charging Voltage
3. Compatible with Lithium-Ion and Lead-Acid Batteries
4. High Precision Digital Voltage Display
5. Automatic Charging Control via Relay
6. Easy Voltage Programming
7. Built-in Charging Protection
8. 0.1V Display and Control Resolution
9. Suitable for Solar, Wind, and Battery Charging Systems
10. Compact PCB Design for Easy Integration

Specifications:

Parameter	Value
Model	HCW-M634 (XH-M604 Compatible)
Product Type	Battery Charging Control Module
Input Voltage	DC 6V–60V
Battery Type	Lithium-Ion, Lead-Acid
Display Accuracy	0.1V
Control Accuracy	0.1V
Voltage Tolerance	±0.1V
Output Type	Direct Output (Relay Control)
Display	3-Digit Digital Voltmeter
Charging Control	Adjustable Start & Stop Voltage
Dimensions	120 × 110 × 30 mm



Also Check These Out:

24V 4A AC-DC Power Supply Module Switching Power Supply Board

6V 12V 24V 35V 5A Adjustable DC Motor Speed Regulator Controller Module

1 Channel 12V 10A Relay Module with Optocoupler

Package Includes:

1 x HCW-M634 6V-60V Battery Charging Control Module
