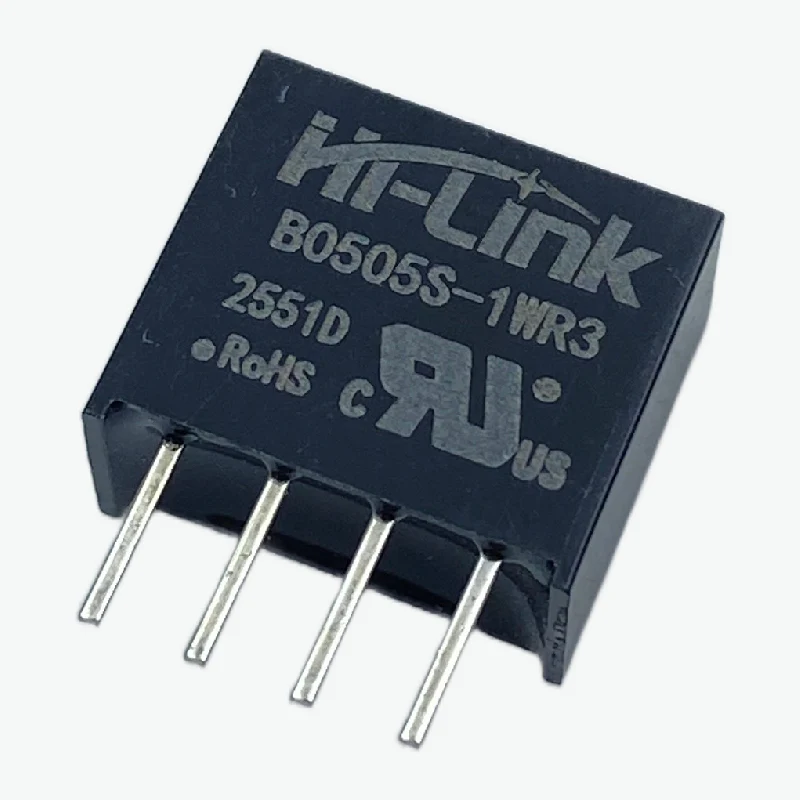

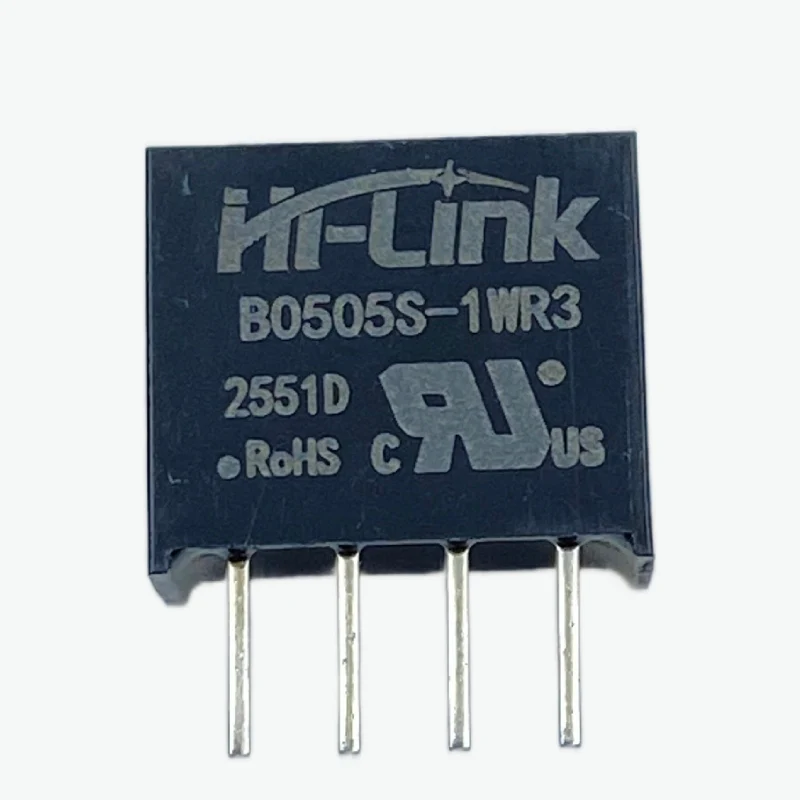

Hi-Link 5V 1W 200mA DC to DC Isolation Voltage Power Module Converter (HLK-B0505S-1WR3)

Hi-Link 5V 1W 200mA DC to DC Isolation Voltage Power Module Converter (HLK-B0505S) is designed to deliver stable 5V output with high efficiency and electrical isolation. Compact isolated DC-DC converter Ideal for embedded systems, industrial control, and signal isolation applications.

Features:

1. DC to DC Isolated Power Conversion
2. 1500VDC Isolation Voltage
3. Stable 5V Output at 200mA
4. High Efficiency up to 85%
5. Continuous Short Circuit Protection
6. Ultra-Low No-Load Current
7. Compact SIP Package Design
8. Wide Operating Temperature Range
9. Reliable and Long Life Performance

Specifications:

Parameter	Value
Brand	Hi-Link
Model	B0505S-1WR3
Product Type	Power Module Converter
Input Voltage	5V DC
Output Voltage	5V DC
Output Power	1W
Output Current	200mA
Isolation Voltage	1500V DC
Efficiency	Up to 85%
No Load Current	8mA
Operating Temperature Range	-40°C to +105°C
Package Type	SIP



If you're exploring similar DC-DC power modules, you can also consider the Hi-Link 12V to 3.3V 1W DC-DC Converter (HLK-B1203S) for compact and reliable isolated power designs used in embedded and industrial electronics.

Package Includes:

1 x Hi-Link 5V 1W 200mA DC to DC Isolation Voltage Power Module Converter (HLK-B0505S)
