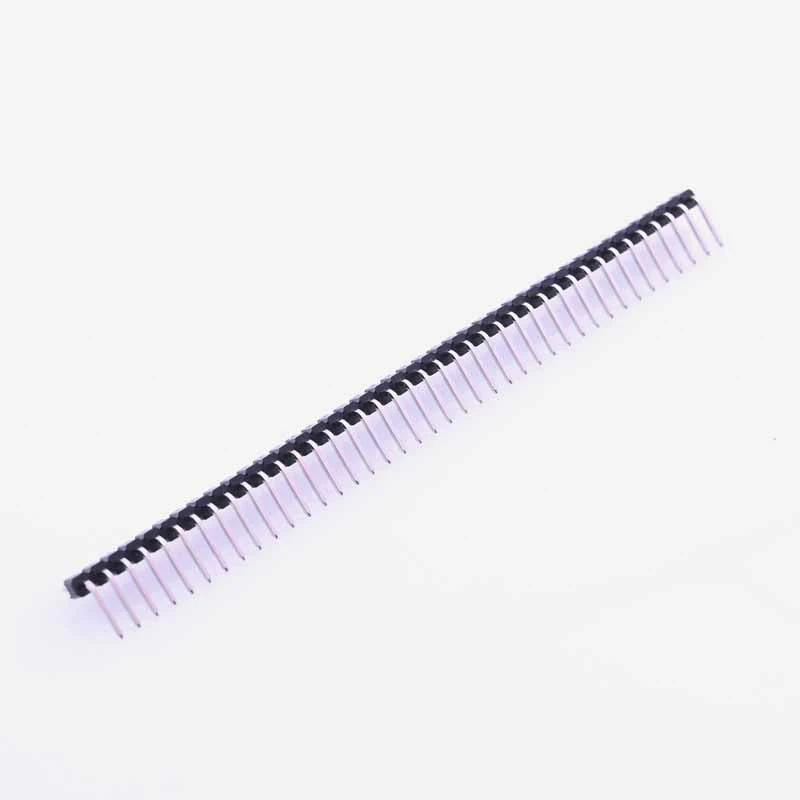

Male Header Pins (90 Degree) - Berg Strips
Male header pins (90 degree) are used on PCB or perf board to tap out connections. These pins are bent at right angle to provide easy connection for some components or connectors. They can be commonly found on development boards, test boards, evaluation boards and sensor modules. Connections to this pin can be made using Female connecting wires without need for soldering this allows user to reuse the board or module for different connections as we can do rapid prototyping by easily swapping the wires around and not worrying about the soldering the wire onto that pin. Also, you can better organize the wires in the project as you have a specified place for all the wires to be connected and then you can trace the connections behind the board as well. It is used on PCB as well to make external connections and expand the surface mount component’s legs to be connected to external components via jumper wires. The male header pin strip consists of 40 pins. It can be easily broken based on the required number and used. If you need Female Header Berg Strips you can check out here.
Specifications
- Standard 2.54mm spacing between pins
- Can be broken into smaller number of pins as per need
- Can be connected to female jumper wires
- 40 pin berg strip- male header(90 Degree)
Package Contents
1 × Male Header Pins (90 Degree) - Berg Strips
