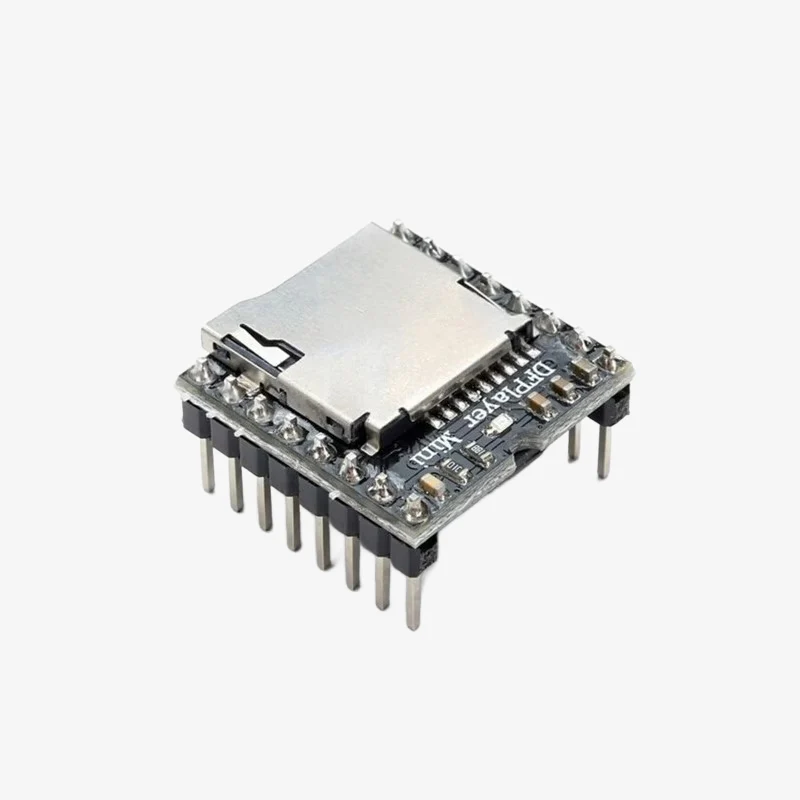

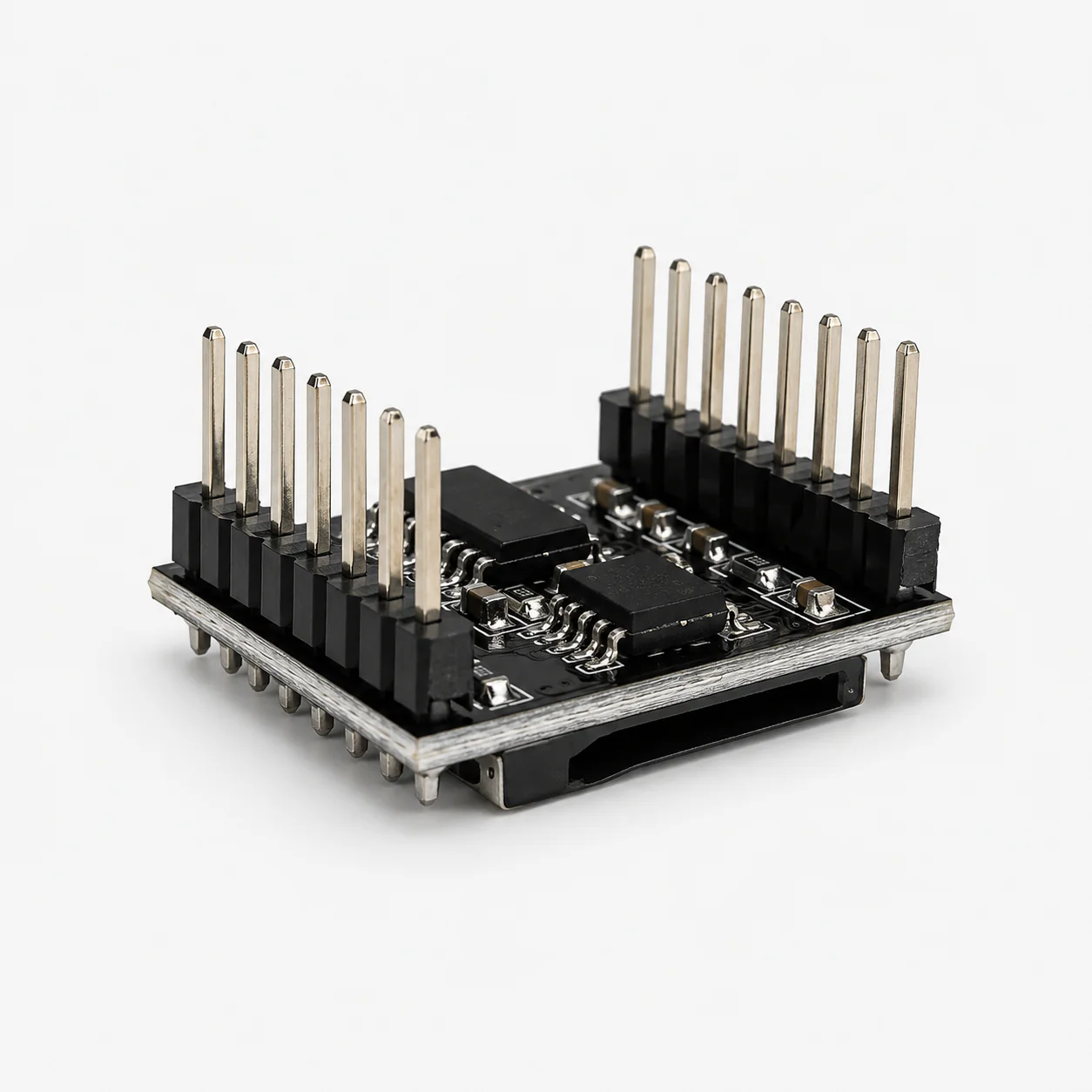

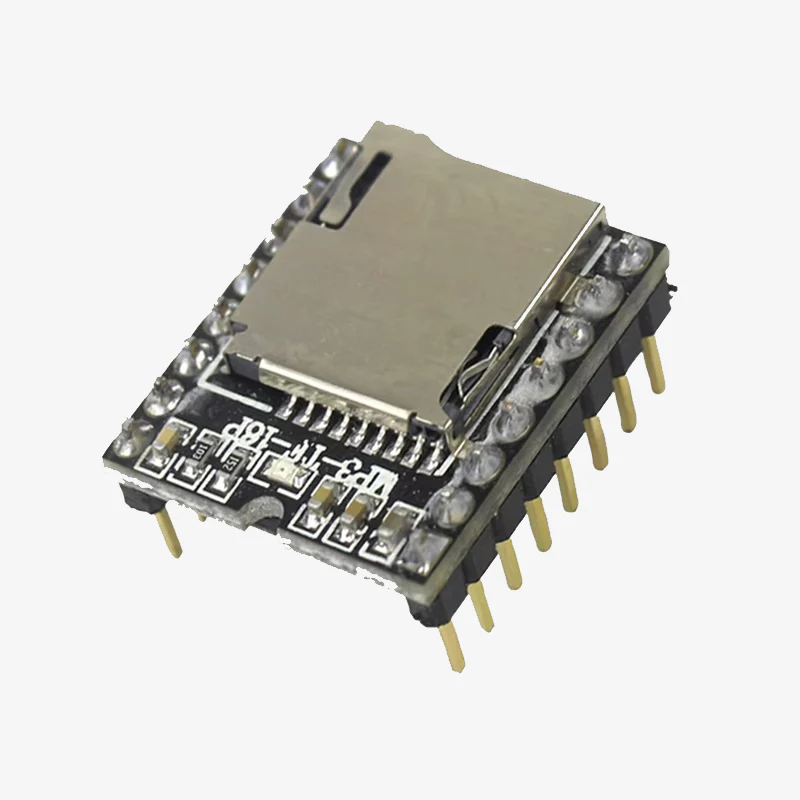

MP3-TF-16P MP3 SD Card Module with Serial Port

MP3-TF-16P MP3 SD Card Module with Serial Port is designed for embedded audio playback applications with support for TF cards, USB drives, and serial communication control. Ideal for voice prompts, DIY audio projects, smart devices, and automation systems.

Features:

1. Supports MP3 Audio Playback
2. Serial UART Communication Support
3. Supports TF Card up to 32GB
4. Supports FAT16 and FAT32 File Systems
5. 24-bit DAC Audio Output
6. Multiple Control Modes Supported
7. Compact and Lightweight Design
8. Suitable for Embedded Audio Applications

Specifications:

Parameter	Value
Model	MP3-TF-16P
Product Type	MP3 Audio Module
Operating Voltage	3.2V – 5V
DAC Resolution	24-bit
Signal-to-Noise Ratio	85 dB
Supported Sampling Rates	8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48 KHz
Dynamic Range	90 dB
Storage Support	TF Card / USB Disk
Maximum TF Card Support	32GB
File System Support	FAT16 / FAT32
Control Modes	IO / Serial / AD Key
Operating Temperature	-40°C to +70°C
Humidity Range	5% – 95%
Length	21 mm
Width	21 mm
Weight	5 g

Also Check These Out:-

DY-SV 5W Voice Module WAV MP3 Audio Playback Board with Serial Control

VS1053 MP3 Recording Development Board Module for Arduino Uno

TF Card U Disk MP3 Format Decoder Board Module Audio Player

Package Includes:

1 x MP3-TF-16P SD Card Module with Serial Port
