ODROID-C5 with DDR4 4GByte RAM
ODROID-C5 with DDR4 4GByte RAM is a compact and powerful single-board computer powered by the Amlogic S905X5M processor. Featuring a Quad-Core Cortex-A55 CPU, ARM G310 V2 GPU, high-speed DDR4 memory, and Gigabit Ethernet connectivity, it is ideal for media centers, Linux development, embedded systems, networking applications, and edge computing projects.
ODROID-C5 with DDR4 4GByte RAM Datasheet
Features:
- Amlogic S905X5M Quad-Core Processor
- Quad-Core Cortex-A55 up to 2.5GHz
- ARM G310 V2 GPU at 850MHz
- 4GB DDR4 High-Speed Memory
- High-Speed eMMC HS400 Support
- Gigabit Ethernet Connectivity
- HDMI 2.0 with 4K@60Hz Support
- 40-Pin GPIO Expansion Header
- Low Power Consumption Design
- Compact Form Factor

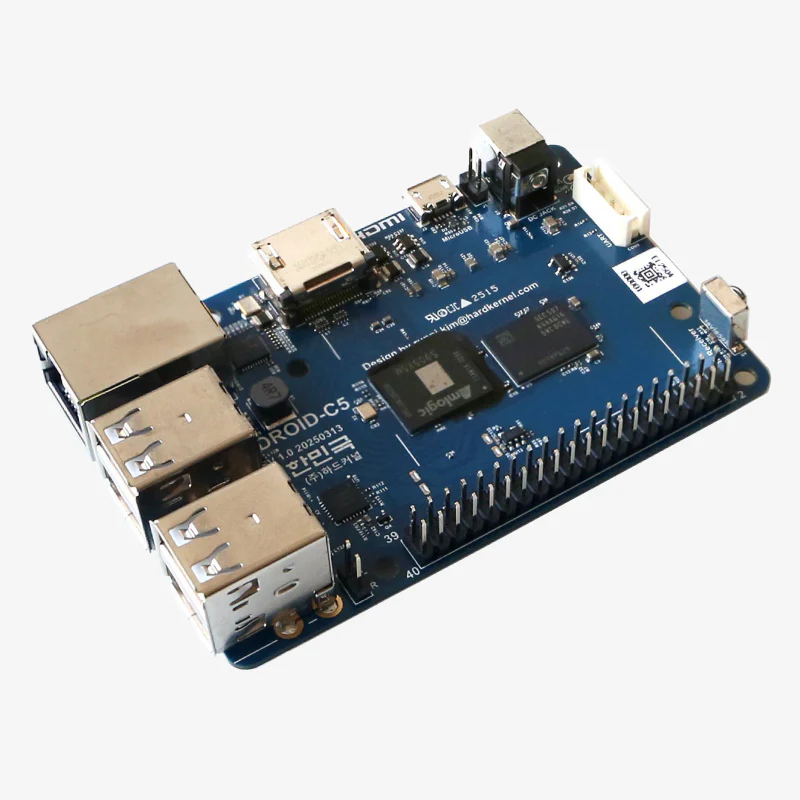

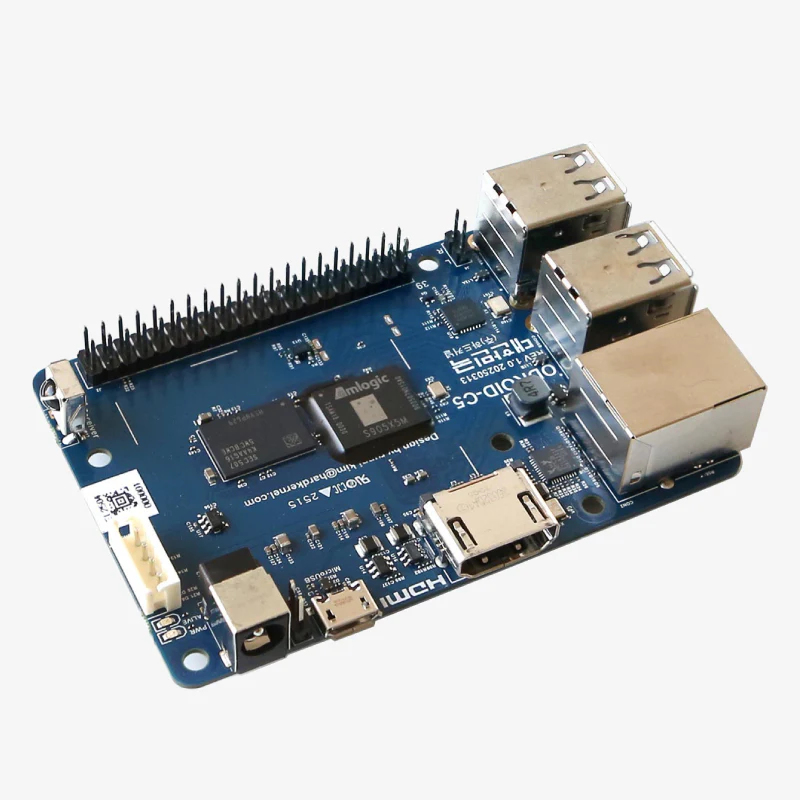

Board Details:
- A – CPU (Amlogic S905X5M): Quad-Core Cortex-A55 Processor running up to 2.5GHz
- B – DDR4 Memory: 4GB High-Speed DDR4 RAM
- C – USB 2.0 Host Ports: 4 × USB 2.0 interfaces for peripherals and accessories
- D – RJ45 Ethernet Port: Gigabit Ethernet connectivity (10/100/1000 Mbps)
- E – HDMI 2.0 Port: Display output supporting up to 4K@60Hz resolution
- F – Micro USB 2.0 OTG Port: USB device and host mode interface
- G – DC Power Jack: Main power input connector (5.5mm outer, 2.1mm inner diameter)
- H – System LED Indicators: Power and system activity status indicators
- I – UART Console Port: Serial communication and system debugging interface
- J – IR Receiver: Infrared remote control input
- K – 40-Pin GPIO Header: Expansion interface for sensors, modules, and peripherals
- L – Stereo Audio Output: 2-pin analog audio output connection
- M – eMMC Module Socket: High-speed HS400 eMMC storage interface
- N – Micro SD Slot: Expandable storage support via microSD card
- O – Alternative Power Input: 2-pin auxiliary power connector for board power supply
Specifications:
| Parameter | Value |
|---|---|
| Brand | Hardkernel |
| Model | ODROID-C5 |
| Product Type | Single Board Computer |
| Processor | Amlogic S905X5M |
| CPU | Quad-Core ARM Cortex-A55 |
| CPU Frequency | Up to 2.5GHz |
| GPU | ARM G310 V2 |
| GPU Frequency | 850MHz |
| RAM | 4GB DDR4 |
| Memory Bus Width | 32-bit |
| Memory Data Rate | 3200 MT/s |
| Storage Support | MicroSD Card, eMMC Module |
| eMMC Interface | HS400 |
| MicroSD Support | UHS-I SDR104 |
| Ethernet | Gigabit RJ45 (10/100/1000 Mbps) |
| USB Host Ports | 4 × USB 2.0 |
| USB OTG | 1 × Micro USB OTG |
| Video Output | HDMI 2.0 up to 4K@60Hz |
| Audio Output | HDMI Digital Audio, Analog Stereo Line-Out |
| GPIO Header | 40-Pin |
| UART Console | 921600bps Debug Serial Console |
| GPIO Logic Level | 3.1V |
| Maximum GPIO Input Voltage | 3.4V |
| Power Input Voltage | 7.5V – 15.5V DC |
| Recommended Power Supply | 12V / 2A |
| Idle Power Consumption | ≈ 1W |
| CPU Stress Power Consumption | ≈ 2.5W |
| Power Off Consumption | ≈ 0.22W |
| Dimensions | 85 × 56 × 22 mm |
| Weight | 42 g |
Also Check This Products:-
ODROID-N2+ with 4GByte RAM
ODROID-M1S with 4GByte RAM with US plug
ODROID-N2+ with 2GByte RAM
Package Includes:
1 x ODROID-C5 with DDR4 4GByte RAM
