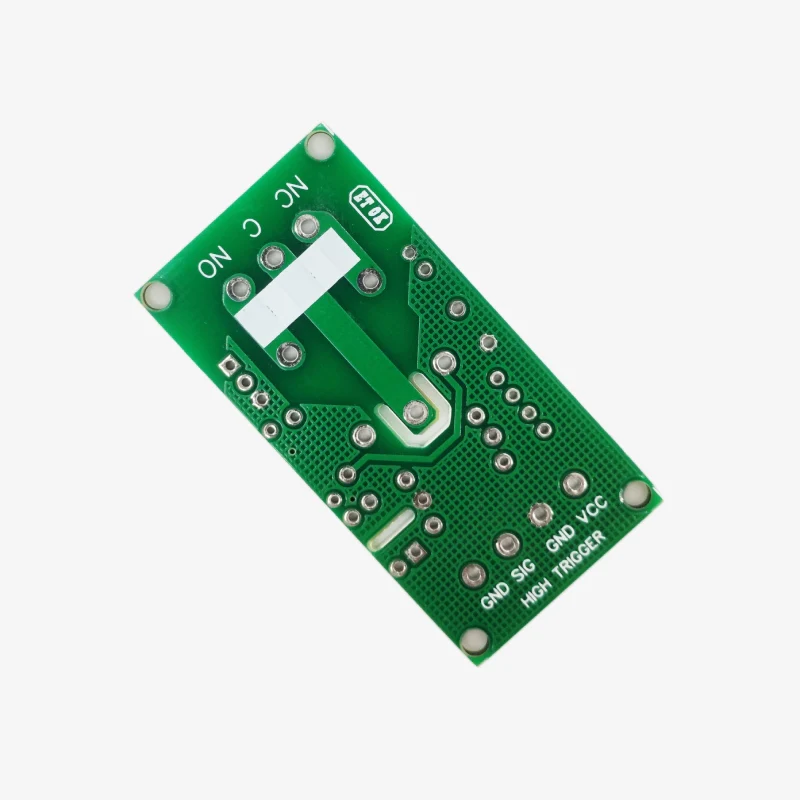

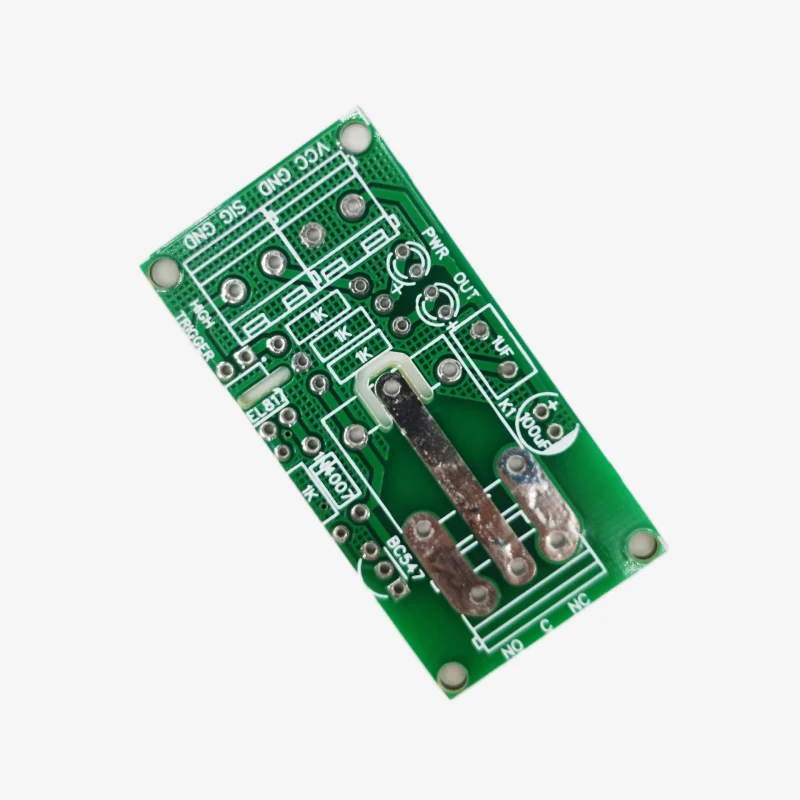

PCB For 1 Channel Relay Module with Optocoupler Input
This is a PCB board designed for 1 Channel Relay Module with Optocoupler Input.
Specifications:
- Size-56x29mm
- Input signal type - Active high
- All components are Through hole type
- Optocoupler - EL817 OR PC817 4 PIN
- Use 1K resistor for 5 voltage relay application (2.2k for 12V)
- Capacitor 1 -1uF or 100NF ceramic capacitor with 5mm pitch
- Capacitor 2 -100uF 25V electrolytic capacitor with 2.54mm pitch
- LED size -3mm
- Transistor BC547 or BC546 or BC548
- Terminal block connector -xy126 or zb126 or xy128 or zb128 with 5mm pitch
- Relay- Normal sugar cube
