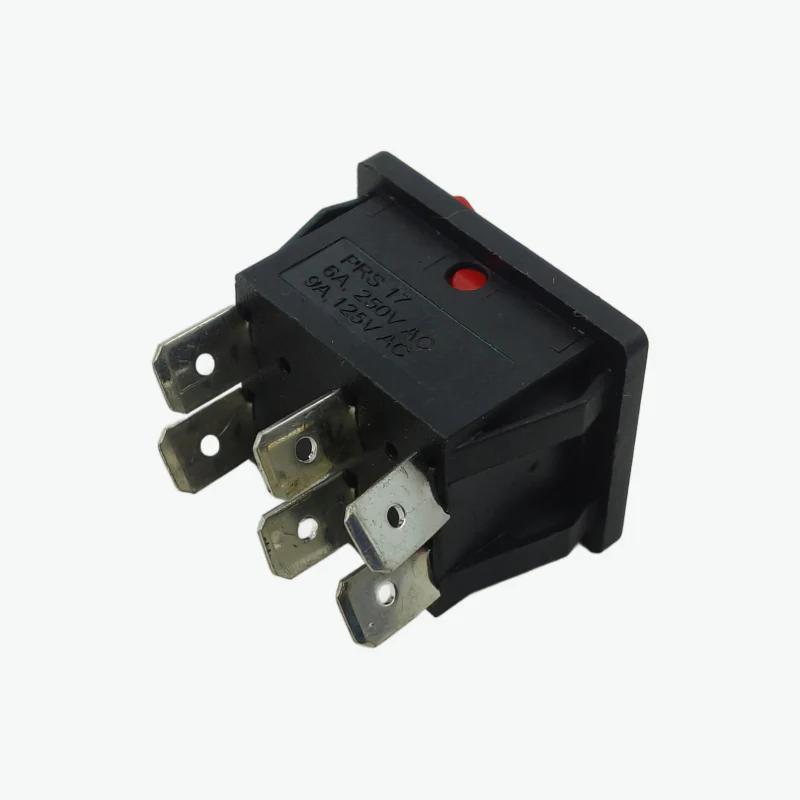

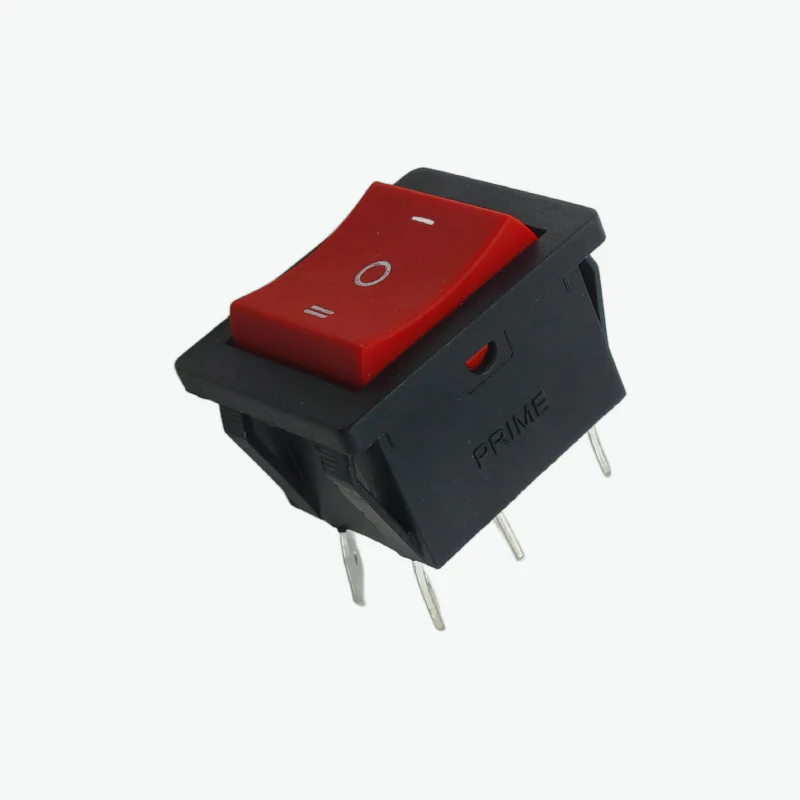

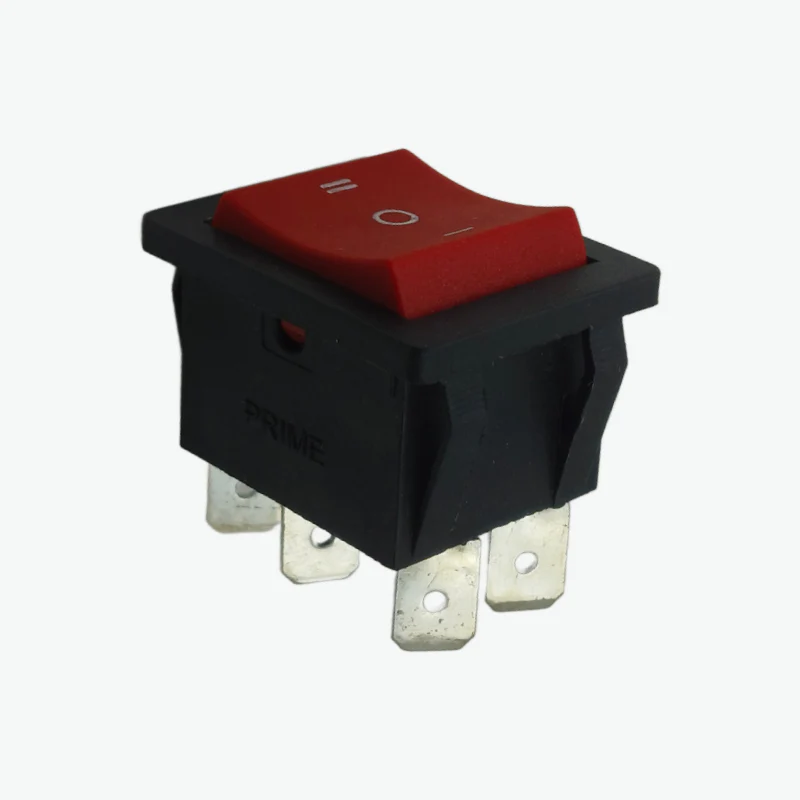

6 Pin DPDT Rocker Switch - 6A 250V AC
The DPDT Rocker Switch is designed for reliable high-current AC applications in industrial and electronic equipment. Its double-pole double-throw (DPDT) functionality allows control of two separate circuits with two switching positions. With a compact rocker design and six-pin configuration, it’s ideal for panel mounting and versatile wiring setups.
Features:
- Rated for 6A at 250V AC, suitable for high-current applications
- DPDT operation allows control of two circuits with two positions
- 6-pin configuration ensures secure and flexible wiring
- Compact miniature rocker design for easy panel mounting
- Push-on and solder terminals for quick installation
- Durable construction for long-lasting performance
Specifications:
- Model: Miniature DPDT Rocker Switch – 6-Pin
- Switch Type: DPDT Rocker
- Number of Pins: 6
- Rated Voltage: 250V AC
- Rated Current: 6A
- Switch Operation: ON/OFF or Two-Position DPDT
- Panel Cut-Out: 22mm × 30mm
- Bezel Size: 25mm × 33mm
- Terminals: Push-On and Solder
- Body Material: Plastic and Metal
- Operating Temperature Range: -20°C to +70°C
Package Includes:
1 × 6-Pin DPDT Rocker Switch – 6A 250V AC
