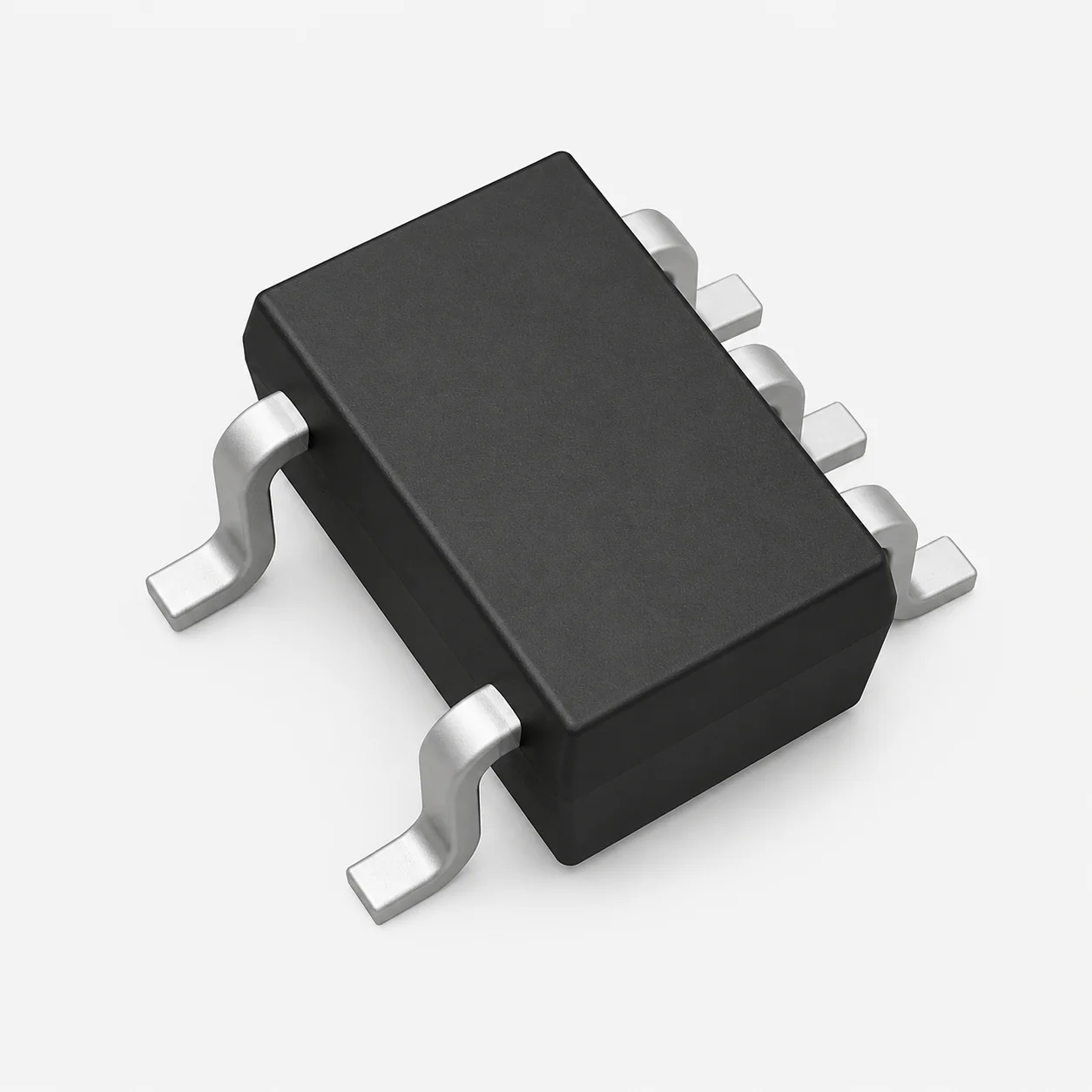

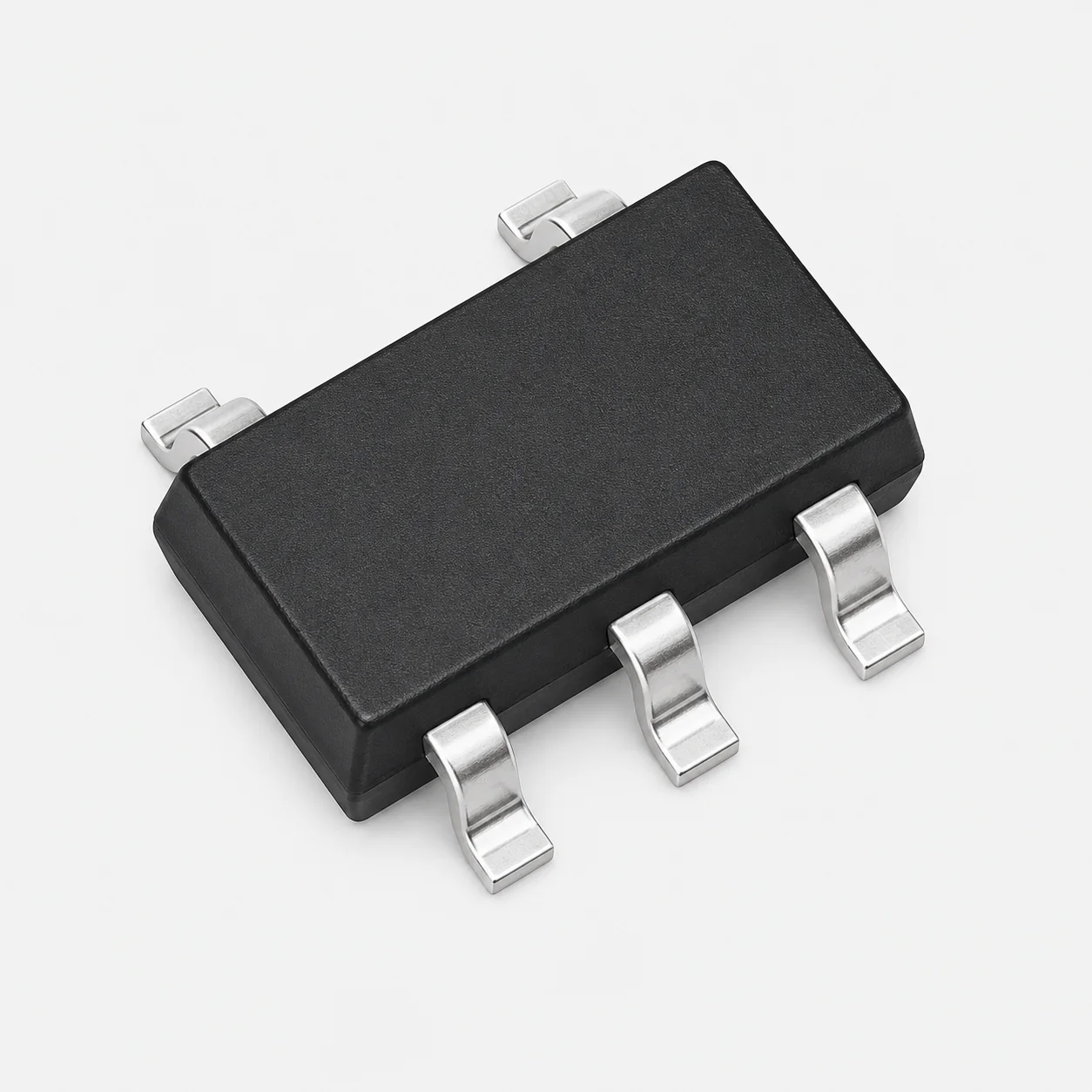

SN74LVC1GU04DBVT 74LVC1G04 Logic Single Inverter IC - SOT-23 Pakage

SN74LVC1GU04DBVT 74LVC1G04 Logic Single Inverter IC - SOT-23 Package is a high-speed, low-power single unbuffered inverter designed for digital logic applications requiring reliable signal inversion and fast switching performance. Operating from a wide 1.65V to 5.5V supply range, it features CMOS-compatible inputs, overvoltage-tolerant input pins, and low propagation delay, making it ideal for signal conditioning, oscillator circuits, embedded systems, industrial control, and portable electronics.

SN74LVC1GU04DBVT 74LVC1G04 Logic Single Inverter IC - SOT-23 Pakage Datasheet

Features:

1. Single Unbuffered Inverter Gate
2. Wide Operating Voltage Range
3. Supports 5V Logic Systems
4. High-Speed Switching Performance
5. Low Power Consumption
6. Overvoltage-Tolerant Inputs
7. Unbuffered Output Design
8. High Output Drive Capability
9. Live Insertion & Partial Power-Down Support
10. ESD Protected Inputs and Outputs
11. Suitable for Oscillator, Logic, and Signal Processing Applications

Specifications:

Parameter	Value
Product Type	Logic Inverter IC
Part Number	SN74LVC1GU04DBVT
Logic Function	Single Inverter
Package	SOT-23-5
Supply Voltage	1.65V–5.5V
Input Voltage	0V–5.5V
Logic Family	LVC CMOS
Propagation Delay	3.7ns (Max @ 3.3V)
Output Drive	±24mA @ 3.3V
Input Capacitance	7pF (Typ.)
Operating Temperature	-40°C to +125°C

Pin Configuration:

Pin	Name	Description
1	NC	No Connection
2	A	Input
3	GND	Ground
4	Y	Inverted Output
5	VCC	Supply Voltage
