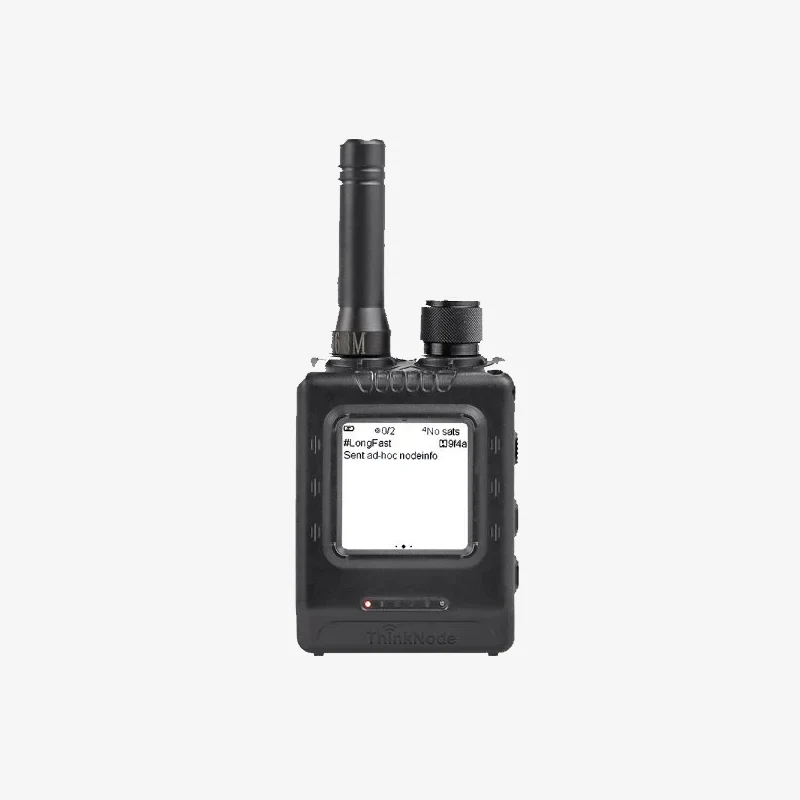

ThinkNode 915 MHz M1-LoRa Meshtastic Communication Device With 1.54" EPD Screen

ThinkNode 915 MHz M1 LoRa Meshtastic Communication Device with 1.54" EPD Screen is designed for long-range off-grid communication using Meshtastic firmware and LoRa technology. Ideal for outdoor communication, emergency networking, IoT applications, and low-power wireless messaging systems.

Features:

1. Nordic nRF52840 Main Processor
2. Fully Compatible with Meshtastic Firmware
3. 1.54" Electronic Paper Display (EPD)
4. Built-in SX1262 LoRa Module
5. Bluetooth 5.0 Connectivity
6. Integrated GPS Positioning Support
7. Ultra Low Power Consumption
8. External RP-SMA Antenna Interface

Specifications:

Parameter	Value
Brand	ThinkNode
Model	M1
Processor	Nordic nRF52840
CPU	ARM Cortex-M4 @ 64MHz
RAM	256KB
Flash Memory	3MB
Firmware	Meshtastic Compatible
Display Size	1.54 inch
Display Type	E-Paper (EPD)
Resolution	200 × 200
Display Driver	SSD1681
Refresh Time	2s
Bluetooth	BLE + Bluetooth 5
LoRa Chip	SX1262
LoRa Frequency	US915 / EU868
LoRa Output Power	+22 dBm
GPS Support	GPS / GLONASS / BeiDou / QZSS
Interface	USB Type-C, RP-SMA
Battery Capacity	1200mAh
Power Input	5V / 1A
Max Working Current	~85mA
Low Power Consumption	~5.6µA
Operating Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Dimensions	82 × 51.6 × 26.3 mm
Material	ABS Plastic
Weight	81 g



Package Includes:

1 x ThinkNode 915 MHz M1 LoRa Meshtastic Communication Device with 1.54" EPD Screen
