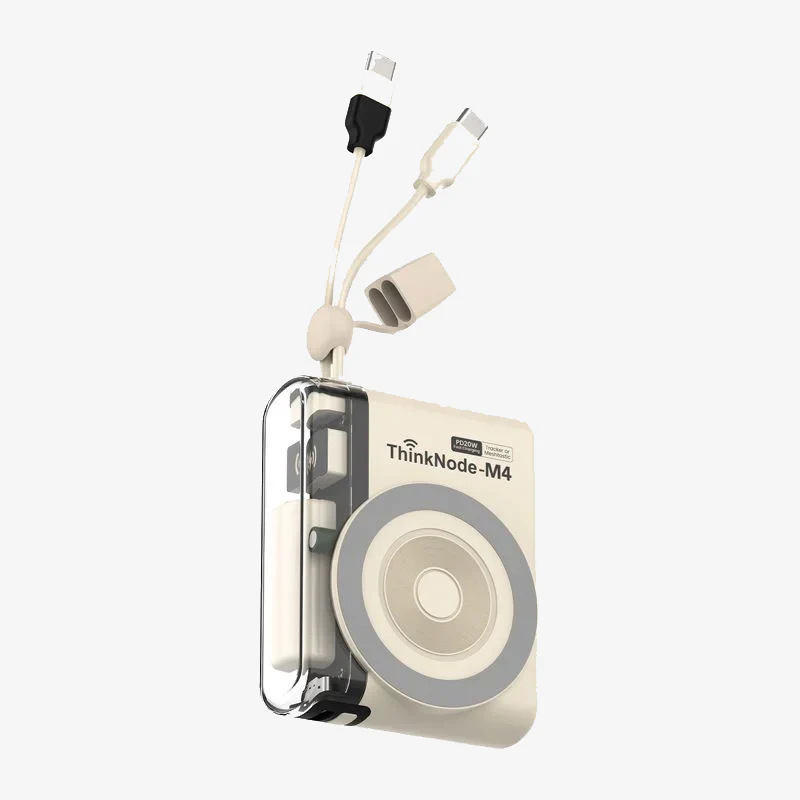

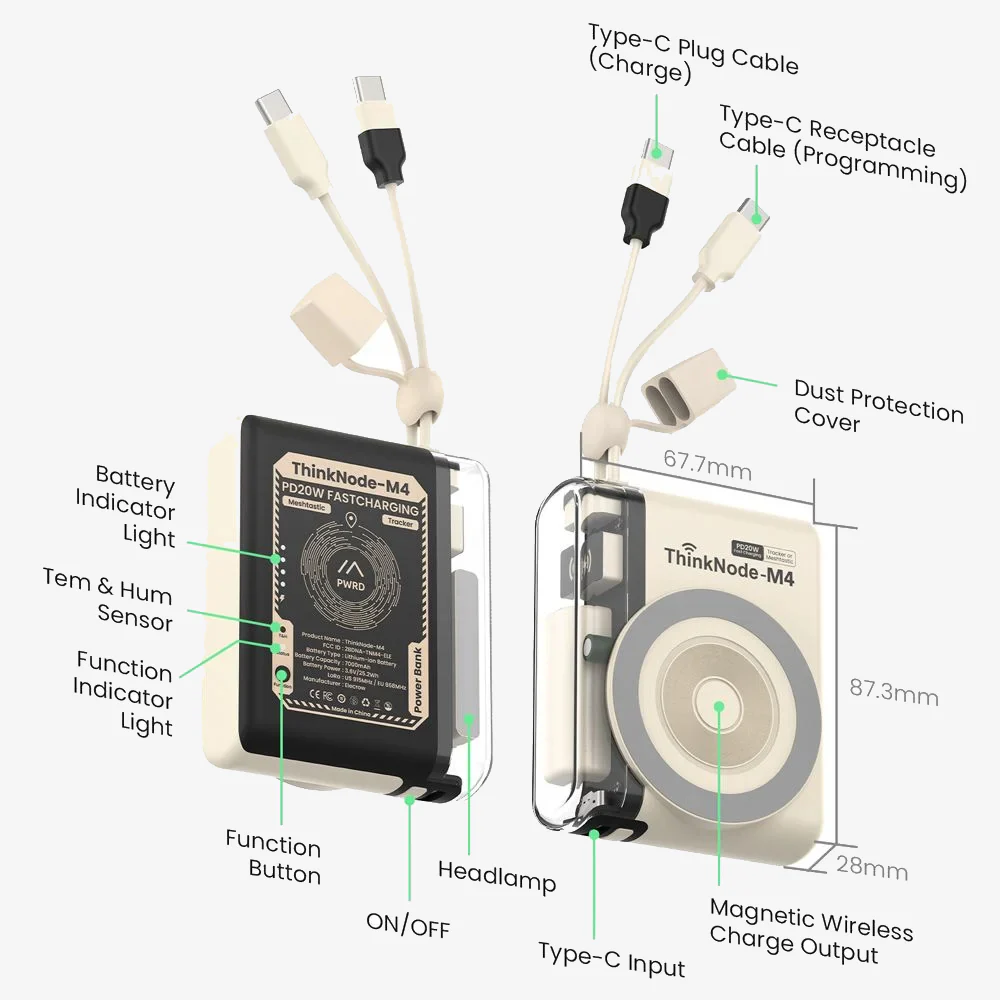

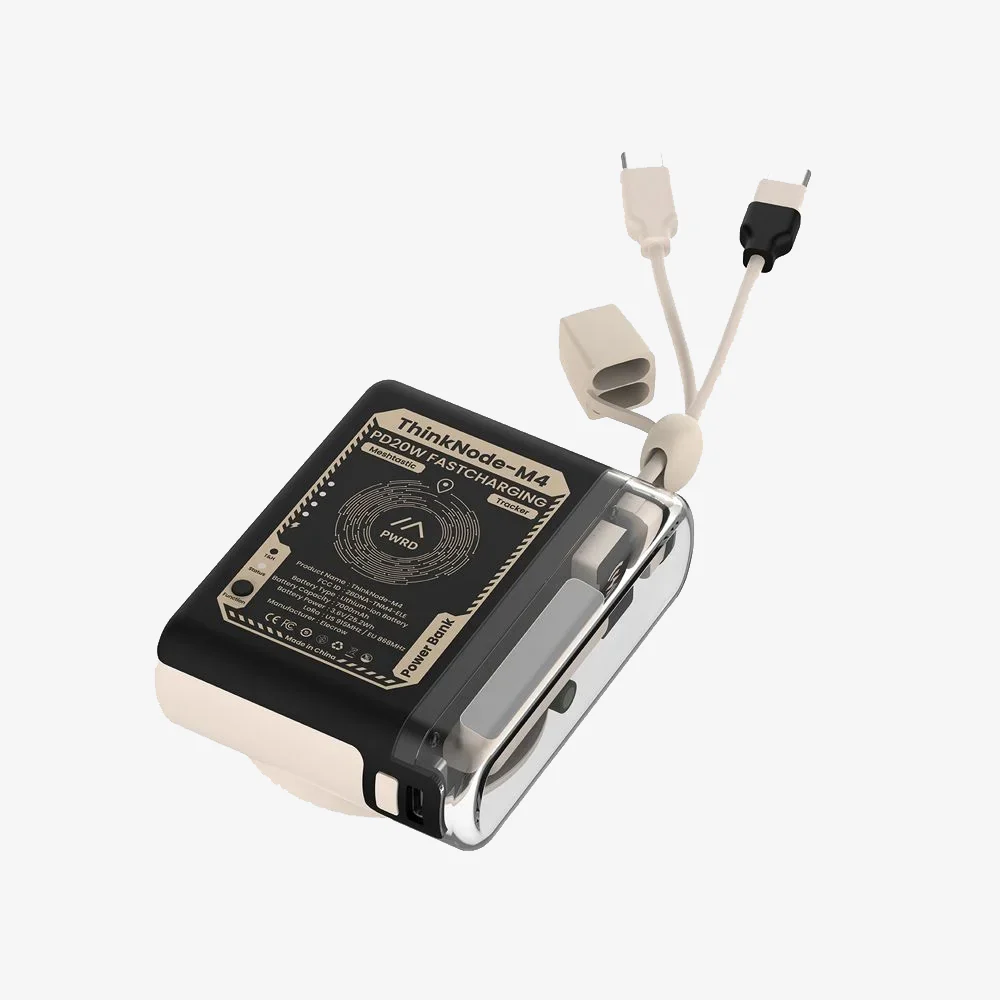

ThinkNode M4 Power Bank - LoRa Device with Meshtastic Function Powered By nRF52840

ThinkNode M4 Power Bank LoRa Device with LoRa Tracker Function is designed for portable power delivery and long-range LoRa communication with integrated GPS tracking and wireless charging support. Ideal for outdoor communication, emergency tracking, IoT applications, and mobile power backup solutions.

Features:

1. Integrated LoRa Communication and Tracking
2. 7000mAh Rechargeable Power Bank
3. Supports Meshtastic Firmware
4. Fast Charging and PD3.1 Support
5. Wireless Charging up to 15W
6. Built-in GPS and Multi-GNSS Positioning
7. Bluetooth 5.4 Connectivity
8. Emergency SOS and LED Light Function

Specifications:

Parameter	Value
Brand	ThinkNode
Model	M4
Main Processor	nRF52840-QIAA
LoRa Chip	Semtech LR1110
Firmware	Meshtastic Compatible
RAM	256KB
Flash Memory	3MB
LoRa Frequency	US915 / EU868
Bluetooth	Bluetooth 5.4 + BLE
GPS Support	GPS / BeiDou / GLONASS / QZSS
Battery Type	18650 Lithium-ion
Battery Capacity	7000mAh
Rated Capacity	3800mAh (5V/3A)
Battery Power	25.2Wh
Conversion Efficiency	>74%
Type-C Input	5V/3A, 9V/2A, 12V/1.5A
Type-C Output	5V/3A, 9V/2A, 12V/1.5A
Wireless Charging Output	5W / 7.5W / 10W / 15W
Charging Time	3 – 4 Hours
Fast Charging Protocols	QC2.0, QC3.0, PD3.1, SCP, FCP, AFC
Sensors	Temperature, Humidity,
Power Consumption	Static: 45mA, Sleep: 55µA
Max Current	TX: 175mA, RX: 54mA
Storage Temperature	-20°C to +45°C
Dimensions	87.3 × 67.7 × 28 mm
Enclosure Material	ABS + PC + TPE
Weight	190 g



Package Includes:

1 x ThinkNode M4 Power Bank LoRa Device with LoRa Tracker Function
