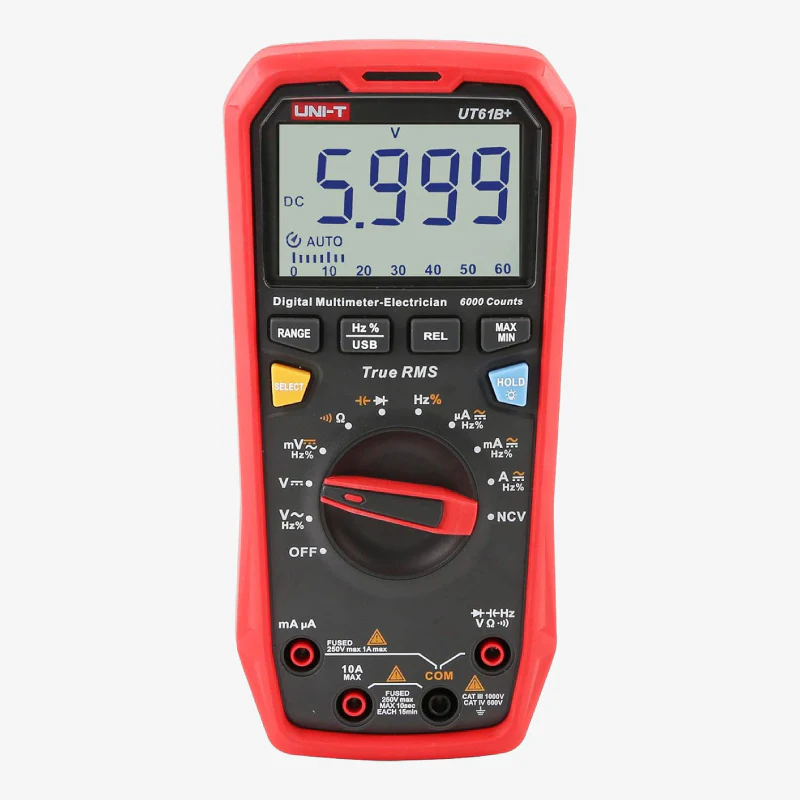

UNI-T UT61B+ Digital Multimeter True RMS AC/DC Voltage Current Resistance Capacitance Tester

UNI-T UT61B+ Digital Multimeter True RMS AC/DC Voltage Current Resistance Capacitance Tester is a professional True RMS digital multimeter designed for accurate electrical measurements in industrial maintenance, electronics troubleshooting, laboratory testing, and field service applications. Featuring a 6000-count display, CAT III 1000V/CAT IV 600V safety rating, USB communication, NCV detection, and comprehensive measurement functions, it provides reliable performance for both professionals and enthusiasts.

UNI-T UT61B+ Digital Multimeter Current Resistance Capacitance Tester Datasheet

Features:

1. True RMS Measurement Technology
2. 6000 Count High-Resolution Display
3. Measures up to 1000V AC/DC
4. CAT III 1000V / CAT IV 600V Safety Rating
5. Auto and Manual Range Selection
6. USB Data Communication Support
7. Maximum and Minimum Value Recording
8. Relative Measurement Mode
9. Analog Bar Graph Display
10. Non-Contact Voltage (NCV) Detection
11. Diode and Continuity Testing
12. Frequency and Duty Cycle Measurement
13. High Voltage Alarm Function
14. Auto Power Off Function
15. LCD Backlight Display

Specifications:

Parameter	Value
Brand	UNI-T
Model	UT61B+
Product Type	True RMS Digital Multimeter
Display Count	6000
Safety Rating	CAT III 1000V / CAT IV 600V
AC Voltage Range	1000V ± (1% + 3)
DC Voltage Range	1000V ± (0.5% + 3)
AC Current Range	10A ± (1.2% + 5)
DC Current Range	10A ± (1% + 2)
Resistance Range	60MΩ ± (1% + 2)
Capacitance Range	60mF ± (3% + 5)
Frequency Range	10MHz ± (0.1% + 4)
Duty Cycle Range	0.1% ~ 99.9%
Bandwidth	40Hz ~ 500Hz
Analog Bar Graph	31 Segments
Range Selection	Auto / Manual
Data Hold	Supported
Relative Mode	Supported
Maximum / Minimum Recording	Supported
USB Communication	Supported
NCV Detection	Supported
Diode Test	Supported
Continuity Test	Supported
Backlight Display	Supported
Low Battery Indication	Supported
High Voltage Alarm	Supported
Auto Power Off	Supported
Length	190 mm
Width	90 mm
Weight	350 g



If you are looking for more UNI-T products like Oscilloscope Multimeters visit the collection of products for your electronic projects.

Also Check These Out:-

UNI-T UT60EU Digital Multimeter 1000V AC DC Voltage Current Meter

UNI-T UT33D+ Original Palm Size Digital Multimeter

UNI-T UT33D+ Digital Palm Size Multimeter

Package Includes:

1 x UNI-T UT61B+ Digital Multimeter

1 x Test Lead Set

1 x USB Cable

1 x User Manual
