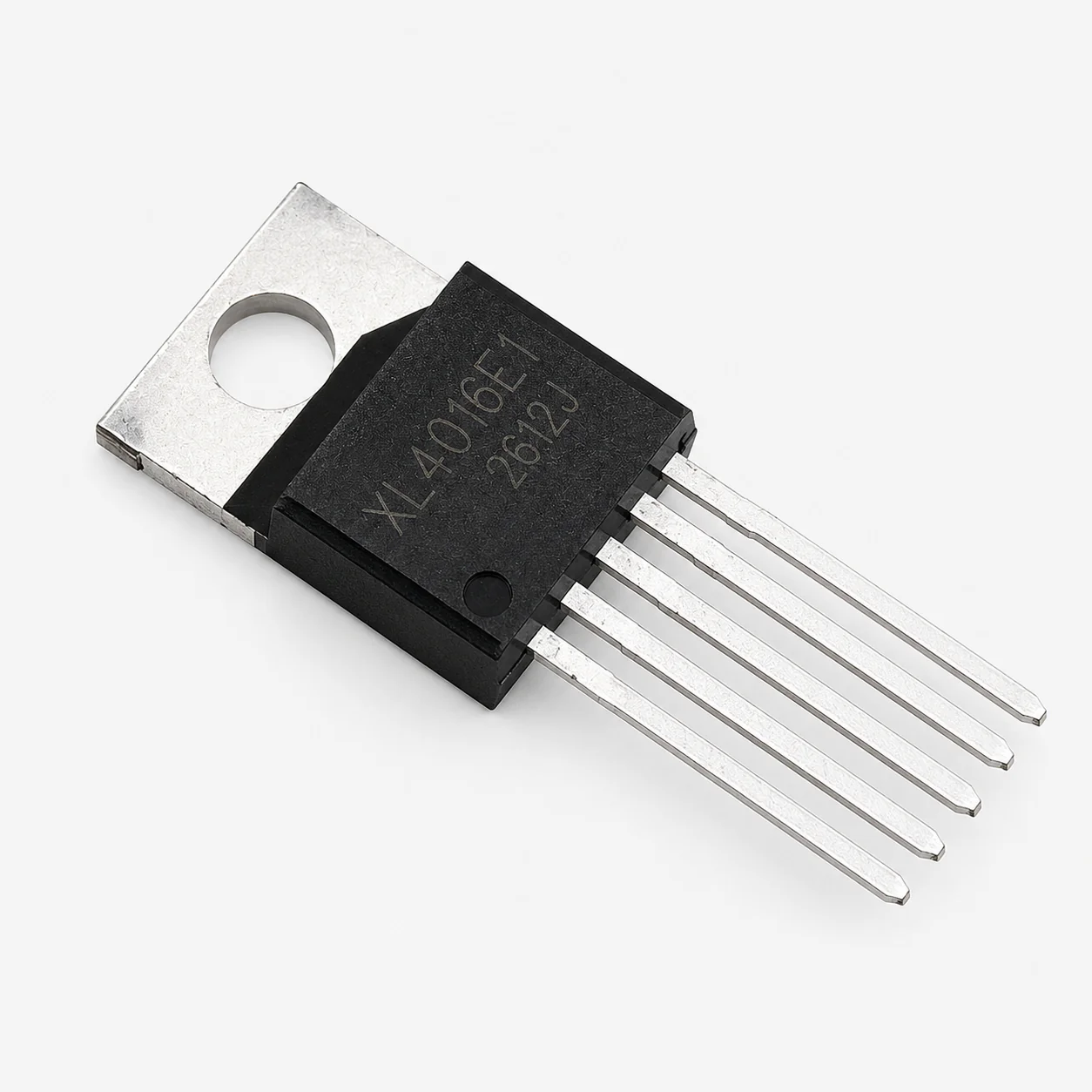

XL4016E1 12A 40V Buck DC to DC Converter IC TO-220-5L Package
XL4016E1 12A 40V Buck DC to DC Converter IC TO-220-5L Package is a high-efficiency synchronous step-down (buck) DC-DC converter IC designed for high-current power conversion applications. Developed by XL Semiconductor, it integrates a high-performance power MOSFET, PWM control circuitry, and multiple protection features to deliver stable, low-ripple output with excellent efficiency. Operating at a fixed switching frequency of 180kHz, the XL4016E1 is ideal for battery chargers, power supplies, solar controllers, LED drivers, automotive electronics, and industrial applications.
XL4016E1 12A 40V Buck DC to DC Converter IC TO-220-5L Package Datasheet
Features:
- Wide 8V to 36V Input Voltage Range
- Adjustable Output Voltage from 1.25V to 32V
- 12A Maximum Output Current
- High Efficiency up to 96%
- Fixed 180kHz Switching Frequency
- Integrated High-Performance Power MOSFET
- 100% Maximum Duty Cycle
- Low Dropout Voltage (0.3V)
- Excellent Line and Load Regulation
- Built-in Thermal Shutdown Protection
- Built-in Current Limit Protection
- Built-in Output Short Circuit Protection
- TO-220-5L Package for Efficient Heat Dissipation
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Buck DC-DC Converter IC |
| Model | XL4016E1 |
| Manufacturer | XL Semiconductor |
| Package | TO-220-5L |
| Topology | Step-Down (Buck) Converter |
| Input Voltage Range | 8V – 36V DC |
| Adjustable Output Voltage | 1.25V – 32V DC |
| Maximum Output Current | 12A |
| Switching Frequency | 180kHz |
| Maximum Efficiency | Up to 96% |
| Maximum Duty Cycle | 100% |
| Minimum Dropout Voltage | 0.3V |
| Internal MOSFET | Integrated |
| Protection Features | Thermal Shutdown, Current Limit, Output Short Circuit Protection |
Also Check These Products:-
L7805CV Linear Voltage Regulator IC (STMicroelectronics) - TO-220-3 Package
TDA2003A/UTC2003 Audio Amplifier IC (TO-220)
XL4016 Step Down Buck Converter (300W 10A Power Supply Module)
XL6009 Step Up Down Buck Boost Converter Module
Package Includes:
1 x XL4016E1 12A 40V Buck DC to DC Converter IC TO-220-5L Package
