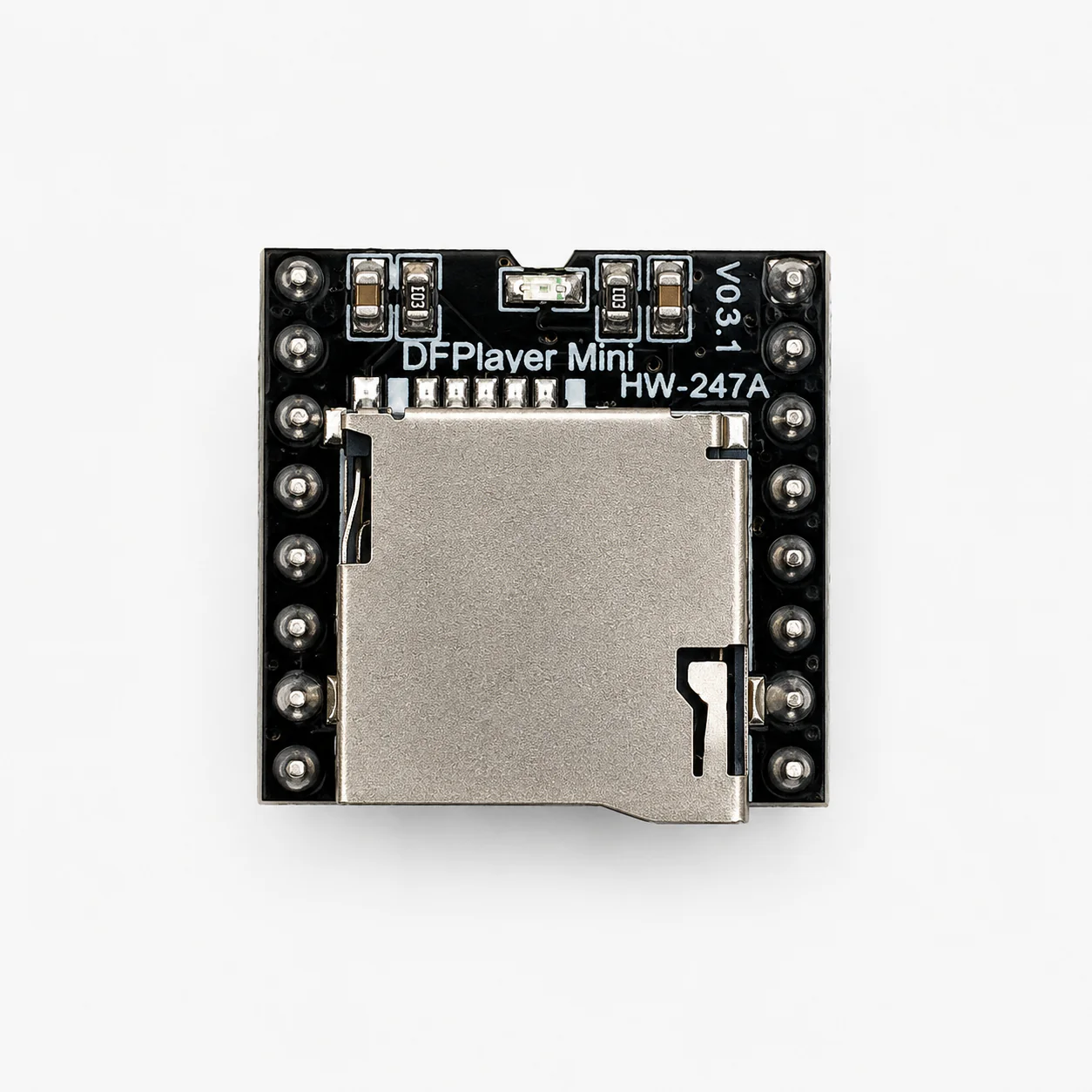

MP3-TF-16P MP3 SD Card Module with Serial Port is designed for embedded audio playback applications with support for TF cards, USB drives, and serial communication control. Ideal for voice prompts, DIY audio projects, smart devices, and automation systems.

Features:

Supports MP3 Audio Playback
Serial UART Communication Support
Supports TF Card up to 32GB
Supports FAT16 and FAT32 File Systems
24-bit DAC Audio Output
Multiple Control Modes Supported
Compact and Lightweight Design
Suitable for Embedded Audio Applications

Specifications:

Parameter	Value
Model	MP3-TF-16P
Product Type	MP3 Audio Module
Operating Voltage	3.2V – 5V
DAC Resolution	24-bit
Signal-to-Noise Ratio	85 dB
Supported Sampling Rates	8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48 KHz
Dynamic Range	90 dB
Storage Support	TF Card / USB Disk
Maximum TF Card Support	32GB
File System Support	FAT16 / FAT32
Control Modes	IO / Serial / AD Key
Operating Temperature	-40°C to +70°C
Humidity Range	5% – 95%
Length	21 mm
Width	21 mm
Weight	5 g

Also Check These Out:-

DY-SV 5W Voice Module WAV MP3 Audio Playback Board with Serial Control

VS1053 MP3 Recording Development Board Module for Arduino Uno

TF Card U Disk MP3 Format Decoder Board Module Audio Player

Package Includes:

1 x MP3-TF-16P SD Card Module with Serial Port

Price

Collections

Storage Modules

AT24C256 I2C Serial Interface Port EEPROM Memory Module

Sandisk Ultra 16GB Micro SD Card - (Class 10)

Mini Micro SD Card Reader Module

CH376S USB U Disk Read/Write Access Module

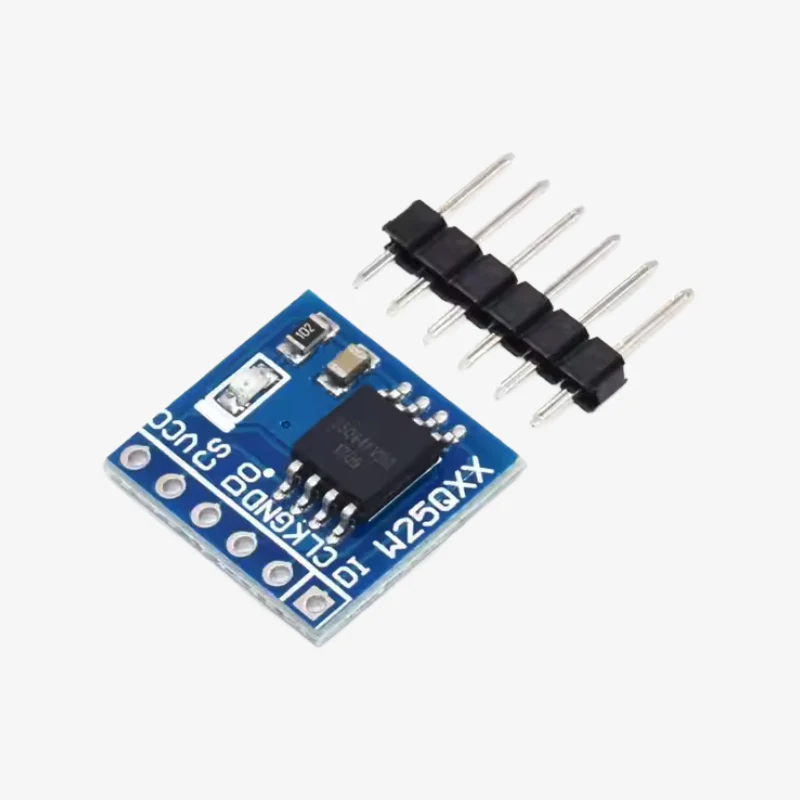

W25Q64 64Mbit 8MByte Data Flash Module SPI Interface

SanDisk Ultra Micro SD 32GB UHS-I, 120MB/s R , Class 10 Memory Card

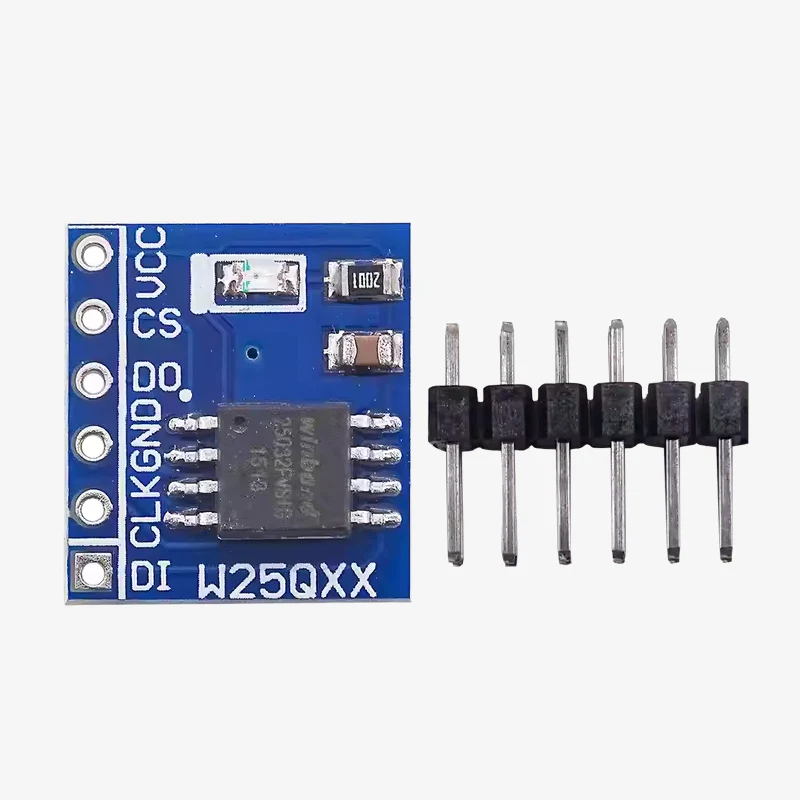

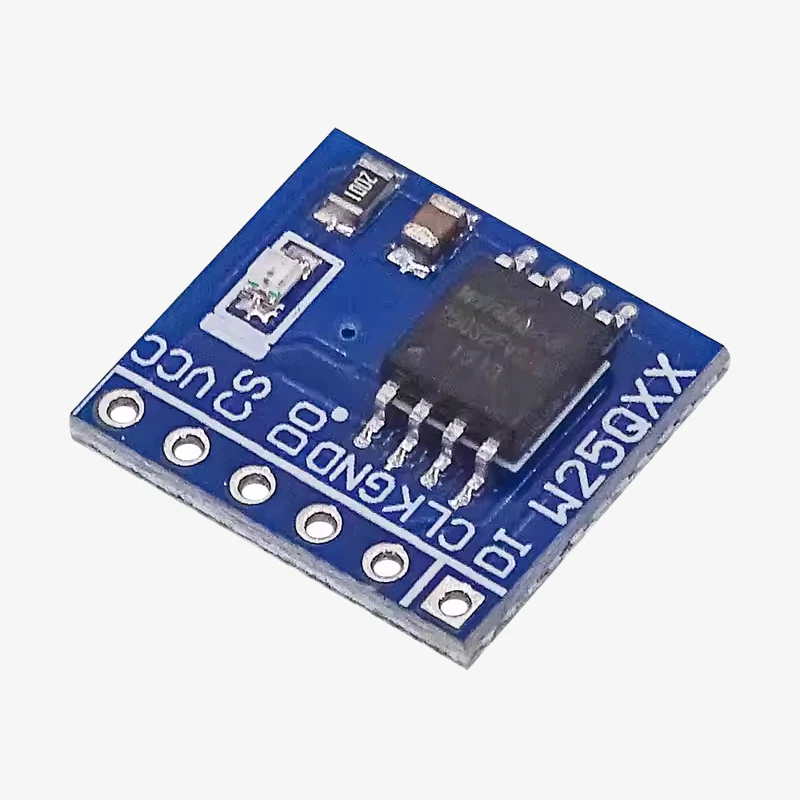

W25Q128 Large Capacity Flash Storage Module
